Ferrari 348 tb/ts — Central Part Structures (diagram 103)

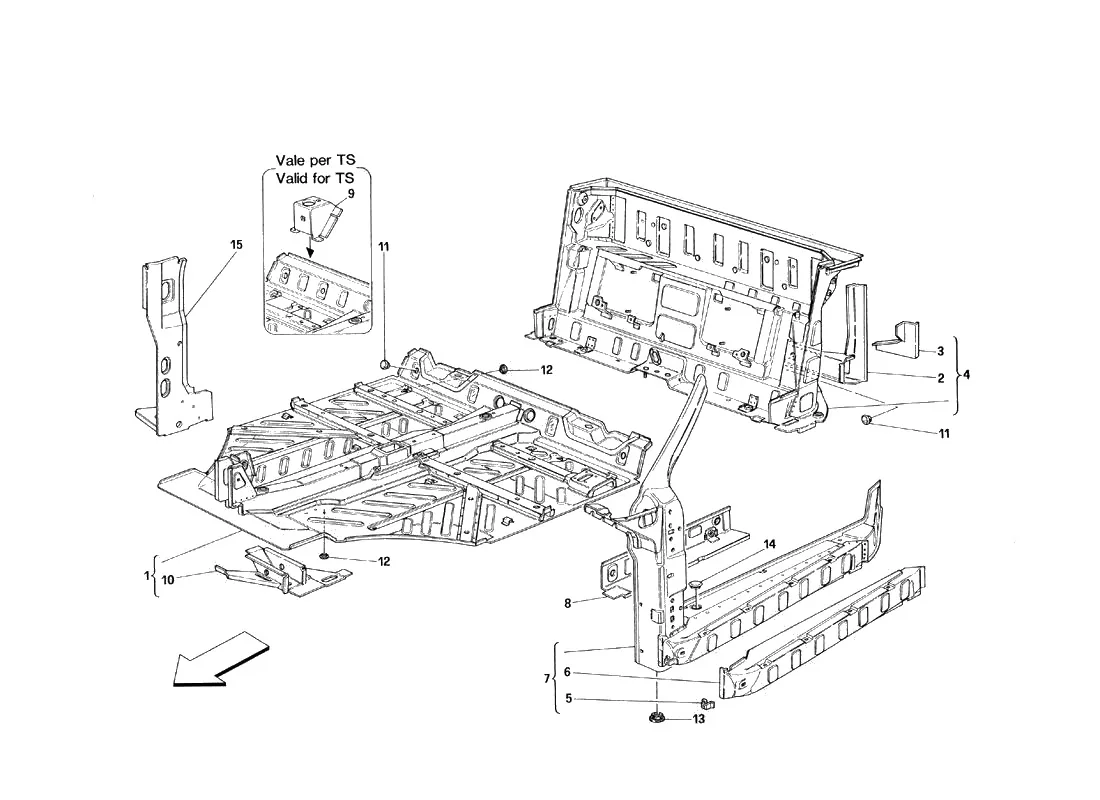

Exploded view of the central part structures on the Ferrari 348 tb/ts, with 36 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 63336300 | Ferrari Floor Complete LHD - 63336300 | Price on request | Contact us for price and availability |
| 1 | 63336500 | Ferrari Floor Complete RHD - 63336500 | Price on request | Contact us for price and availability |
| 1 | 70000607 | Ferrari Floor Complete LHD - 70000607 | Price on request | Contact us for price and availability |
| 1 | 63313100 | Ferrari Passenger Compartment Floorpanel (RHD) - 63313100 | $1,496.72 | Available, ships in 3-6 days |
| 2 | 62091800 | Ferrari Frame - 62091800 | Price on request | Contact us for price and availability |
| 3 | 62807400 | Ferrari LH Bracket - 62807400 | $17.65 | Available, ships in 3-6 days |
| 3 | 62642900 | Ferrari RH Bracket - 62642900 | $13.68 | Available, ships in 3-6 days |
| 4 | 63572700 | Ferrari Rear Framework Complete LHD - 63572700 | $6,638.49 | Available, ships in 3-6 days |
| 4 | 63573200 | Ferrari Rear Framework Complete RHD - 63573200 | $1,593.04 | Available, ships in 3-6 days |
| 4 | 62091600 | Ferrari Rear Framework Complete LHD - 62091600 | $1,998.83 | Available, ships in 3-6 days |
| 4 | 63227700 | Ferrari Rear Framework Complete LHD - 63227700 | Superseded | Order 63572700 instead |
| 4 | 62889300 | Ferrari Rear Framework Complete - 62889300 | Price on request | Contact us for price and availability |
| 4 | 63573400 | Ferrari Rear Framework Complete - 63573400 | $1,599.07 | Available, ships in 3-6 days |
| 4 | 62171700 | Ferrari Rear Framework Complete - 62171700 | $1,003.62 | Available, ships in 3-6 days |
| 4 | 63231400 | Ferrari Rear Framework Complete RHD - 63231400 | $1,334.63 | Available, ships in 3-6 days |
| 5 | 62055300 | Ferrari Bracket - 62055300 | $51.67 | Special order, ships in 7-14 days |
| 6 | 62077400 | Ferrari LH Central Sill Panel - 62077400 | $984.88 | Available, ships in 3-6 days |
| 6 | 62077300 | Ferrari RH Central Sill Panel - 62077300 | $848.20 | Available, ships in 3-6 days |
| 7 | 62088600 | Ferrari LH Door Support - 62088600 | Price on request | Contact us for price and availability |
| 7 | 62088500 | Ferrari RH Door Support - 62088500 | Price on request | Contact us for price and availability |
| 8 | 62182000 | Ferrari LH Inner Side Member Plate - 62182000 | $59.07 | Special order, ships in 7-14 days |
| 8 | 62181900 | Ferrari RH Inner Side Member Plate - 62181900 | $59.07 | Special order, ships in 7-14 days |
| 8 | 63310800 | Ferrari RH Inner Sill Panel - 63310800 | $61.87 | Available, ships in 3-6 days |
| 9 | 62990400 | Ferrari RH Bracket - 62990400 | Price on request | Contact us for price and availability |
| 9 | 62913400 | Ferrari LH Bracket - 62913400 | $40.06 | Available, ships in 3-6 days |
| 10 | 62164000 | Ferrari RH Plate - 62164000 | $73.85 | Available, ships in 3-6 days |
| 10 | 62164100 | Ferrari LH Plate - 62164100 | $73.85 | Special order, ships in 7-14 days |
| 11 | 14506987 | Ferrari Rubber Plug - 14506987 | $7.82 | Available, ships in 3-6 days |
| 12 | 14506587 | Ferrari Rubber Grommet - 14506587 | $0.38 | Available, ships in 3-6 days |
| 13 | 14506787 | Ferrari Rubber Plug D20 - 14506787 | $10.25 | Available, ships in 3-6 days |
| 13 | 62446300 | Ferrari Plug D30 - 62446300 | Price on request | Contact us for price and availability |
| 14 | 14507987 | Ferrari Rubber Plug - 14507987 | $3.85 | In stock |
| 15 | 62080200 | Ferrari LH Support - 62080200 | $120.62 | Special order, ships in 7-14 days |
| 15 | 62080100 | Ferrari RH Support - 62080100 | Price on request | Contact us for price and availability |
| 62069000 | Ferrari LH Inner Side Member Plate - 62069000 | $44.29 | Special order, ships in 7-14 days | |
| 62068900 | Ferrari RH Inner Side Member Plate - 62068900 | $44.29 | Special order, ships in 7-14 days |
