Ferrari 348 tb/ts — Tunnel - Accessories - Valid Fortb - Shield With Cassette Box Version (diagram 124)

Exploded view of the tunnel - accessories - valid fortb - shield with cassette box version on the Ferrari 348 tb/ts, with 63 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

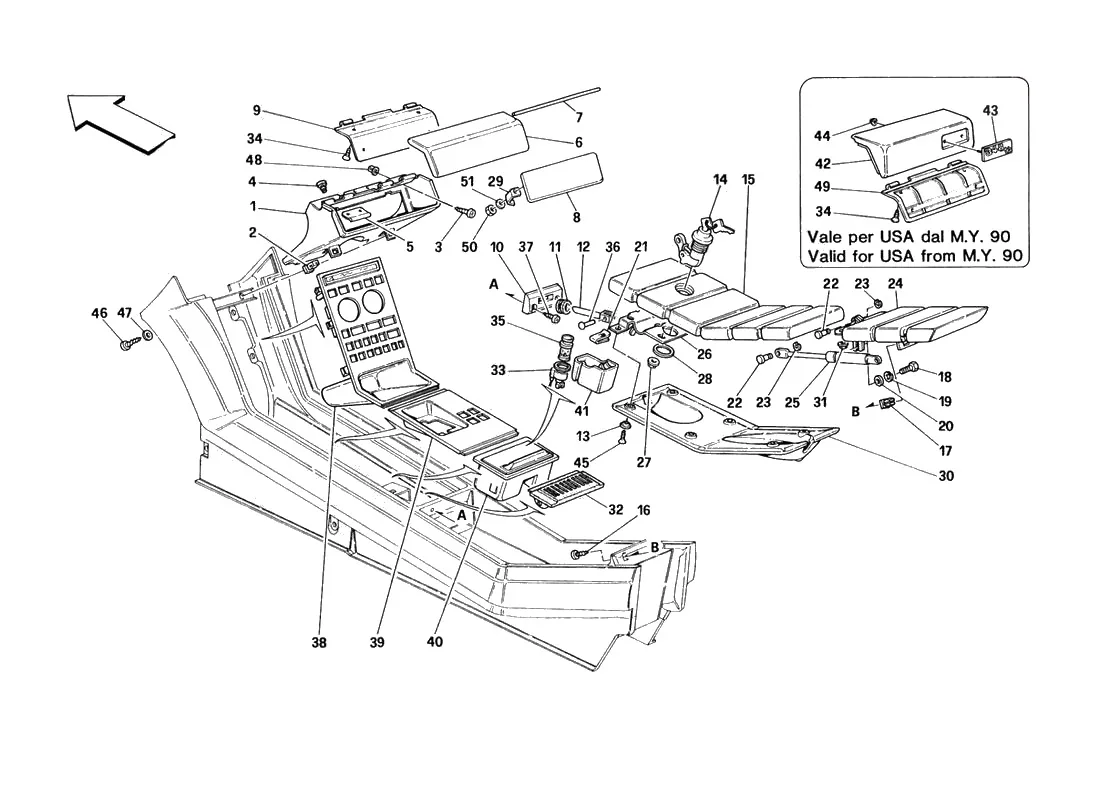

Ferrari 348 tb/ts Tunnel - Accessories - Valid Fortb - Shield With Cassette Box Version exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
162147100Ferrari Radio Console - 62147100$576.78Available, ships in 3-6 days
214202782Ferrari Block - 14202782Price on requestContact us for price and availability
315688375Ferrari Screw - 15688375$1.29In stock
414624487Ferrari Rubber Bush - 14624487SupersededOrder 133627 instead
4133627Ferrari Plastic Plug - 133627$1.23Available, ships in 3-6 days
562147900Ferrari Spring - 62147900$102.04Available, ships in 3-6 days
762147800Ferrari Pin - 62147800$4.41Available, ships in 3-6 days
862993700Ferrari Glove Box Inner Plate Cover - 62993700Price on requestContact us for price and availability
962147500Ferrari Cover - 62147500Price on requestContact us for price and availability
1062195600Ferrari Striker Plate - 62195600$53.17Available, ships in 3-6 days
1162195700Ferrari Bush - 62195700$14.93Available, ships in 3-6 days
1262195400Ferrari Support - 62195400Price on requestContact us for price and availability
1312612207Ferrari Cup Washer - 12612207Price on requestContact us for price and availability
1462652300Ferrari Lock Complete - 62652300SupersededOrder 65373700 instead
1465373700Ferrari Lock - 65373700$302.49Available, ships in 3-6 days
1495401030Ferrari Key Blank - 95401030Price on requestContact us for price and availability
1615783501Ferrari Screw - 15783501$6.10Available, ships in 3-6 days
1810902024Ferrari Screw M6 x 12 - 10902024$0.12Available, ships in 3-6 days
1810902011Ferrari Screw 6x12 - 10902011$13.69Available, ships in 3-6 days
19127494Ferrari Lock Washer - 127494$0.50In stock
19106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
2012646604Ferrari Washer D6 15-15 x 1.5 - 12646604$0.50Available, ships in 3-6 days
2012646601Ferrari Washer - 12646601SupersededOrder 12646604 instead
2162366700Ferrari Screw Clip - 62366700$0.44Available, ships in 3-6 days
2262162800Ferrari Pin - 62162800$12.21Special order, ships in 7-14 days
2311087576Ferrari Ring - 11087576$9.62Available, ships in 3-6 days
2562146200Ferrari Support - 62146200Price on requestContact us for price and availability
2662195800Ferrari Plate - 62195800$7.05Available, ships in 3-6 days
2713831801Ferrari Nut M5 x 4 - 13831801$0.34Available, ships in 3-6 days
2861819500Ferrari Washer - 61819500$1.48Available, ships in 3-6 days
2962993400Ferrari Clip - 62993400$3.24Special order, ships in 7-14 days
3262146500Ferrari Plate - 62146500Price on requestContact us for price and availability
33226941Ferrari Lighter Insert - 226941$47.85In stock
3415669706Ferrari Black Countersunk Self Tapping Screw - 15669706$0.17Available, ships in 3-6 days
35226942Ferrari Lighter - 226942$26.39In stock
3561107500Ferrari Cigarette Lighter Insert Only - 61107500SupersededOrder 226942 instead
3613764550Ferrari Rivet - 13764550$0.67Available, ships in 3-6 days
3716082401Ferrari Screw - 16082401$0.79Available, ships in 3-6 days
38146375Ferrari 348 Center Console Plate - 146375$280.28In stock
39147111Ferrari 348 Center Console Plate - 147111$362.84In stock
39147112Ferrari Centre Console Plate RHD - 147112Price on requestContact us for price and availability
4062146600Ferrari 348 Ashtray Box - 62146600$328.88In stock
4062146600/AFerrari Ash-Tray - 62146600/A$681.89Available, ships in 3-6 days
4362989900Ferrari 348Tb Mark - 62989900$58.21Available, ships in 3-6 days
4488074800Ferrari Emblem Mounting Clip - 88074800$1.10In stock
4460324506Ferrari Safety Clip - 60324506SupersededOrder 88074800 instead
4515915807Ferrari Screw - 15915807$0.65Available, ships in 3-6 days
4712638178Ferrari Washer 5.45-14x1 - 12638178$0.13Available, ships in 3-6 days
4712638177Ferrari Washer - 12638177SupersededOrder 12638178 instead
4814115980Ferrari Clip - 14115980Price on requestContact us for price and availability
4962220600Ferrari Glove Box Inner Door - 62220600Price on requestContact us for price and availability
5016101711Ferrari Nut M3 x 2.4 - 16101711$0.17Available, ships in 3-6 days
5110615171Ferrari Shakeproof Washer - 10615171$0.59Available, ships in 3-6 days
5110615179Ferrari Washer - 10615179SupersededOrder 10615171 instead
10902411Ferrari Bolt - 10902411SupersededOrder 10902024 instead
61504100Ferrari Cigarette Lighter Plug - 61504100SupersededOrder 226942 instead
95401147Ferrari Door Key Blank - 95401147Price on requestContact us for price and availability
10516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
10516473Ferrari Washer - 10516473SupersededOrder 127494 instead
10516477Ferrari Washer - 10516477SupersededOrder 127494 instead
10615174Ferrari Washer - 10615174SupersededOrder 10615170 instead
12638108Ferrari Washer - 12638108SupersededOrder 12638178 instead
61276300Ferrari Washer - 61276300SupersededOrder 12638178 instead
