Ferrari 348 tb/ts — Lights Lifting Device And Headlights (diagram 129)

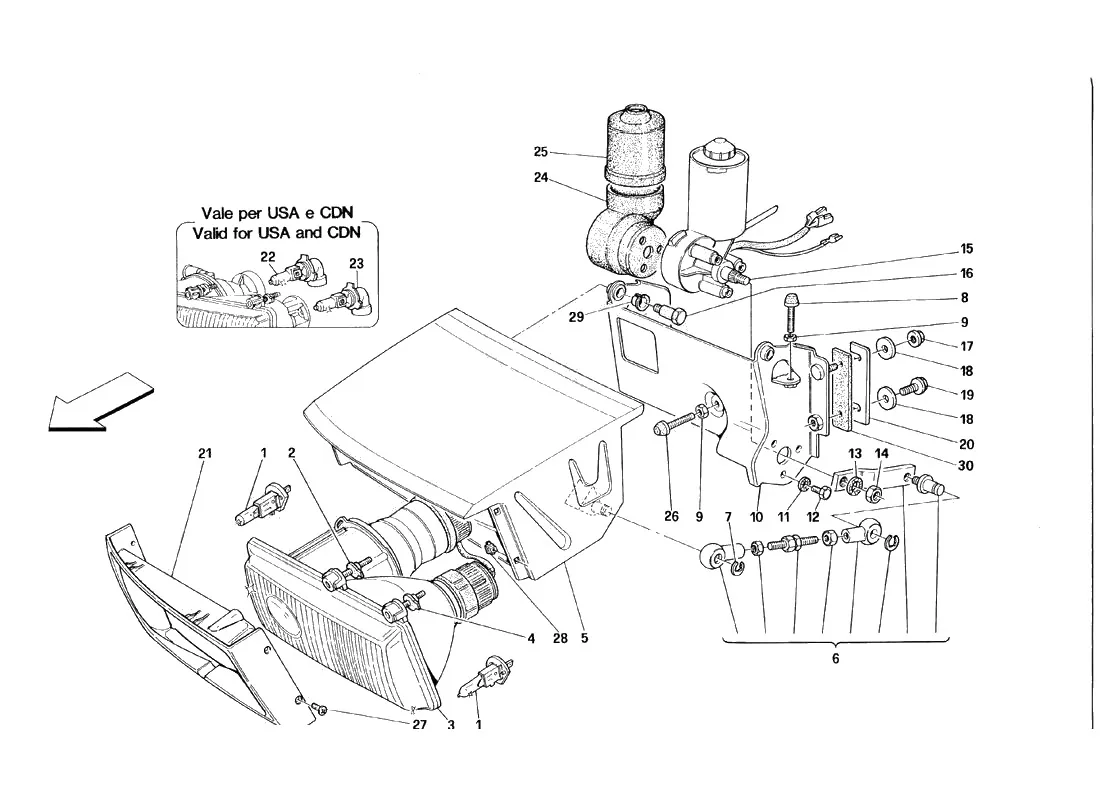

Exploded view of the lights lifting device and headlights on the Ferrari 348 tb/ts, with 51 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 14151095 | Ferrari Bulb H1 12V-55W - 14151095 | $26.24 | Special order, ships in 7-14 days |
| 2 | 148086 | Ferrari Head Lamp Attachment Pin - 148086 | $36.69 | Available, ships in 3-6 days |
| 3 | 133084 | Ferrari RH Head Lamp Low/High Beam RHD - 133084 | $812.59 | Available, ships in 3-6 days |
| 3 | 133085 | Ferrari LH Head Lamp Low/High Beam RHD - 133085 | $1,307.28 | Available, ships in 3-6 days |
| 3 | 133080 | Ferrari RH Head Lamp Low/High Beam LHD - 133080 | $1,131.39 | Special order, ships in 7-14 days |
| 3 | 133082 | Ferrari RH Head Lamp Low/High Beam - 133082 | $1,174.90 | Available, ships in 3-6 days |
| 3 | 146157 | Ferrari RH Head Lamp Low/High Beam - 146157 | $1,414.25 | Special order, ships in 7-14 days |
| 3 | 133081 | Ferrari LH Head Lamp Low/High Beam LHD - 133081 | Price on request | Contact us for price and availability |
| 3 | 133083 | Ferrari LH Head Lamp Low/High Beam - 133083 | $1,174.90 | Special order, ships in 7-14 days |
| 3 | 146158 | Ferrari LH Head Lamp Low/High Beam - 146158 | $1,414.25 | Special order, ships in 7-14 days |
| 3 | 133086 | Ferrari Head Lamp Ver F - 133086 | $658.78 | Available, ships in 3-6 days |
| 3 | 133087 | Ferrari LH Head Lamp Low/High Beam - 133087 | $766.26 | Available, ships in 3-6 days |
| 3 | 133086/X | Ferrari Head Lamp Ver F - 133086/X | $658.78 | Available, ships in 3-6 days |
| 4 | 148088 | Ferrari Head Lamp Adjustment Screw - 148088 | $39.14 | Available, ships in 3-6 days |
| 5 | 63501700 | Ferrari RH Head Lamp Housing - 63501700 | $1,835.80 | Special order, ships in 7-14 days |
| 5 | 63501800 | Ferrari LH Head Lamp Housing - 63501800 | $1,835.80 | Special order, ships in 7-14 days |
| 6 | 62608300 | Ferrari Pop-Up Con Rod - 62608300 | Price on request | Special order, ships in 7-14 days |
| 6 | 62608300/A | Ferrari Pop-Up Con Rod without lever - 62608300/A | $107.62 | Available, ships in 3-6 days |
| 7 | 16160976 | Ferrari Circlip - 16160976 | $0.17 | Special order, ships in 7-14 days |
| 8 | 63346700 | Ferrari Bump Stop - 63346700 | Superseded | Order 63346800 instead |
| 9 | 15896211 | Ferrari Nut M6 x 5 - 15896211 | $0.13 | Available, ships in 3-6 days |
| 10 | 62131400 | Ferrari LH Head Lamp Bracket - 62131400 | $537.14 | Available, ships in 3-6 days |
| 10 | 62131300 | Ferrari RH Head Lamp Bracket - 62131300 | $709.82 | Special order, ships in 7-14 days |
| 11 | 12601374 | Ferrari Wavy Washer 8mm - 12601374 | $3.12 | Available, ships in 3-6 days |
| 11 | 10615479 | Ferrari Washer - 10615479 | Price on request | Special order, ships in 7-14 days |
| 12 | 10902124 | Ferrari Screw - 10902124 | $0.29 | In stock |
| 12 | 10902111 | Ferrari Bolt - 10902111 | Superseded | Order 10902124 instead |
| 15 | 149134 | Ferrari RH Head Lamp Lifting Motor - 149134 | Superseded | Order 172534 instead |
| 15 | 149133 | Ferrari LH Head Lamp Lifting Motor - 149133 | Superseded | Order 172535 instead |
| 16 | 63346400 | Ferrari Pin - 63346400 | $127.27 | Special order, ships in 7-14 days |
| 17 | 13832201 | Ferrari Flanged Nut - 13832201 | $1.04 | Available, ships in 3-6 days |
| 18 | 12625201 | Ferrari Washer - 12625201 | Superseded | Order 12625224 instead |
| 19 | 13838911 | Ferrari Screw M8 x 16 TEBD - 13838911 | $7.86 | Available, ships in 3-6 days |
| 20 | 62227500 | Ferrari Outer Shim - 62227500 | $14.78 | Available, ships in 3-6 days |
| 20 | 62227600 | Ferrari Inner Shim - 62227600 | $1.51 | Available, ships in 3-6 days |
| 21 | 62071210 | Ferrari RH Light Rim - 62071210 | $134.88 | Special order, ships in 7-14 days |
| 21 | 62071310 | Ferrari LH Light Rim - 62071310 | $134.88 | Special order, ships in 7-14 days |
| 22 | 143165 | Ferrari Bulb HB4 12V 55W - 143165 | $109.40 | Special order, ships in 7-14 days |
| 23 | 143166 | Ferrari Bulb HB3 12V-65W - 143166 | $83.15 | Available, ships in 3-6 days |
| 24 | 60331204 | Ferrari RH Head Lamp Motor Rubber Cover - 60331204 | Price on request | Contact us for price and availability |
| 24 | 60331303 | Ferrari LH Head Lamp Motor Rubber Cover - 60331303 | Price on request | Contact us for price and availability |
| 25 | 60331402 | Ferrari Rubber Boot - 60331402 | $51.18 | Available, ships in 3-6 days |
| 26 | 63346800 | Ferrari Bump Stop - 63346800 | $15.43 | Available, ships in 3-6 days |
| 27 | 13297377 | Ferrari Screw - 13297377 | $0.50 | In stock |
| 28 | 63595100 | Ferrari Caged Captive Nut 4mm - 63595100 | $2.01 | Available, ships in 3-6 days |
| 29 | 62998000 | Ferrari Pivot Bush - 62998000 | $4.29 | In stock |
| 30 | 63344900 | Ferrari Inner Gasket - 63344900 | $119.64 | Available, ships in 3-6 days |
| 30 | 63344800 | Ferrari Outer Gasket - 63344800 | Price on request | Contact us for price and availability |
| 60727600 | Ferrari LH Head Lamp Lift Motor - 60727600 | Superseded | Order 172535 instead | |
| 60727500 | Ferrari RH Head Lamp Lift Motor - 60727500 | Superseded | Order 172534 instead | |
| 172534 | Ferrari Right Headlight Motor - 172534 | $1,100.00 | In stock |
