Ferrari 348 tb/ts — Evaporator Unit And Passengers Compartment Aerating (diagram 134)

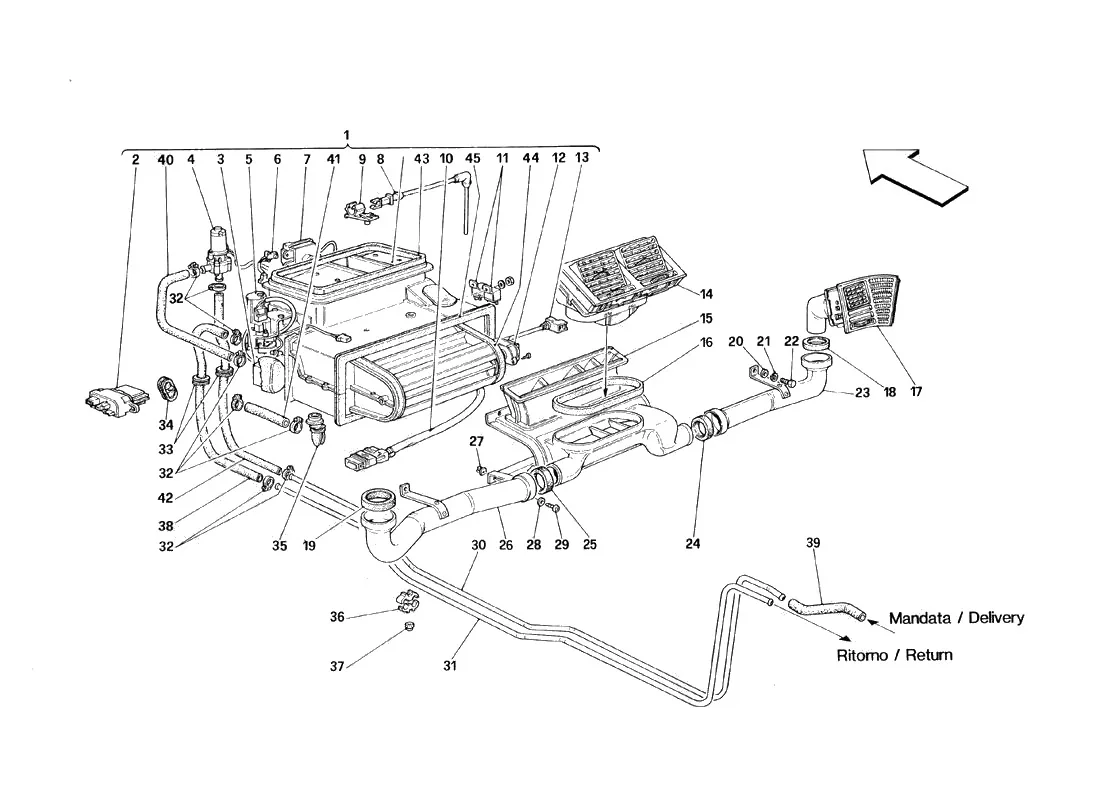

Exploded view of the evaporator unit and passengers compartment aerating on the Ferrari 348 tb/ts, with 80 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 62417700 | Ferrari Air Con Unit LHD - 62417700 | Price on request | Contact us for price and availability |
| 1 | 63000500 | Ferrari Air Con Unit RHD - 63000500 | Price on request | Contact us for price and availability |
| 2 | 63307200 | Ferrari Power Pack - 63307200 | Price on request | Contact us for price and availability |
| 3 | 154276 | Ferrari AC Expansion Valve - 154276 | $184.53 | In stock |
| 3 | 63306500 | Ferrari Expansion Valve - 63306500 | Superseded | Order 154276 instead |
| 4 | 61787900 | Ferrari Water Pump - 61787900 | Price on request | Contact us for price and availability |
| 5 | 63306400 | Ferrari 348/355 Heater Valve - 63306400 | Superseded | Order 869175 instead |
| 5 | 869175 | Ferrari Heater Valve - 869175 | $1,786.85 | Available, ships in 3-6 days |
| 6 | 63306900 | Ferrari Air Sensor - 63306900 | Price on request | Contact us for price and availability |
| 7 | 63306700 | Ferrari Actuator - 63306700 | $354.10 | In stock |
| 7 | 63306700R | Ferrari 348/355 Heater Blend Door Pin - 63306700R | $118.43 | In stock |
| 8 | 62341000 | Ferrari A/C Evaporator Temperature Sensor-62341000 | $159.50 | Contact us |
| 9 | 63306600 | Ferrari Clip - 63306600 | $1.71 | Special order, ships in 7-14 days |
| 10 | 138335 | Ferrari Cables - 138335 | $717.33 | Available, ships in 3-6 days |
| 11 | 63306800 | Ferrari Relay - 63306800 | $24.50 | In stock |
| 12 | 63307100 | Ferrari Actuator - 63307100 | Superseded | Order 869184 instead |
| 12 | 869184 | Ferrari Actuator - 869184 | $1,174.90 | Available, ships in 3-6 days |
| 13 | 63307000 | Ferrari Sensor - 63307000 | $106.59 | Special order, ships in 7-14 days |
| 14 | 62620600 | Ferrari 348/355 Center Air Vent - 62620600 | Superseded | Order 64320000 instead |
| 15 | 62186000 | Ferrari Air Diffuser LHD - 62186000 | $308.79 | Available, ships in 3-6 days |
| 15 | 62189500 | Ferrari Air Diffuser RHD - 62189500 | $783.26 | Available, ships in 3-6 days |
| 16 | 62188100 | Ferrari Gasket - 62188100 | Price on request | Contact us for price and availability |
| 17 | 62620700 | Ferrari RH Air Vent - 62620700 | Price on request | Contact us for price and availability |
| 17 | 62620800 | Ferrari LH Air Vent - 62620800 | Price on request | Contact us for price and availability |
| 18 | 62188200 | Ferrari Gasket - 62188200 | Price on request | Contact us for price and availability |
| 19 | 62188300 | Ferrari Gasket - 62188300 | Price on request | Contact us for price and availability |
| 20 | 12644401 | Ferrari Washer - 12644401 | $0.08 | Available, ships in 3-6 days |
| 21 | 127494 | Ferrari Lock Washer - 127494 | $0.50 | In stock |
| 21 | 106850 | Ferrari Spring Washer 6mm - 106850 | Superseded | Order 127494 instead |
| 22 | 10902024 | Ferrari Screw M6 x 12 - 10902024 | $0.12 | Available, ships in 3-6 days |
| 22 | 10902011 | Ferrari Screw 6x12 - 10902011 | $13.69 | Available, ships in 3-6 days |
| 22 | 10902211 | Ferrari Screw 6x16 - 10902211 | $1.69 | Special order, ships in 7-14 days |
| 23 | 62186100 | Ferrari RH Air Delivery Tube LHD - 62186100 | $98.54 | Available, ships in 3-6 days |
| 23 | 62189600 | Ferrari RH Air Delivery Tube RHD - 62189600 | Price on request | Contact us for price and availability |
| 24 | 62679200 | Ferrari Gasket - 62679200 | Price on request | Contact us for price and availability |
| 25 | 62679000 | Ferrari Gasket - 62679000 | Price on request | Contact us for price and availability |
| 26 | 62186200 | Ferrari LH Air Delivery Tube LHD - 62186200 | $20.26 | Available, ships in 3-6 days |
| 26 | 62189700 | Ferrari LH Air Delivery Tube RHD - 62189700 | Price on request | Contact us for price and availability |
| 27 | 14201980 | Ferrari Fixing Block - 14201980 | $0.27 | Available, ships in 3-6 days |
| 28 | 12638124 | Ferrari Washer - 12638124 | $0.08 | Available, ships in 3-6 days |
| 28 | 12638101 | Ferrari Washer White - 12638101 | Superseded | Order 12638124 instead |
| 29 | 15688101 | Ferrari Screw 16mm - 15688101 | Superseded | Order 15688170 instead |
| 30 | 62659200 | Ferrari Pipe - 62659200 | $728.75 | Available, ships in 3-6 days |
| 31 | 62659500 | Ferrari Pipe - 62659500 | $790.72 | Available, ships in 3-6 days |
| 32 | 13000390 | Ferrari Screw Collar 16-25mm - 13000390 | Superseded | Order 178052 instead |
| 33 | 10398780 | Ferrari Ring LHD - 10398780 | $6.94 | Available, ships in 3-6 days |
| 34 | 60679700 | Ferrari Gasket RHD - 60679700 | Price on request | Contact us for price and availability |
| 35 | 62656000 | Ferrari Bellows - 62656000 | $18.48 | Available, ships in 3-6 days |
| 36 | 62658800 | Ferrari Clip - 62658800 | Price on request | Contact us for price and availability |
| 37 | 102948 | Ferrari Nyloc Nut M6 x 8 - 102948 | $0.46 | Available, ships in 3-6 days |
| 37 | 12574211 | Ferrari Nyloc Nut M6x1 - 12574211 | Superseded | Order 102948 instead |
| 38 | 62659400 | Ferrari Return Rubber Pipe LHD - 62659400 | Price on request | Contact us for price and availability |
| 38 | 62851000 | Ferrari Return Rubber Pipe RHD - 62851000 | $34.58 | Available, ships in 3-6 days |
| 39 | AW5348000 | Ferrari 348 Silicone Cooling Hose Kit - AW5348000 | $416.90 | In stock |
| 39 | AW5348001 | Ferrari 348 Silicone Cooling Hose & Water Pump Kit - AW5348001 | $1,116.50 | In stock |
| 39 | 62659100 | Ferrari Rubber Hose - 62659100 | $284.18 | Available, ships in 3-6 days |
| 40 | 63306300 | Ferrari Pipe - 63306300 | $59.17 | Available, ships in 3-6 days |
| 41 | 63311700 | Ferrari Pipe - 63311700 | Price on request | Contact us for price and availability |
| 42 | 62659300 | Ferrari Heater Hose LHD - 62659300 | $113.90 | Available, ships in 3-6 days |
| 42 | 64536900 | Ferrari Water Hose RHD - 64536900 | $49.46 | Available, ships in 3-6 days |
| 42 | 61830000 | Ferrari Heater Hose RHD - 61830000 | Superseded | Order 64536900 instead |
| 43 | 62928000 | Ferrari Gasket Seal - 62928000 | Price on request | Contact us for price and availability |
| 44 | 62928100 | Ferrari Gasket Seal - 62928100 | Price on request | Contact us for price and availability |
| 45 | 62928200 | Ferrari Gasket Seal - 62928200 | $29.34 | Special order, ships in 7-14 days |
| 10902411 | Ferrari Bolt - 10902411 | Superseded | Order 10902024 instead | |
| 680231 | Ferrari Bolt - 680231 | Superseded | Order 10902211 instead | |
| 64320000 | Ferrari Centre Diffuser - 64320000 | $709.82 | Contact us to order | |
| 178052 | Ferrari Clip - 178052 | $3.26 | Available, ships in 3-6 days | |
| 70000900 | Ferrari Electric Water Pump - 70000900 | $343.50 | In stock | |
| 65353400 | Ferrari Evaporator Assy LHD - 65353400 | Price on request | Contact us for price and availability | |
| 12179590 | Ferrari Hose Clip 16-25 - 12179590 | Superseded | Order 13000390 instead | |
| 100507 | Ferrari Jubilee Clip - 100507 | Superseded | Order 13000390 instead | |
| 104022 | Ferrari Jubilee Clip - 104022 | Superseded | Order 13000390 instead | |
| 12179990 | Ferrari Jubilee Clip 20-32mm - 12179990 | Superseded | Order 13000390 instead | |
| 127609 | Ferrari Pipe - 127609 | Superseded | Order 64536900 instead | |
| 61079500 | Ferrari Sensor - 61079500 | Price on request | Contact us for price and availability | |
| 10516470 | Ferrari Washer 6 R 4 - 10516470 | Superseded | Order 127494 instead | |
| 10516473 | Ferrari Washer - 10516473 | Superseded | Order 127494 instead | |
| 10516477 | Ferrari Washer - 10516477 | Superseded | Order 127494 instead | |
| 64536500 | Ferrari Water Hose LHD - 64536500 | Price on request | Contact us for price and availability |
