Ferrari 365 GT 2+2 MK1 up to 12810 — Dashboard Switches (Early) (diagram 321(A))

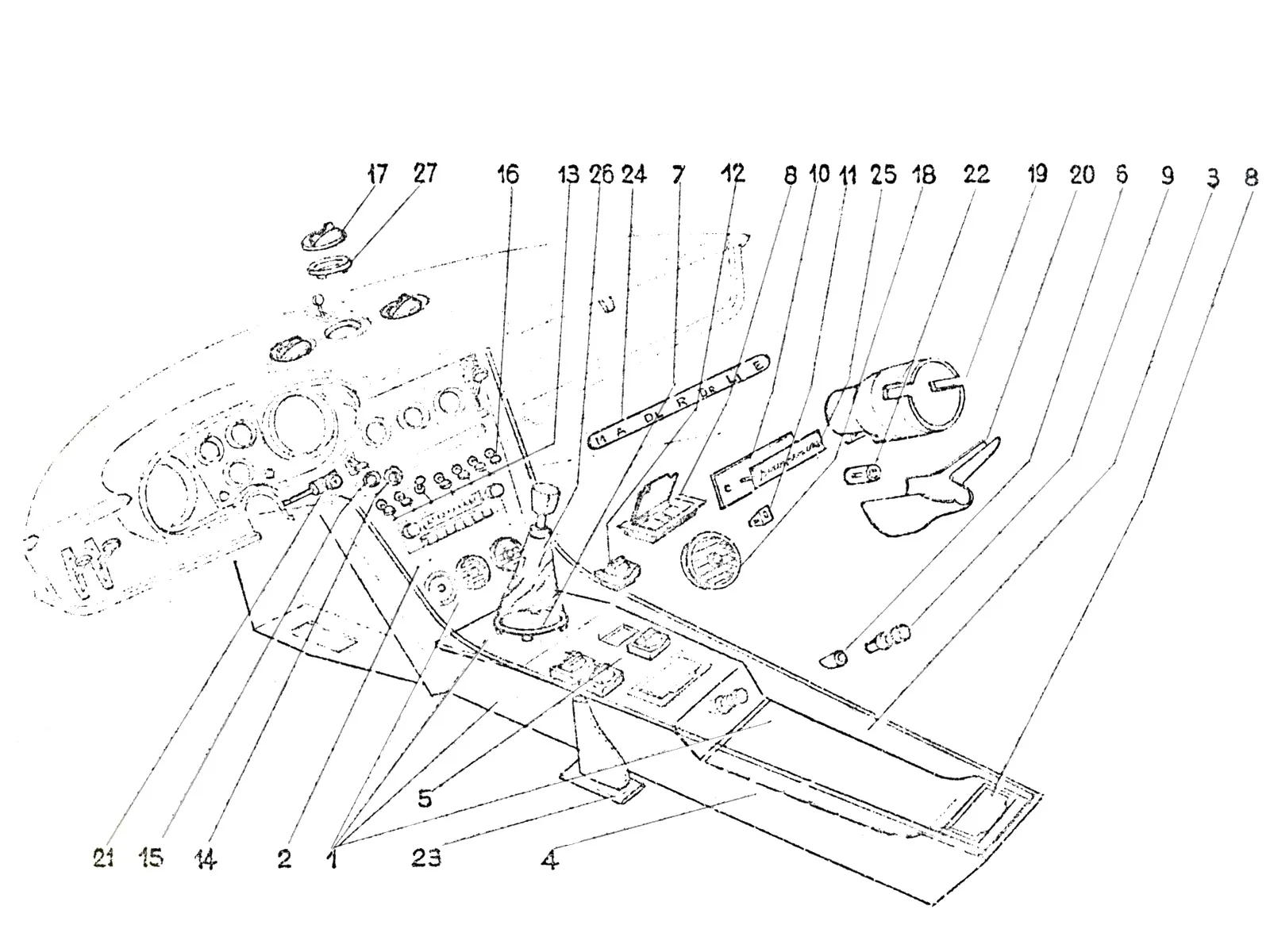

Exploded view of the dashboard switches (early) on the Ferrari 365 GT 2+2 MK1 up to 12810, with 35 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 251-62-160-00 | Ferrari Centre Console Complete LHD - 251-62-160-00 | Price on request | Contact us for price and availability |
| 1 | 252-62-160-00 | Ferrari Centre Console Complete RHD - 252-62-160-00 | Price on request | Contact us for price and availability |
| 2 | 251-62-164-00 | Ferrari Fascia LHD - 251-62-164-00 | Price on request | Contact us for price and availability |
| 2 | 252-62-164-00 | Ferrari Fascia RHD - 252-62-164-00 | Price on request | Contact us for price and availability |
| 3 | 251-62-170-00 | Ferrari Console Cover LHD - 251-62-170-00 | Price on request | Contact us for price and availability |
| 3 | 252-62-170-00 | Ferrari Console Cover RHD - 252-62-170-00 | Price on request | Contact us for price and availability |
| 4 | 251-62-180-00 | Ferrari Padding - 251-62-180-00 | Price on request | Contact us for price and availability |
| 5 | 251-62-190-00 | Ferrari Padding - 251-62-190-00 | Price on request | Contact us for price and availability |
| 6 | 251-62-198-00 | Ferrari Spacer - 251-62-198-00 | Price on request | Contact us for price and availability |
| 7 | 251-62-894-00 | Ferrari Trim - 251-62-894-00 | Price on request | Contact us for price and availability |
| 8 | 251-64-920-02 | Ferrari Ashtray - 251-64-920-02 | Price on request | Contact us for price and availability |
| 9 | 251-76-670-02 | Ferrari Cigarette Lighter - 251-76-670-02 | $733.71 | Special order, ships in 7-14 days |
| 10 | 243-76-680-00 | Ferrari Covering - 243-76-680-00 | Price on request | Contact us for price and availability |
| 11 | 251-80-274-06 | Ferrari RH Clip - 251-80-274-06 | Price on request | Contact us for price and availability |
| 11 | 251-80-275-06 | Ferrari LH Clip - 251-80-275-06 | Price on request | Contact us for price and availability |
| 12 | 246-80-860-02 | Ferrari Window Switch - 246-80-860-02 | Price on request | Contact us for price and availability |
| 13 | 244-80-864-00 | Ferrari Switch - 244-80-864-00 | $132.03 | Available, ships in 3-6 days |
| 14 | 244-80-882-02 | Ferrari Ring - 244-80-882-02 | $9.40 | Available, ships in 3-6 days |
| 15 | 246-80-882-02 | Ferrari Washer - 246-80-882-02 | $2.50 | Available, ships in 3-6 days |
| 16 | 251-80-884-00 | Ferrari Switch - 251-80-884-00 | Price on request | Contact us for price and availability |
| 17 | 251-86-470-00 | Ferrari Dash Vent Louvre - 251-86-470-00 | $343.93 | Available, ships in 3-6 days |
| 17 | 251-86-470-00/A | Ferrari Dash Vent Louvre - 251-86-470-00/A | Price on request | Special order, ships in 7-14 days |
| 18 | 242-86-910-02 | Ferrari Air vent Centre Console - 242-86-910-02 | $1,821.12 | Special order, ships in 7-14 days |
| 19 | 251-88-202-06 | Ferrari Housing - 251-88-202-06 | Price on request | Contact us for price and availability |
| 20 | 251-88-220-00 | Ferrari Lower Cover - 251-88-220-00 | Price on request | Contact us for price and availability |
| 21 | 251-88-250-00 | Ferrari Control - 251-88-250-00 | Price on request | Contact us for price and availability |
| 22 | 251-88-260-03 | Ferrari Rubber Spacer - 251-88-260-03 | Price on request | Contact us for price and availability |
| 23 | 251-90-100-00 | Ferrari Handbrake Gaitor LHD - 251-90-100-00 | Price on request | Contact us for price and availability |
| 23 | 252-90-100-00 | Ferrari Handbrake Gaitor RHD - 252-90-100-00 | Price on request | Contact us for price and availability |
| 24 | 251-98-054-00 | Ferrari Indicator Panel - 251-98-054-00 | Price on request | Contact us for price and availability |
| 25 | 400-76-332-18 | Ferrari Motif "Pininfarina" - 400-76-332-18 | $291.29 | Available, ships in 3-6 days |
| 26 | 251-62-896-00 | Ferrari Gear Lever Gaitor - 251-62-896-00 | Price on request | Contact us for price and availability |
| 27 | 251-86-424-06 | Ferrari Gasket - 251-86-424-06 | $42.00 | Available, ships in 3-6 days |
| 27 | 251-86-424-03 | Ferrari Ring - 251-86-424-03 | $42.00 | Available, ships in 3-6 days |
| 242-80-882-02 | Ferrari Ring - 242-80-882-02 | Superseded | Order 244-80-882-02 instead |
