Ferrari 365 GT4 2+2 — Rear Window Components (diagram 214)

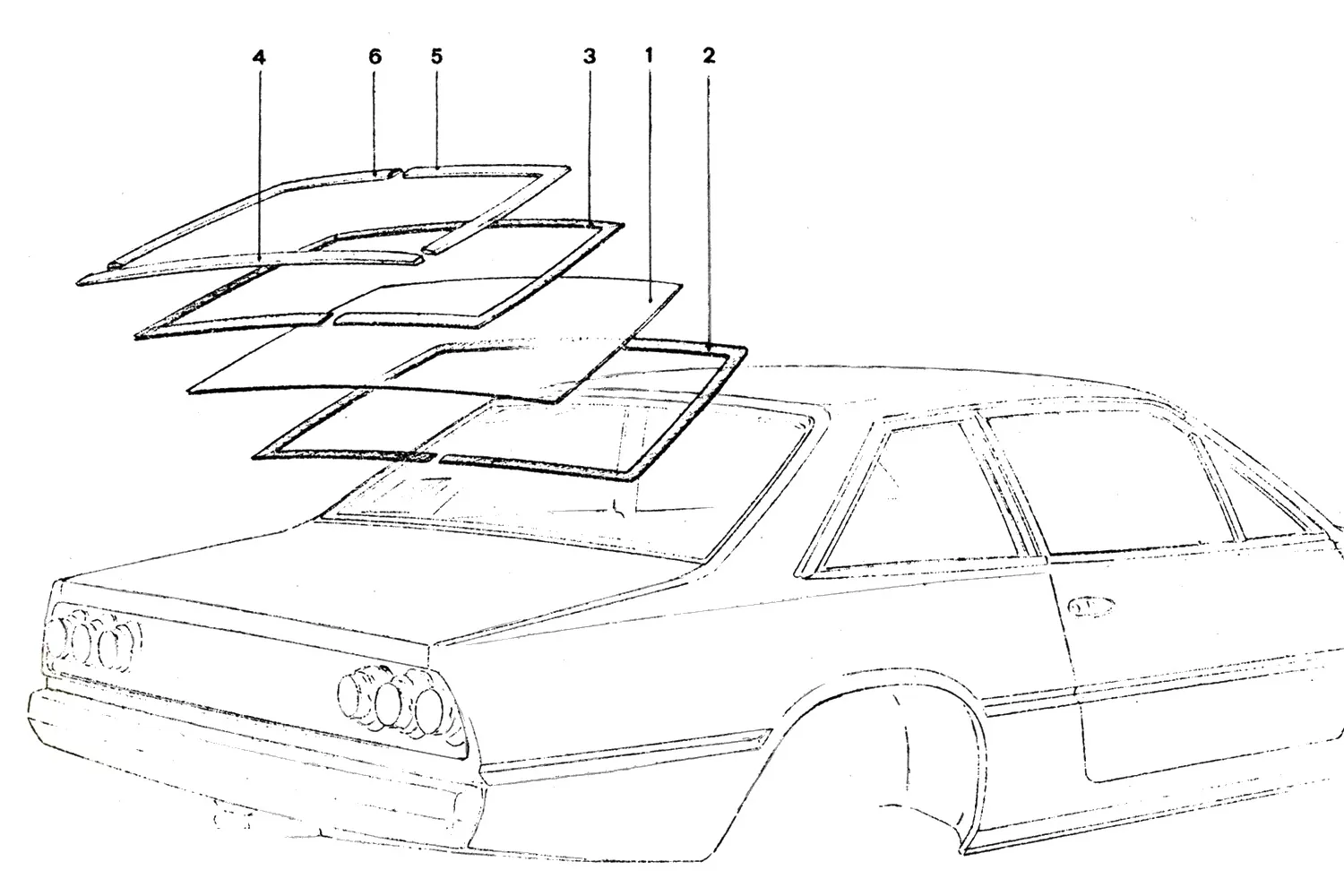

Exploded view of the rear window components on the Ferrari 365 GT4 2+2, with 6 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 255-40-504-00 | Ferrari Rear Heated Window - 255-40-504-00 | Price on request | Contact us to order |
| 2 | 152-40-020-00 | Ferrari Adhesive Strip - 152-40-020-00 | Price on request | Contact us for price and availability |
| 4 | 255-40-560-08 | Ferrari Rear Screen Moulding - 255-40-560-08 | $145.49 | Available, ships in 3-6 days |
| 5 | 255-40-600-08 | Ferrari RH Rear Screen Moulding - 255-40-600-08 | $97.33 | Available, ships in 3-6 days |
| 6 | 255-40-601-08 | Ferrari LH Rear Screen Moulding - 255-40-601-08 | $139.16 | Available, ships in 3-6 days |
| 257-40-504-10 | Ferrari Heated Rear Window 412/400 81-> - 257-40-504-10 | $4,242.63 | Contact us to order |
