Ferrari 365 GTB4 (Daytona) — Crankcase (diagram 001)

Exploded view of the crankcase on the Ferrari 365 GTB4 (Daytona), with 113 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

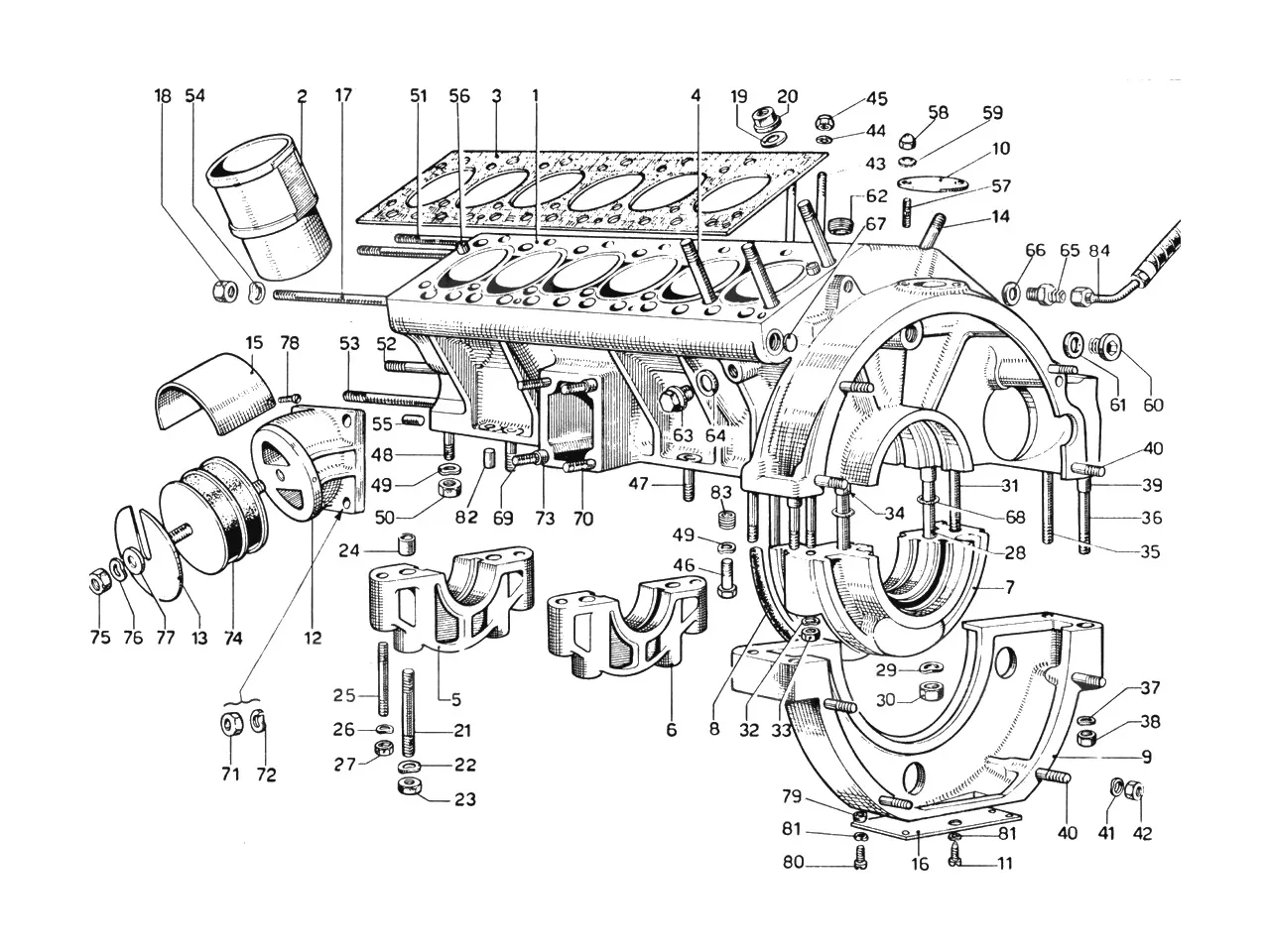

Ferrari 365 GTB4 (Daytona) Crankcase exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
19100682Ferrari Engine Block - 9100682Price on requestContact us to order
19100962Ferrari Engine Block - 9100962Price on requestContact us to order
2100089Ferrari Cylinder Liner - 100089$895.89Available, ships in 3-6 days
29100560Ferrari Cylinder Sleeve - 9100560SupersededOrder 100089 instead
3116147Ferrari 400i Full Engine Gasket Set - 116147$2,310.00In stock
3169129Ferrari Cylinder Head Gasket - 169129$602.80In stock
3169129-2Ferrari Custom Cylinder Head Gasket Pair - 169129-2$1,037.73In stock
3106994Ferrari 365 GT4 BB Full Engine Gasket Set - 106994$1,284.80In stock
395100117iFerrari 365 GTB4 Daytona Full Engine Gasket Set (Italian) - 95100117i$1,281.50In stock
39100504Ferrari Head Gasket - 9100504SupersededOrder 169129 instead
4100098Ferrari Threaded Head Stud - 100098$56.98In stock
49100505Ferrari Stud - 9100505SupersededOrder 100098 instead
59100028Ferrari Mains Cap - 9100028Price on requestContact us for price and availability
69100027Ferrari Mains Cap - 9100027Price on requestContact us for price and availability
79100211Ferrari Casing - 9100211Price on requestContact us for price and availability
8100055Ferrari Sump O-ring-100055$77.00In stock
89100056Ferrari Rubber O-Ring - 9100056SupersededOrder 100055 instead
99100624Ferrari Flywheel Housing - 9100624Price on requestContact us for price and availability
99100836Ferrari Bottom Flange - 9100836Price on requestContact us for price and availability
1010788Ferrari Cover - 10788Price on requestContact us for price and availability
119100699Ferrari Dowel Bolt - 9100699Price on requestContact us for price and availability
129100383Ferrari Engine Mounting Bracket - 9100383$70.80Available, ships in 3-6 days
12105263Ferrari Support - 105263$236.27Available, ships in 3-6 days
13100084Ferrari Shim Engine Mount - 100084$57.46Available, ships in 3-6 days
139100339Ferrari Shim Engine Mount - 9100339SupersededOrder 100084 instead
14100099Ferrari Stud - 100099$68.98Available, ships in 3-6 days
149100506Ferrari Stud - 9100506SupersededOrder 100099 instead
159100513Ferrari Protection - 9100513Price on requestContact us for price and availability
169100698Ferrari Shield - 9100698Price on requestContact us for price and availability
1795920430Ferrari Stud 8x125 P2 - 95920430Price on requestContact us for price and availability
18103181Ferrari Nut 8x1 - 103181$3.79Available, ships in 3-6 days
19100100Ferrari Washer - 100100$6.79Available, ships in 3-6 days
1995242Ferrari Washer - 95242SupersededOrder 100100 instead
209100837Ferrari Nut - 9100837$23.63Available, ships in 3-6 days
20100101/AFerrari Cylinder Head Nut - 100101/A$23.63Available, ships in 3-6 days
2195166Ferrari Stud - 95166Price on requestContact us for price and availability
2211198673Ferrari Washer - 11198673$1.99Available, ships in 3-6 days
2395900704Ferrari Nut - 95900704$24.94Available, ships in 3-6 days
2494379Ferrari Bush - 94379SupersededOrder 100013 instead
25103183Ferrari Stud 8x60 P6 - 103183Price on requestContact us for price and availability
2611198074Ferrari/Maserati Washer - 11198074$0.14In stock
2895167Ferrari Stud - 95167$6.36Special order, ships in 7-14 days
31103179Ferrari Stud 8x80 P6 - 103179$39.16Available, ships in 3-6 days
3594850Ferrari Stud - 94850Price on requestContact us for price and availability
3595171Ferrari Stud - 95171Price on requestContact us for price and availability
3695920422Ferrari Stud 8X75 P2 - 95920422$31.05Available, ships in 3-6 days
3695507Ferrari Stud - 95507Price on requestContact us for price and availability
3695276Ferrari Short Threaded Stud - 95276Price on requestContact us for price and availability
3712601474Ferrari Wavy Washer 10mm - 12601474$0.06Available, ships in 3-6 days
38100965Ferrari Nut 10x1.25 uni5788 - 100965Price on requestContact us for price and availability
39100052Ferrari Centering Dowel - 100052$4.35Available, ships in 3-6 days
39100041Ferrari Dowel - 100041$14.22Available, ships in 3-6 days
4095920405Ferrari Stud 8X20 P2 - 95920405$23.21Available, ships in 3-6 days
4395920427Ferrari Stud 8x100 P2 - 95920427Price on requestContact us for price and availability
45106013Ferrari Nyloc Nut - 106013$3.37Available, ships in 3-6 days
4695352Ferrari Bolt - 95352Price on requestContact us for price and availability
4795920407Ferrari Stud 8x22 P2 - 95920407Price on requestContact us for price and availability
5195920424Ferrari Stud 8x90 P2 - 95920424Price on requestContact us for price and availability
5395920421Ferrari Stud 8X70 P2 - 95920421$3.53Available, ships in 3-6 days
5594617Ferrari Location Peg - 94617Price on requestContact us for price and availability
56100097Ferrari Dowel 3mm id - 100097$16.94Available, ships in 3-6 days
5695079Ferrari Dowel - 95079SupersededOrder 100097 instead
5795920103Ferrari Stud 6X12 P1 - 95920103$1.65Available, ships in 3-6 days
58100436Ferrari Water Pump Nut - 100436$6.44In stock
59127494Ferrari Lock Washer - 127494$0.50In stock
6094858Ferrari Plug - 94858Price on requestContact us for price and availability
6195119Ferrari Gasket - 95119SupersededOrder 10263460 instead
6295124Ferrari Plug - 95124Price on requestContact us for price and availability
63103974Ferrari Oil Drain Plug - 103974$43.33In stock
6310300711Ferrari Threaded Drain Plug - 10300711$4.59In stock
63101477Ferrari Sump Drain Plug - 101477$58.63Available, ships in 3-6 days
6410257060Ferrari/Maserati Copper Washer - 10257060$1.10In stock
6494877Ferrari Copper Washer - 94877$0.50Available, ships in 3-6 days
6495910605Ferrari Fibre Washer 16GR2 - 95910605$0.77Available, ships in 3-6 days
6593444Ferrari Union - 93444Price on requestContact us for price and availability
6694385Ferrari Washer - 94385$3.28Available, ships in 3-6 days
6710158801Ferrari Core Plug Te20 - 10158801$2.82Available, ships in 3-6 days
6895860007Ferrari O-Ring - 95860007$1.65Available, ships in 3-6 days
6995173Ferrari Stud - 95173Price on requestContact us for price and availability
7095174Ferrari Stud - 95174Price on requestContact us for price and availability
7195900703Ferrari Lock Nut - 95900703Price on requestContact us for price and availability
7210516870Ferrari Spring Washer - 10516870Price on requestContact us for price and availability
7395006Ferrari Ferrule - 95006$4.14Available, ships in 3-6 days
74131252Ferrari Engine Mount - 131252$214.99In stock
7412160Ferrari Engine Mounting 106mm - 12160$296.62Available, ships in 3-6 days
7792306Ferrari Washer - 92306$3.56Special order, ships in 7-14 days
7793300Ferrari Spacer - 93300Price on requestContact us for price and availability
7810977624Ferrari Screw TE M5 x 12 - 10977624$0.12Available, ships in 3-6 days
7810977611Ferrari Bolt - 10977611SupersededOrder 10977624 instead
80100184Ferrari Screw - 100184$1.05Available, ships in 3-6 days
8195930507Ferrari Spring Washer 5mm - 95930507$0.27Available, ships in 3-6 days
8295910602Ferrari Fibre Washer - 95910602Price on requestContact us for price and availability
84240601Ferrari Oil Hose - 240601Price on requestContact us for price and availability
10261460Ferrari Copper Washer 16x24x1.5 - 10261460$0.63Available, ships in 3-6 days
102902Ferrari Cover - 102902Price on requestContact us for price and availability
100096Ferrari Cylinder Head Gasket - 100096SupersededOrder 169129 instead
100101Ferrari Cylinder Head Nut - 100101$23.12Available, ships in 3-6 days
104956Ferrari Engine Mount OD 106mm - 104956$236.69Available, ships in 3-6 days
10788711Ferrari Nut - 10788711$0.38Available, ships in 3-6 days
10269950Ferrari Plug - 10269950$17.42Available, ships in 3-6 days
10275040Ferrari Plug - 10275040$8.05Available, ships in 3-6 days
100183Ferrari Shield - 100183Price on requestContact us for price and availability
106853Ferrari Spring Washer 10mm - 106853SupersededOrder 12601474 instead
106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
100182Ferrari TDC Indicator Screw - 100182Price on requestContact us for price and availability
10516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
10516471Ferrari Washer - 10516471SupersededOrder 127494 instead
10516473Ferrari Washer - 10516473SupersededOrder 127494 instead
10516477Ferrari Washer - 10516477SupersededOrder 127494 instead
10516873Ferrari Washer - 10516873SupersededOrder 12601474 instead
10730501Ferrari Washer - 10730501$1.51Available, ships in 3-6 days
12601471Ferrari Washer - 12601471SupersededOrder 12601474 instead
-95100117Ferrari 365 GTB4 Daytona Full Engine Gasket Set (Elring) - 95100117$2,789.55In stock

All 365 GTB4 (Daytona) diagrams
