Ferrari 365 GTB4 (Daytona) — Oil Sump & Oil Tank (diagram 002)

Exploded view of the oil sump & oil tank on the Ferrari 365 GTB4 (Daytona), with 78 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

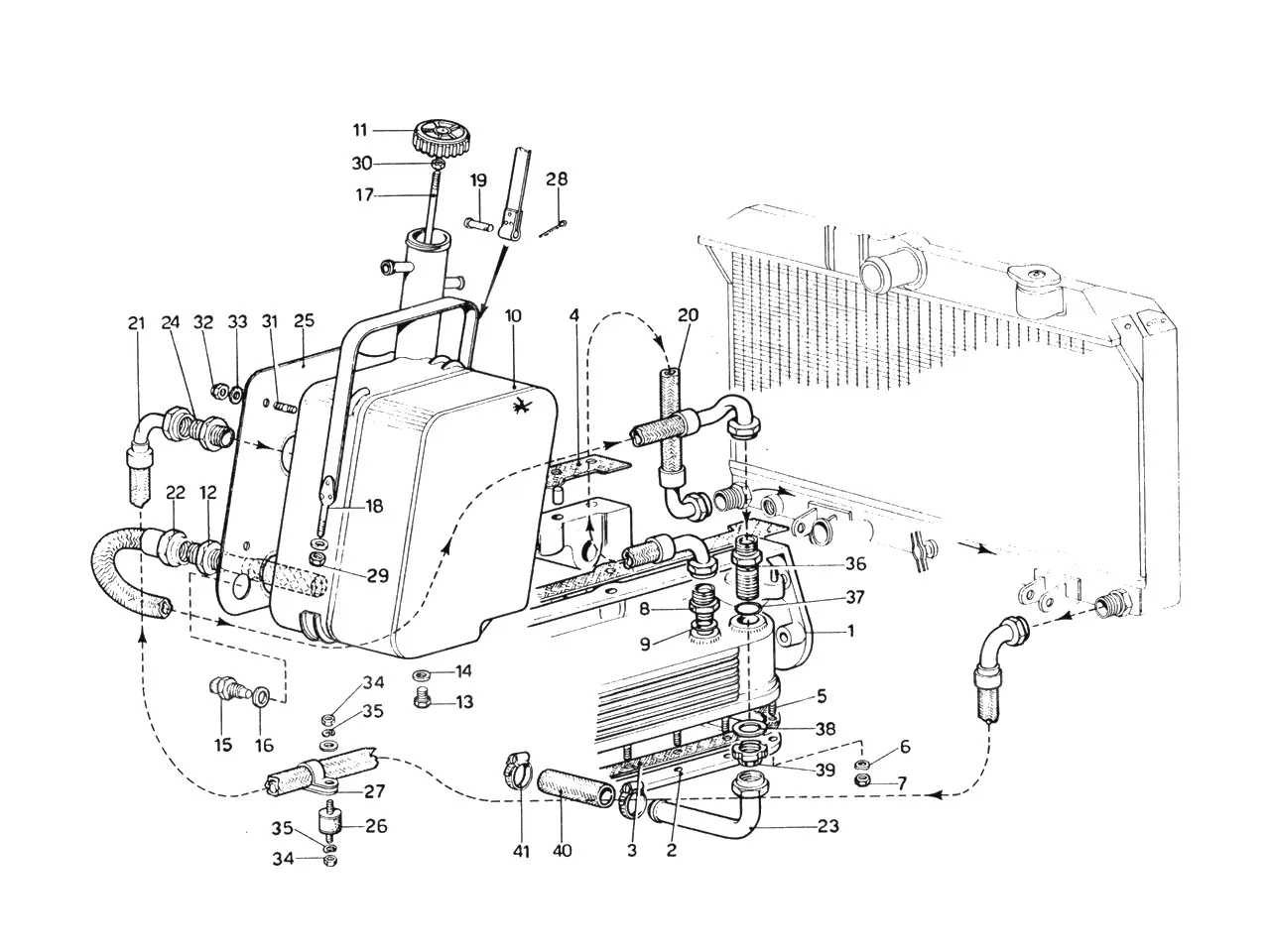

Ferrari 365 GTB4 (Daytona) Oil Sump & Oil Tank exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
19111339Ferrari Engine Sump - 9111339Price on requestContact us for price and availability
19111383Ferrari Engine Sump - 9111383Price on requestContact us for price and availability
29111340Ferrari Sump Pan - 9111340Price on requestContact us for price and availability
29111422Ferrari Sump Pan - 9111422$6,296.36Available, ships in 3-6 days
29111422/UFerrari Sump Pan - 9111422/U$6,296.36Available, ships in 3-6 days
39111342Ferrari Gasket Sump - 9111342$136.10Available, ships in 3-6 days
4100019Ferrari 365 Oil Sump Gasket - 100019$25.38In stock
49111341Ferrari Gasket - 9111341SupersededOrder 100019 instead
595920109Ferrari Stud 6X20 P1 - 95920109Price on requestContact us for price and availability
595920107Ferrari Stud 6X18 P1 - 95920107$3.76Available, ships in 3-6 days
612601271Ferrari Wavy Washer 6mm - 12601271SupersededOrder 12601279 instead
612601279Ferrari Wavy Washer 6mm - 12601279$0.19Available, ships in 3-6 days
7134041Ferrari Nut 6mm - 134041$1.80Available, ships in 3-6 days
715896221Ferrari Nut - 15896221SupersededOrder 134041 instead
895498Ferrari Joint - 95498Price on requestContact us for price and availability
995245Ferrari Gasket Washer - 95245$2.40Available, ships in 3-6 days
10830323Ferrari Part Search Results - 830323$162.25Special order, ships in 7-14 days
10830321Ferrari Oil Tank LHD - 830321Price on requestContact us for price and availability
10830403Ferrari Oil Tank LHD - 830403Price on requestContact us for price and availability
11830257Ferrari Oil Cap - 830257Price on requestContact us for price and availability
11830406Ferrari Oil Cap - 830406Price on requestContact us for price and availability
12830322Ferrari Filter - 830322$217.93Available, ships in 3-6 days
1383107Ferrari Drain Plug - 83107Price on requestContact us for price and availability
1483108Ferrari Fibre Washer 410 - 83108$2.70Special order, ships in 7-14 days
15100453Ferrari Temperature Sending Switch for Oil / Water - 100453$30.13In stock
159111462Ferrari Sender Unit - 9111462SupersededOrder 100453 instead
1610257060Ferrari/Maserati Copper Washer - 10257060$1.10In stock
1694877Ferrari Copper Washer - 94877$0.50Available, ships in 3-6 days
17100044Ferrari Cam Cover Nut - 10pack - 100044$9.85In stock
17830341Ferrari Dipstick - 830341Price on requestContact us for price and availability
17830438Ferrari Dipstick - 830438$54.28Available, ships in 3-6 days
17830405Ferrari Dipstick - 830405Price on requestContact us for price and availability
18830239Ferrari Tank Strap - 830239Price on requestContact us for price and availability
19830241Ferrari Pin - 830241$44.60Available, ships in 3-6 days
20830327Ferrari Oil Pipe LHD - 830327$1,315.68Available, ships in 3-6 days
20830409Ferrari Oil Pipe RHD - 830409$696.29Available, ships in 3-6 days
21830350Ferrari Oil Pipe LHD - 830350$1,420.48Available, ships in 3-6 days
21830408Ferrari Oil Hose RHD - 830408$1,033.62Available, ships in 3-6 days
22830325Ferrari Oil Hose LHD - 830325$2,318.71Available, ships in 3-6 days
22830410Ferrari Oil Hose RHD - 830410$1,459.45Available, ships in 3-6 days
23240446Ferrari Hose - 240446$57.79Special order, ships in 7-14 days
2495334Ferrari Union - 95334Price on requestContact us for price and availability
25830363Ferrari Part Search Results - 830363$18.44Special order, ships in 7-14 days
26102947Ferrari Vibration Dampening Support - 102947$8.31In stock
2634408Ferrari Mounting - 34408SupersededOrder 102947 instead
2620456Ferrari Mounting - 20456SupersededOrder 102947 instead
2781113Ferrari P Clip Bracket - 81113$183.78Available, ships in 3-6 days
2810796401Ferrari Split Pin - 10796401$0.13Available, ships in 3-6 days
29106013Ferrari Nyloc Nut - 106013$3.37Available, ships in 3-6 days
3195313Ferrari Stud - 95313Price on requestContact us for price and availability
32102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
3212574211Ferrari Nyloc Nut M6x1 - 12574211SupersededOrder 102948 instead
3312643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
3394703Ferrari Washer - 94703SupersededOrder 12643701 instead
3410261860Ferrari Copper Washer - 10261860$1.42In stock
3495248Ferrari Washer - 95248$0.79Available, ships in 3-6 days
3410275040Ferrari Plug - 10275040$8.05Available, ships in 3-6 days
3495468Ferrari Nut - 95468Price on requestContact us for price and availability
3410275011/AFerrari Drain Plug M22 x 1.5 - 10275011/A$7.99Available, ships in 3-6 days
35127494Ferrari Lock Washer - 127494$0.50In stock
3510516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
3695349Ferrari Union - 95349$51.40Special order, ships in 7-14 days
3795860066Ferrari Oil Seal - 95860066Price on requestContact us for price and availability
3895347Ferrari Washer - 95347Price on requestContact us for price and availability
4095350Ferrari 365Gtb4 Tank To Pump Hose - 95350$123.20Available, ships in 3-6 days
4113000490Ferrari Screw Collar 20-32mm - 13000490$1.53Available, ships in 3-6 days
10261460Ferrari Copper Washer 16x24x1.5 - 10261460$0.63Available, ships in 3-6 days
12180290Ferrari Hose Clip 19-29 - 12180290SupersededOrder 13000490 instead
10169290Ferrari Hose Clip 26-30 - 10169290SupersededOrder 13000490 instead
104022Ferrari Jubilee Clip - 104022SupersededOrder 13000390 instead
12179990Ferrari Jubilee Clip 20-32mm - 12179990SupersededOrder 13000390 instead
102007Ferrari Mounting - 102007SupersededOrder 102947 instead
15896225Ferrari Nut - 15896225SupersededOrder 134041 instead
126141Ferrari Oil Filler Cap - 126141$283.88Special order, ships in 7-14 days
94858Ferrari Plug - 94858Price on requestContact us for price and availability
10796440Ferrari Split Pin - 10796440Price on requestContact us for price and availability
106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
103372Ferrari Washer - 103372SupersededOrder 12601279 instead

All 365 GTB4 (Daytona) diagrams
