Ferrari 365 GTB4 (Daytona) — Crankshaft, Connecting Rods & Pistons (diagram 003)

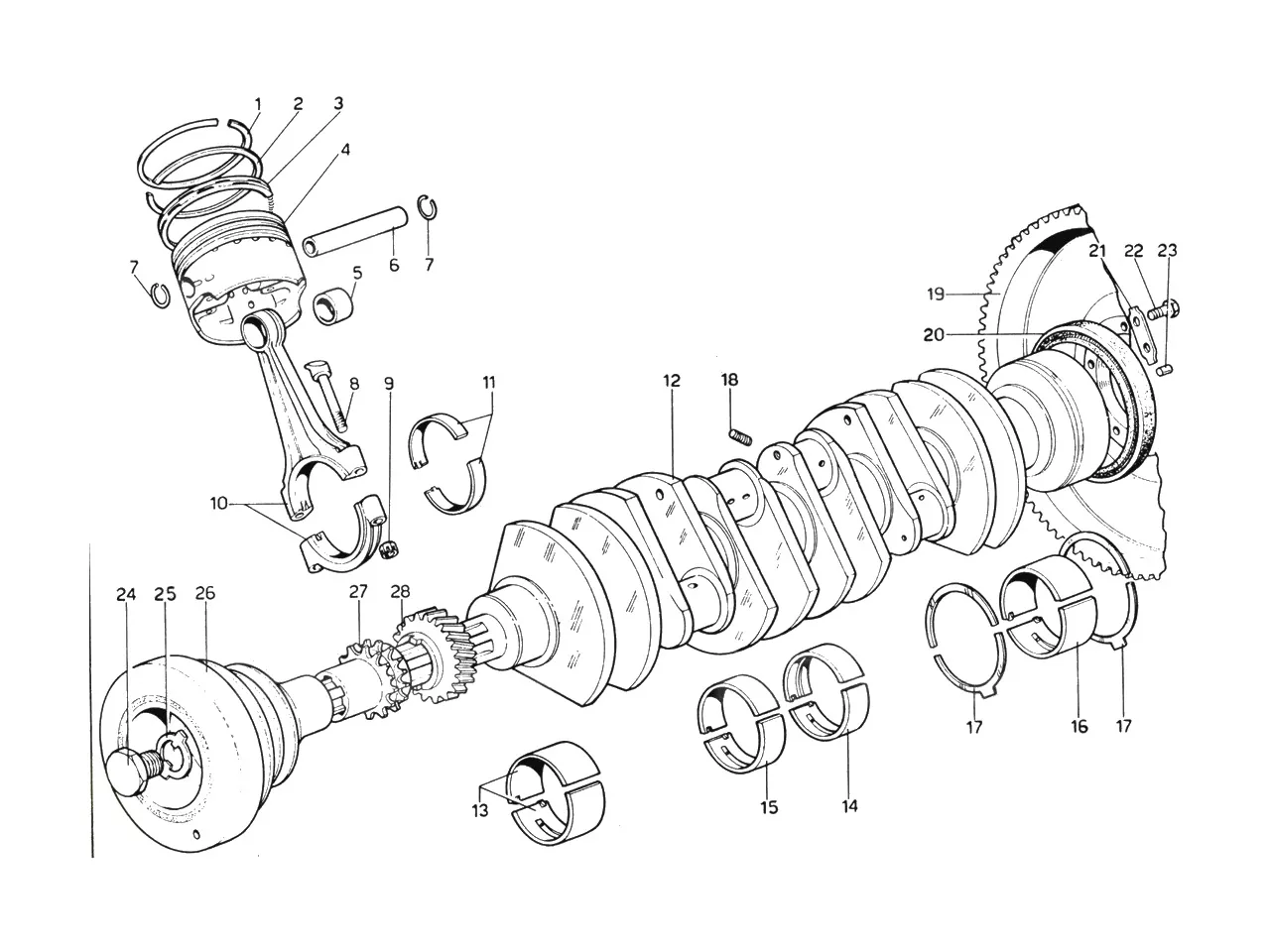

Exploded view of the crankshaft, connecting rods & pistons on the Ferrari 365 GTB4 (Daytona), with 96 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 365 GTB4 (Daytona) Crankshaft, Connecting Rods & Pistons exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1100175Ferrari Piston Ring 81.00mm - 100175$79.27Available, ships in 3-6 days
1106511Ferrari Piston Ring 81.15mm - 106511$83.30Available, ships in 3-6 days
1106514Ferrari Piston Ring 81.30mm - 106514$83.30Available, ships in 3-6 days
19140154Ferrari Piston Ring PK/7 - 9140154SupersededOrder 100175 instead
2100176Ferrari Piston Ring 81.00mm - 100176$51.10Available, ships in 3-6 days
2106512Ferrari Piston Ring 81.15mm - 106512$57.14Available, ships in 3-6 days
2106515Ferrari Piston Ring 81.30mm - 106515$58.73Available, ships in 3-6 days
29140155Ferrari Piston Ring ROS - 9140155$51.10Available, ships in 3-6 days
3100177Ferrari Piston Ring 81.00mm - 100177$303.06Available, ships in 3-6 days
3106513Ferrari Piston Ring 81.15mm - 106513$89.43Available, ships in 3-6 days
3106516Ferrari Piston Ring 81.30mm - 106516Price on requestContact us for price and availability
39140156Ferrari Piston Ring - 9140156SupersededOrder 100177 instead
4100169Ferrari Piston Bare 81.15mm - 100169$170.58Available, ships in 3-6 days
4100172Ferrari Piston Bare 81.30mm - 100172$383.12Available, ships in 3-6 days
49140157Ferrari Piston Bare 81.00mm - 9140157Price on requestContact us for price and availability
4140012Ferrari Piston Bare 81.00mm - 140012$1,070.94Available, ships in 3-6 days
4100165/AFerrari Piston Complete 81mm Standard 65457/5 - 100165/A$1,070.94Available, ships in 3-6 days
5107100Ferrari Small End Bush 18.6 x 21.65 x 20.22 - 107100$77.13Available, ships in 3-6 days
514581Ferrari Small End Bush - 14581SupersededOrder 107100 instead
614854Ferrari Piston Pin - 14854SupersededOrder 100173 instead
6100173Ferrari Gudgeon Pin - 100173$114.52Available, ships in 3-6 days
69140070Ferrari Piston Pin - 9140070SupersededOrder 100173 instead
7100174Ferrari Piston Wristpin/Circlip - 100174$6.65In stock
714594Ferrari Circlip - 14594SupersededOrder 100174 instead
8100156Ferrari Con Rod Bolt - 100156$31.22Available, ships in 3-6 days
89140020Ferrari Bolt - 9140020SupersededOrder 100156 instead
9104011Ferrari Self Locking Nut 10x1mm - 104011$21.77Available, ships in 3-6 days
914795Ferrari Self Locking Nut - 14795SupersededOrder 104011 instead
109140019Ferrari Con Rod - 9140019Price on requestContact us for price and availability
11106183/24Ferrari Connecting Rod Bearing Set of 24 - 106183/24$799.99In stock
11100151Ferrari Engine Connecting Rod Bearing undersize - 100151$75.68In stock
11106183/16Ferrari Connecting Rod Bearing Set of 16 - 106183/16$539.65In stock
11106183Ferrari Connecting Rod Bearing - 106183$34.45In stock
11100152Ferrari Con Rod Half Bearing 2nd Undersize 0.508mm - 100152$174.80Available, ships in 3-6 days
11100150Ferrari Con Rod Half Bearing Standard - 100150SupersededOrder 106183 instead
11100153Ferrari Con Rod Half Bearing 3rd Undersize 0.762mm - 100153Price on requestContact us for price and availability
11100151/AFerrari Con Rod Half Bearing 1st Undersize 0.254mm Pack 4 Pairs - 100151/A$1,001.11Available, ships in 3-6 days
11100152/AFerrari Con Rod Half Bearing 2nd Undersize 0.508mm Pack 4 Pairs - 100152/A$2,337.94Available, ships in 3-6 days
1212513Ferrari Crankshaft - 12513Price on requestContact us for price and availability
13100118Ferrari Engine Bearing - 100118$68.90In stock
13100119Engine Bearing - 100119$53.41In stock
13100122Ferrari Engine Bearing - 100122$68.90In stock
13100123Ferrari Engine Bearing - 100123$126.50In stock
13100120Ferrari Upper Main Half Bearing Shell 2nd Undersize 0.508mm - 100120$81.23Available, ships in 3-6 days
13100121Ferrari Upper Main Bearing Shell 3rd Undersize 0.762mm - 100121$69.84Available, ships in 3-6 days
13100124Ferrari Lower Main Half Bearing Shell 2nd Undersize 0.508mm - 100124$64.52Available, ships in 3-6 days
13100125Ferrari Lower Main Bearing Shell 3rd Undersize 0.762mm - 100125$69.84Available, ships in 3-6 days
139100035Ferrari Half Main Bearing Standard - 9100035SupersededOrder 100118 instead
139100602Ferrari Front Lower Bearing - 9100602SupersededOrder 100122 instead
14100134Ferrari Engine Bearing - 100134$33.72In stock
149100618Ferrari Central Bearing - 9100618SupersededOrder 100134 instead
159100620Ferrari Intermediate Upper Bearing - 9100620SupersededOrder 100126 instead
15100126Ferrari Main Bearing Shell Standard - 100126$193.26Available, ships in 3-6 days
159100619Ferrari Intermediate Lower Bearing - 9100619SupersededOrder 100130 instead
15100130Ferrari Main Bearing Shell Standard - 100130$87.75Available, ships in 3-6 days
16100138Ferrari Main Half Bearing Shell Standard - 100138$88.70Available, ships in 3-6 days
169100037Ferrari Rear Upper Bearing - 9100037SupersededOrder 100138 instead
169100603Ferrari Rear Lower Bearing - 9100603SupersededOrder 100142 instead
16100142Ferrari Main Half Bearing Shell Standard - 100142$124.74Available, ships in 3-6 days
17100146Ferrari Crankshaft Thrust Washers - 100146$43.84In stock
17100147Ferrari Thrust Washer Pair - 100147$14.19In stock
1710345Lamborghini Espada/Jarama Ignition Wire Set - 10345SupersededOrder 100146 instead
17113984Ferrari Thrust Washers Per Pair 1st Oversize 0.127mm - 113984$183.83Available, ships in 3-6 days
1814326150Ferrari/Maserati Threaded Plug - 14326150$2.56In stock
1894391/7Ferrari Crankshaft Oil Gallery Plug 7x1x30mm - 94391/7Price on requestSpecial order, ships in 7-14 days
1912644Ferrari Flywheel - 12644$4,325.95Available, ships in 3-6 days
1912822Ferrari Flywheel - 12822Price on requestContact us for price and availability
20138391Ferrari Rear Main Oil Seal - 138391$39.60In stock
20104864Ferrari Rear Main Oil Seal - 104864SupersededOrder 138391 instead
21100187Ferrari Flywheel Lock Tab - 100187$8.96In stock
2112124Ferrari Locktab - 12124SupersededOrder 100187 instead
2295365Ferrari Bolt - 95365SupersededOrder 102814 instead
22102814Ferrari Flywheel Bolt - 102814$28.31Available, ships in 3-6 days
23100185Ferrari Dowel - 100185$22.36Available, ships in 3-6 days
2394129Ferrari Location Peg - 94129SupersededOrder 100185 instead
2412157Ferrari Crankshaft Damper Retaining Bolt - 12157$150.97Available, ships in 3-6 days
2592987Ferrari Crankshaft Damper Locktab - 92987$19.74Available, ships in 3-6 days
26220336Ferrari Crankshaft Damper - 220336Price on requestContact us for price and availability
2712617Ferrari Crankshaft Sprocket - 12617Price on requestContact us for price and availability
2812654Ferrari Crank Timing Gear - 12654Price on requestContact us for price and availability
2812765Ferrari Crank Timing Gear - 12765$338.71Available, ships in 3-6 days
109738Ferrari Con Rod Complete - 109738$4,840.00Available, ships in 3-6 days
14447Ferrari Con Rod Half Bearing Standard - 14447SupersededOrder 106183 instead
100165Ferrari Piston Bare 81.00mm - 100165$218.42Available, ships in 3-6 days
336420Ferrari Piston Ring 81.00mm - 336420SupersededOrder 100177 instead
95140224Ferrari Piston Ring 81.00mm - 95140224$51.10Available, ships in 3-6 days
95140225Ferrari Piston Ring 81.15mm - 95140225$57.14Available, ships in 3-6 days
95140226Ferrari Piston Ring 81.30mm - 95140226$58.73Available, ships in 3-6 days
12480Ferrari Ring Gear - 12480Price on requestContact us for price and availability
4150813Ferrari Thrust Washer Per Pair - 4150813SupersededOrder 100146 instead
-104823Ferrari Flywheel Ring Gear - 104823$674.40Available, ships in 3-6 days
-106943Ferrari Main Bearing Set 1st Undersize 0.254mm - 106943$1,459.06Available, ships in 3-6 days
-106944Ferrari Main Bearing Set 2nd Undersize 0.508mm - 106944Price on requestContact us for price and availability
-106945Ferrari Main Bearing Set 3rd Undersize 0.762mm - 106945$1,835.09Available, ships in 3-6 days
-106942Ferrari Main Bearing Set Standard - 106942$1,608.16Available, ships in 3-6 days
-100165/RRFerrari Piston Ring Set 81mm std - 100165/RR$218.42Available, ships in 3-6 days
