Ferrari 365 GTB4 (Daytona) — Timing (diagram 006)

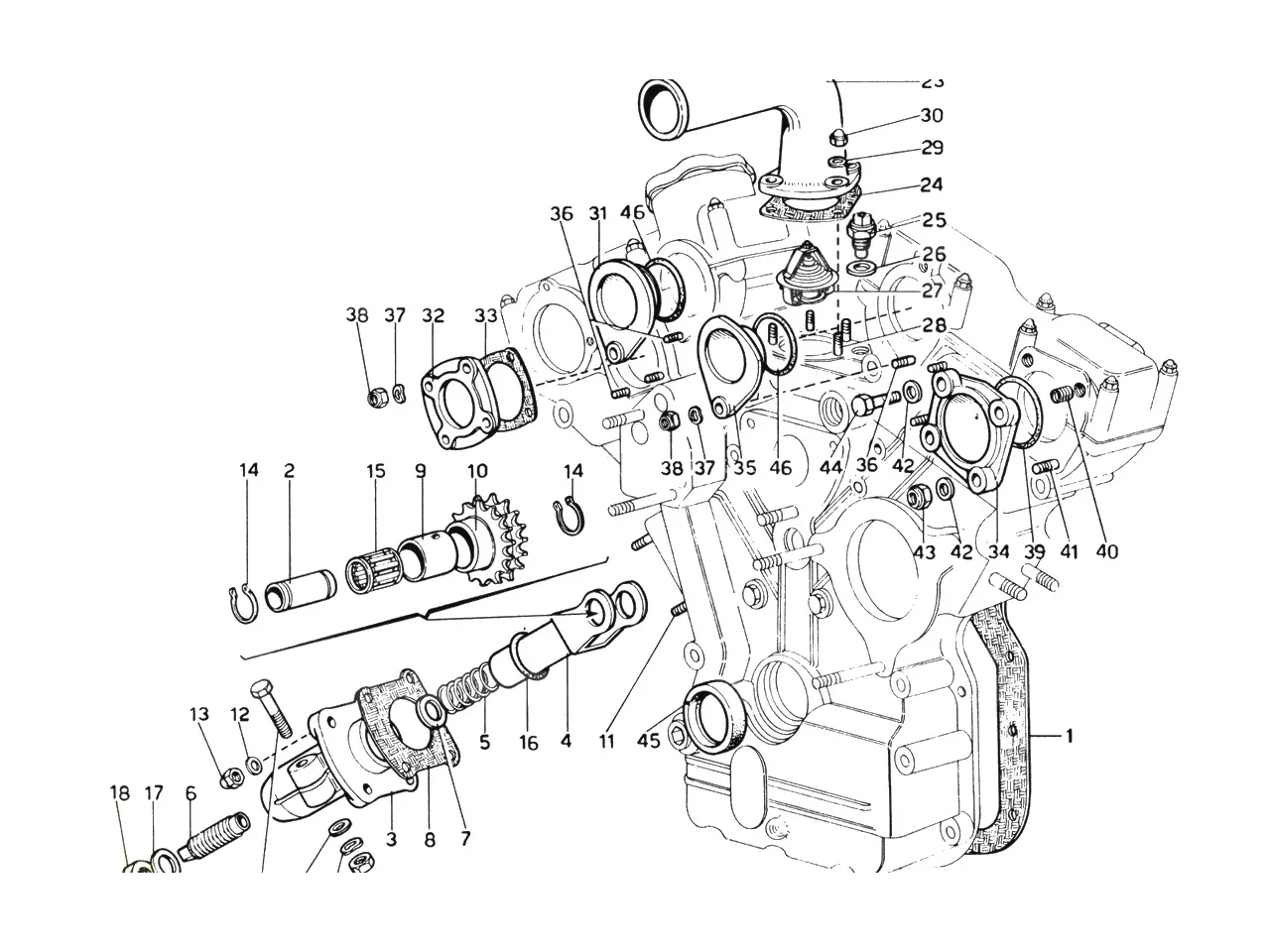

Exploded view of the timing on the Ferrari 365 GTB4 (Daytona), with 48 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/006.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 220287 | Ferrari 365 Gasket - 220287 | $77.56 | In stock |
| 2 | 22712 | Ferrari Timing Chain Idler Gear Bush - 22712 | $174.20 | Available, ships in 3-6 days |
| 3 | 22488 | Ferrari Spring Adjuster Housing - 22488 | Price on request | Contact us for price and availability |
| 4 | 22989 | Ferrari Chain Pad - 22989 | Price on request | Contact us for price and availability |
| 5 | 22258 | Ferrari Tensioner Spring - 22258 | Price on request | Contact us for price and availability |
| 6 | 22489 | Ferrari Timing Chain Tension Screw - 22489 | Price on request | Contact us for price and availability |
| 7 | 22145 | Ferrari Timing Chain Spacer - 22145 | Price on request | Contact us for price and availability |
| 8 | 220290 | Ferrari Timing Tensioner Gasket - 220290 | $8.58 | In stock |
| 9 | 220219 | Ferrari Bush - 220219 | $114.00 | Special order, ships in 7-14 days |
| 10 | 220218 | Ferrari Sprocket - 220218 | Price on request | Contact us for price and availability |
| 11 | 95920120 | Ferrari Stud 6X18 P5 - 95920120 | Price on request | Contact us for price and availability |
| 12 | 12601271 | Ferrari Wavy Washer 6mm - 12601271 | Superseded | Order 12601279 instead |
| 12 | 12601279 | Ferrari Wavy Washer 6mm - 12601279 | $0.19 | Available, ships in 3-6 days |
| 13 | 100436 | Ferrari Water Pump Nut - 100436 | $6.44 | In stock |
| 14 | 11066776 | Ferrari Snap Ring - 11066776 | Price on request | Contact us for price and availability |
| 15 | 95893001 | Ferrari Caged Needle Bearing - 95893001 | $25.59 | Available, ships in 3-6 days |
| 16 | 104535 | Ferrari O Ring-104535 | $2.15 | In stock |
| 17 | 94179 | Ferrari Washer - 94179 | Price on request | Contact us for price and availability |
| 19 | 95880830 | Ferrari Bolt - 95880830 | $0.59 | Available, ships in 3-6 days |
| 20 | 100964 | Ferrari Washer - 100964 | Price on request | Contact us for price and availability |
| 21 | 10516870 | Ferrari Spring Washer - 10516870 | Price on request | Contact us for price and availability |
| 22 | 95900703 | Ferrari Lock Nut - 95900703 | Price on request | Contact us for price and availability |
| 23 | 220289 | Ferrari Top Hose Casting - 220289 | Price on request | Contact us for price and availability |
| 24 | 220288 | Ferrari 365 GTB 4 DaytonaThermostat Gasket - 220288 | $5.58 | In stock |
| 25 | 100453 | Ferrari Temperature Sending Switch for Oil / Water - 100453 | $30.13 | In stock |
| 26 | 10257060 | Ferrari/Maserati Copper Washer - 10257060 | $1.10 | In stock |
| 26 | 94877 | Ferrari Copper Washer - 94877 | $0.50 | Available, ships in 3-6 days |
| 27 | 102910 | Ferrari Thermostat 83c - 102910 | $73.89 | Special order, ships in 7-14 days |
| 28 | 95920107 | Ferrari Stud 6X18 P1 - 95920107 | $3.76 | Available, ships in 3-6 days |
| 30 | 102741 | Ferrari/Maserati Nyloc Nut M6 - 102741 | $0.45 | In stock |
| 31 | 220284 | Ferrari Casing - 220284 | $114.77 | Special order, ships in 7-14 days |
| 32 | 220216 | Ferrari Casing - 220216 | $46.02 | Special order, ships in 7-14 days |
| 33 | 220220 | Ferrari End Plate Gasket-220220 | $8.67 | In stock |
| 34 | 220241 | Ferrari End Plate - 220241 | Price on request | Contact us for price and availability |
| 35 | 220346 | Ferrari Casing - 220346 | Price on request | Contact us for price and availability |
| 36 | 95920105 | Ferrari Stud 6x16 P1 - 95920105 | Price on request | Contact us for price and availability |
| 38 | 102948 | Ferrari Nyloc Nut M6 x 8 - 102948 | $0.46 | Available, ships in 3-6 days |
| 38 | 12574211 | Ferrari Nyloc Nut M6x1 - 12574211 | Superseded | Order 102948 instead |
| 39 | 95860018 | Ferrari 365 GTB 4 Daytona O Ring-95860018 | $3.78 | In stock |
| 41 | 95920409 | Ferrari Stud 8X25 P2 - 95920409 | Price on request | Contact us for price and availability |
| 42 | 103044 | Ferrari Washer - 103044 | Price on request | Contact us for price and availability |
| 43 | 106013 | Ferrari Nyloc Nut - 106013 | $3.37 | Available, ships in 3-6 days |
| 44 | 95880511 | Ferrari Bolt 8x25 UNI5740 - 95880511 | $3.28 | Available, ships in 3-6 days |
| 45 | 95850219 | Ferrari Oil Seal - 95850219 | $53.61 | Available, ships in 3-6 days |
| 46 | 100049 | Ferrari O-Ring - 100049 | $4.98 | In stock |
| 10261460 | Ferrari Copper Washer 16x24x1.5 - 10261460 | $0.63 | Available, ships in 3-6 days | |
| 9111462 | Ferrari Sender Unit - 9111462 | Superseded | Order 100453 instead | |
| 103372 | Ferrari Washer - 103372 | Superseded | Order 12601279 instead |
