Ferrari 365 GTB4 (Daytona) — Carbuettor Weber 40 Dcn/20 (diagram 012)

Exploded view of the carbuettor weber 40 dcn/20 on the Ferrari 365 GTB4 (Daytona), with 91 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

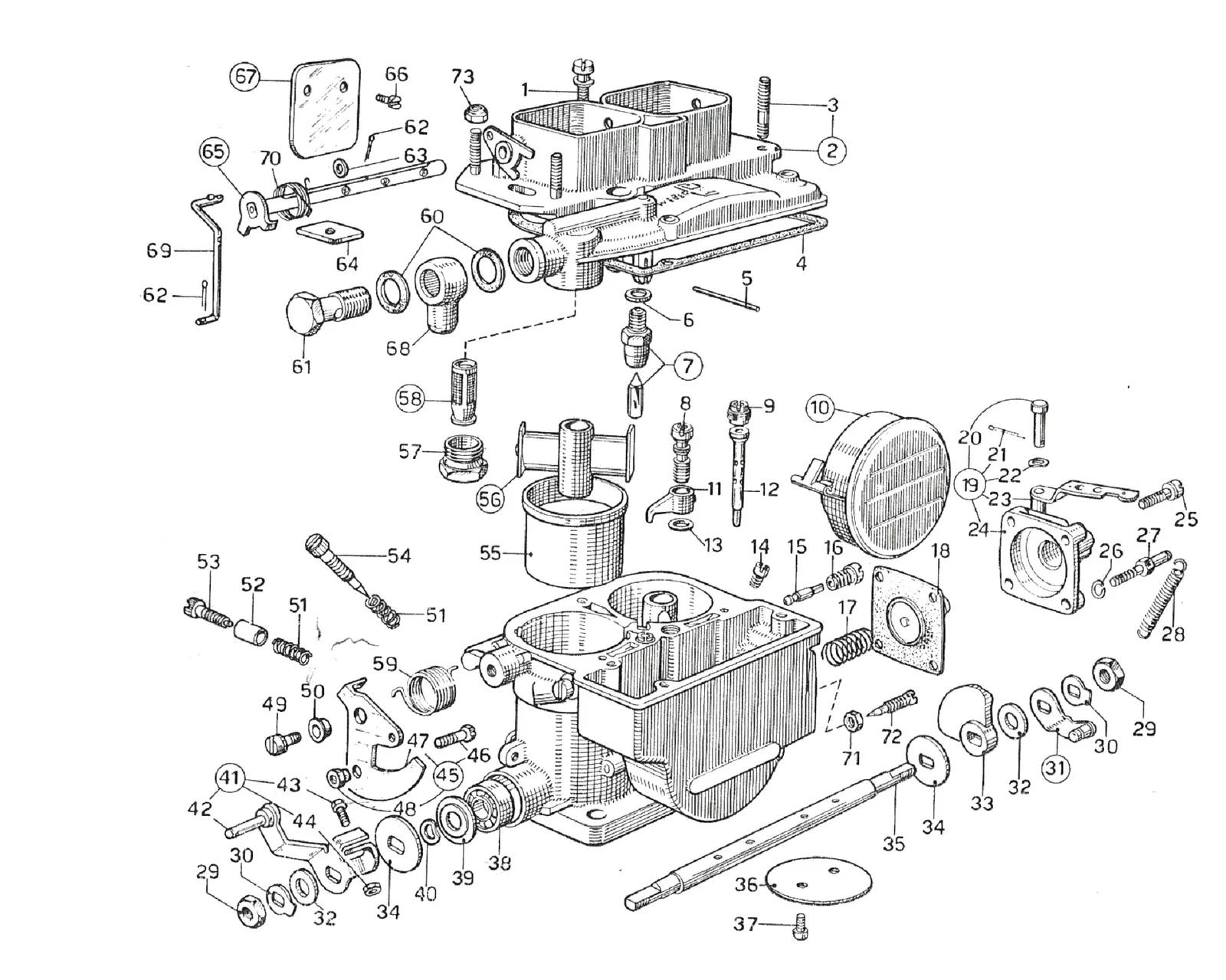

Ferrari 365 GTB4 (Daytona) Carbuettor Weber 40 Dcn/20 exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
164700.005Ferrari Cover Screw - 64700.005Price on requestSpecial order, ships in 7-14 days
231716.099Ferrari Top Cover DCN/20 - 31716.099Price on requestSpecial order, ships in 7-14 days
364955.003Ferrari Stud - 64955.003Price on requestSpecial order, ships in 7-14 days
441705.026Ferrari Top Cover Gasket DCN - 41705.026$30.82Available, ships in 3-6 days
552000.010Ferrari Float Pin - 52000.010Price on requestAvailable, ships in 3-6 days
641535.015Ferrari Washer - 41535.015Price on requestSpecial order, ships in 7-14 days
764240.015Ferrari Needle Valve - 64240.015Price on requestSpecial order, ships in 7-14 days
779503.175Ferrari Needle Valve 175 - 79503.175$40.29Available, ships in 3-6 days
864290.007Ferrari Valve - 64290.007Price on requestSpecial order, ships in 7-14 days
864290.014Ferrari Valve - 64290.014Price on requestSpecial order, ships in 7-14 days
941360.001Ferrari Jet - 41360.001Price on requestSpecial order, ships in 7-14 days
1041015.012Ferrari Float 40Dcn20 - 41015.012Price on requestSpecial order, ships in 7-14 days
1141252.018Ferrari Jet - 41252.018Price on requestSpecial order, ships in 7-14 days
1261440.488Ferrari Tube - 61440.488$10.18Available, ships in 3-6 days
1341530.012Ferrari Washer - 41530.012Price on requestSpecial order, ships in 7-14 days
1441120.001Ferrari Main Jet - 41120.001Price on requestSpecial order, ships in 7-14 days
1541160.001Ferrari Jet - 41160.001Price on requestSpecial order, ships in 7-14 days
1652570.005Ferrari Screw - 52570.005Price on requestSpecial order, ships in 7-14 days
1747600.107Ferrari Spring - 47600.107$2.61Available, ships in 3-6 days
1847407.014Ferrari Carb Diaphragm - 47407.014$62.64Available, ships in 3-6 days
1847407.048Ferrari Carb Diaphragm - 47407.048Price on requestSpecial order, ships in 7-14 days
1932486.013Ferrari Cover - 32486.013Price on requestSpecial order, ships in 7-14 days
1932486.036Ferrari Cover - 32486.036Price on requestSpecial order, ships in 7-14 days
2052000.021Ferrari Pin - 52000.021Price on requestSpecial order, ships in 7-14 days
2052010.033Ferrari Pin - 52010.033Price on requestSpecial order, ships in 7-14 days
2132610.005Ferrari Split Pin - 32610.005$1.50Available, ships in 3-6 days
2132610.006Ferrari Carb Split Pin - 32610.006Price on requestSpecial order, ships in 7-14 days
2255530.006Ferrari Carb Washer - 55530.006Price on requestSpecial order, ships in 7-14 days
2345089.001Ferrari Carb Lever - 45089.001Price on requestSpecial order, ships in 7-14 days
2345138.008Ferrari Carb Lever - 45138.008Price on requestSpecial order, ships in 7-14 days
2432484.001Ferrari Cover - 32484.001Price on requestSpecial order, ships in 7-14 days
2564700.004Ferrari Screw - 64700.004Price on requestSpecial order, ships in 7-14 days
2655525.007Ferrari Rubber Washer - 55525.007Price on requestSpecial order, ships in 7-14 days
2752025.001Ferrari Pin - 52025.001Price on requestSpecial order, ships in 7-14 days
2847605.018Ferrari Carb Spring - 47605.018Price on requestSpecial order, ships in 7-14 days
2934710.003Ferrari Carb Nut - 34710.003Price on requestSpecial order, ships in 7-14 days
3055520.004Ferrari Tab Washer - 55520.004Price on requestSpecial order, ships in 7-14 days
3145082.002Ferrari Carb Lever - 45082.002Price on requestSpecial order, ships in 7-14 days
3255510.006Ferrari Washer - 55510.006Price on requestSpecial order, ships in 7-14 days
3314850.027Ferrari Fuel Cam - 14850.027Price on requestSpecial order, ships in 7-14 days
3314852.009Ferrari Fuel Cam - 14852.009Price on requestSpecial order, ships in 7-14 days
3455555.005Ferrari Carb Spacer - 55555.005Price on requestSpecial order, ships in 7-14 days
3510005.408Ferrari Spindle - 10005.408Price on requestSpecial order, ships in 7-14 days
3664005.036Ferrari Butter Fly - 64005.036Price on requestSpecial order, ships in 7-14 days
3664005.087Ferrari Butter Fly - 64005.087Price on requestSpecial order, ships in 7-14 days
3764520.027Ferrari Screw - 64520.027Price on requestSpecial order, ships in 7-14 days
3832650.001Ferrari Bearing - 32650.001Price on requestSpecial order, ships in 7-14 days
3958000.002Ferrari Seal - 58000.002Price on requestSpecial order, ships in 7-14 days
4055530.005Ferrari Carb Washer - 55530.005Price on requestSpecial order, ships in 7-14 days
4145041.011Ferrari Lever - 45041.011Price on requestSpecial order, ships in 7-14 days
4245041.005Ferrari Lever - 45041.005Price on requestSpecial order, ships in 7-14 days
4364595.004Ferrari Screw - 64595.004Price on requestSpecial order, ships in 7-14 days
4434705.001Ferrari Nut - 34705.001Price on requestSpecial order, ships in 7-14 days
4545034.038Ferrari Lever - 45034.038Price on requestSpecial order, ships in 7-14 days
4664800.002Ferrari Screw - 64800.002Price on requestSpecial order, ships in 7-14 days
4745032.110Ferrari Lever - 45032.110Price on requestSpecial order, ships in 7-14 days
4834720.002Ferrari Nut - 34720.002Price on requestSpecial order, ships in 7-14 days
4964700.012Ferrari Carb Screw - 64700.012Price on requestSpecial order, ships in 7-14 days
5012775.010Ferrari Carb Bush - 12775.010Price on requestSpecial order, ships in 7-14 days
5147600.007Ferrari Spring - 47600.007Price on requestSpecial order, ships in 7-14 days
5212785.013Ferrari Distance Piece - 12785.013Price on requestSpecial order, ships in 7-14 days
5364590.002Ferrari Idle Screw - 64590.002$1.44Available, ships in 3-6 days
5464750.001Ferrari Idle Adj Screw - 64750.001$17.44Available, ships in 3-6 days
5464750.024Ferrari Idle Adj Screw - 64750.024Price on requestSpecial order, ships in 7-14 days
5534914.019Ferrari Choke - 34914.019Price on requestSpecial order, ships in 7-14 days
5631956.004Ferrari Centratore - 31956.004Price on requestSpecial order, ships in 7-14 days
5761002.018Ferrari Filter Plug - 61002.018Price on requestSpecial order, ships in 7-14 days
5837022.002Ferrari Filter - 37022.002Price on requestSpecial order, ships in 7-14 days
5837022.010Ferrari Filter - 37022.010Price on requestAvailable, ships in 3-6 days
5947610.003Ferrari Spring - 47610.003Price on requestSpecial order, ships in 7-14 days
6041530.001Ferrari Carburettor Fibre Washer 41530.001 - 41530.001$3.34Available, ships in 3-6 days
6112715.021Ferrari Banjo Bolt DCNF - 12715.021$36.70Available, ships in 3-6 days
6355510.056Ferrari Washer - 55510.056Price on requestSpecial order, ships in 7-14 days
6452135.010Ferrari Cover - 52135.010Price on requestSpecial order, ships in 7-14 days
6510020.220Ferrari Alberino avviamento - 10020.220Price on requestSpecial order, ships in 7-14 days
6664525.003Ferrari Screw - 64525.003Price on requestSpecial order, ships in 7-14 days
6764010.024Ferrari Valve - 64010.024Price on requestSpecial order, ships in 7-14 days
6810354.012Ferrari Union - 10354.012Price on requestSpecial order, ships in 7-14 days
6961280.075Ferrari Choke Rod - 61280.075Price on requestSpecial order, ships in 7-14 days
7047610.036Ferrari Spring - 47610.036Price on requestSpecial order, ships in 7-14 days
7264750.010Ferrari Screw - 64750.010Price on requestSpecial order, ships in 7-14 days
95180537Ferrari Carb Washer - 95180537Price on requestContact us for price and availability
95180575Ferrari Ferrule - 95180575Price on requestContact us for price and availability
95180543Ferrari Lever - 95180543Price on requestContact us for price and availability
95180546Ferrari Return Spring - 95180546Price on requestContact us for price and availability
95180608Ferrari Screw - 95180608Price on requestContact us for price and availability
95180631Ferrari Valve - 95180631Price on requestContact us for price and availability
-95180002Ferrari Carb 40DCN 20 - 95180002Price on requestContact us for price and availability
-920209.05Ferrari Carb Gasket Set 40 DCN - 920209.05$20.89Available, ships in 3-6 days
-31716.064Ferrari Carb Top Daytona LM - 31716.064Price on requestSpecial order, ships in 7-14 days
-52850.003Ferrari Carb Trumpet Daytona LM - 52850.003Price on requestSpecial order, ships in 7-14 days

All 365 GTB4 (Daytona) diagrams
