Ferrari 365 GTB4 (Daytona) — Fuel Pumps & Fuel Pipes (diagram 013)

Exploded view of the fuel pumps & fuel pipes on the Ferrari 365 GTB4 (Daytona), with 48 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

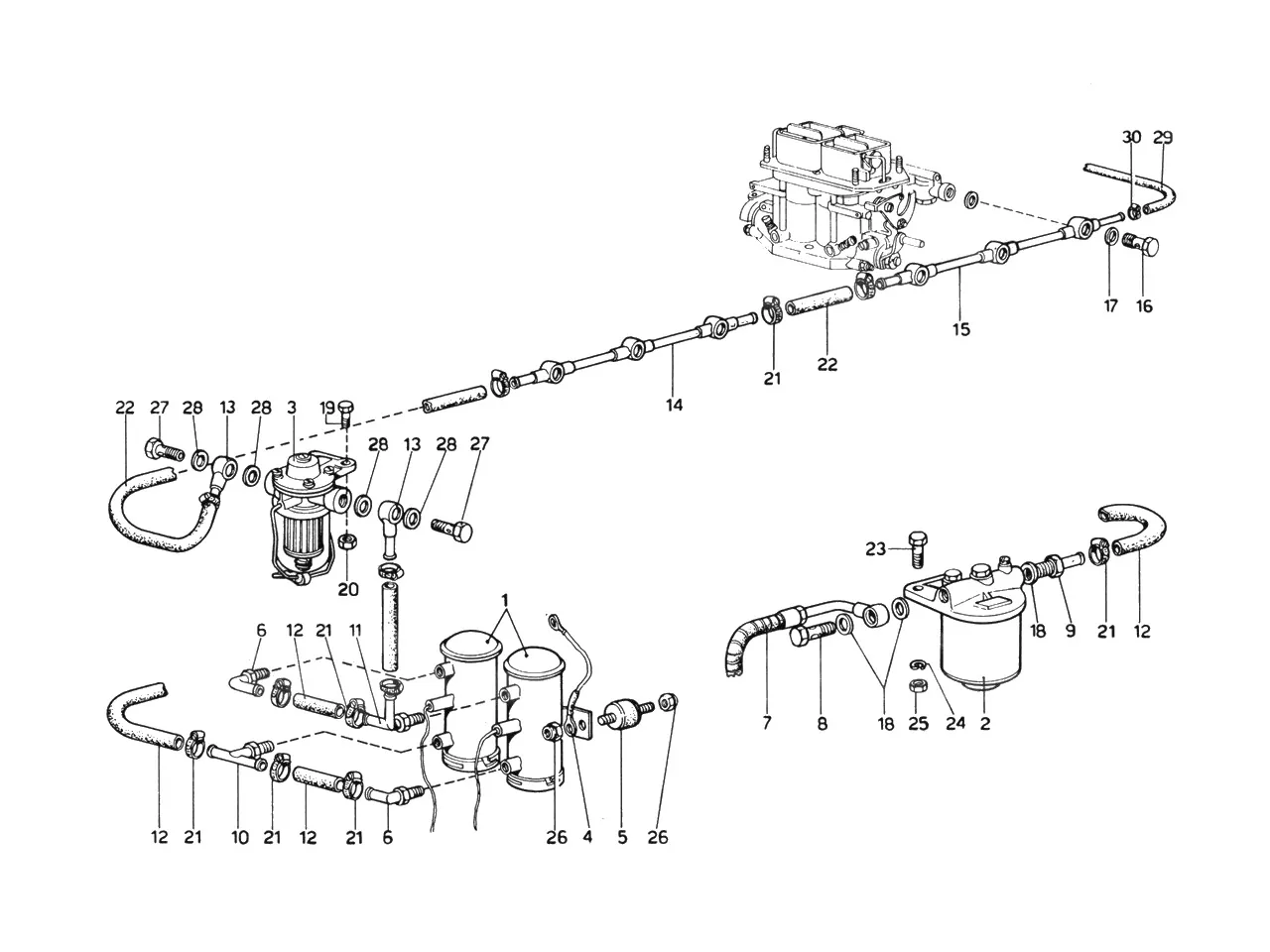

Ferrari 365 GTB4 (Daytona) Fuel Pumps & Fuel Pipes exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1100245BFerrari Bendix Fuel Pump - 100245B$251.90In stock
1100245Ferrari Fuel Pump - 100245$294.80In stock
295180050Ferrari Fuel Filter - 95180050$26.29In stock
234341Ferrari Filter Housing FISPA - 34341SupersededOrder 107486 instead
2107486Ferrari Fuel Filter Housing FIAMM - 107486$1,167.75Available, ships in 3-6 days
395340001Ferrari Fuel Regulator - 95340001$434.50In stock
395180053Ferrari Fuel Filter&Spring (Small) - 95180053$24.75Available, ships in 3-6 days
395340001/GBGFerrari Glass Bowl Gasket (Fispa Fuel Regulator) - 95340001/GBG$13.20Available, ships in 3-6 days
434403Ferrari Earth Wire - 34403Price on requestContact us for price and availability
5102947Ferrari Vibration Dampening Support - 102947$8.31In stock
534408Ferrari Mounting - 34408SupersededOrder 102947 instead
695228Ferrari Connection - 95228Price on requestContact us for price and availability
79181124Ferrari Fuel Hose Tank To Filter - 9181124Price on requestContact us for price and availability
895253Ferrari Oil Banjo Bolt - 95253Price on requestContact us for price and availability
995433Ferrari Cover - 95433Price on requestContact us for price and availability
1095381Ferrari T Piece - 95381Price on requestContact us for price and availability
1195385Ferrari Elbow - 95385$281.40Available, ships in 3-6 days
11105067Ferrari Fuel Pump T Piece Union - 105067$281.40Available, ships in 3-6 days
1395369Ferrari Banjo Fuel - 95369Price on requestContact us for price and availability
149180999Ferrari Fuel Pipe - 9180999Price on requestContact us for price and availability
159180998Ferrari Fuel Pipe - 9180998Price on requestContact us for price and availability
1695437Ferrari Joint - 95437Price on requestContact us for price and availability
1741530.001Ferrari Carburettor Fibre Washer 41530.001 - 41530.001$3.34Available, ships in 3-6 days
1892786Ferrari Gasket - 92786Price on requestContact us for price and availability
1910902124Ferrari Screw - 10902124$0.29In stock
1995880306Ferrari Bolt 6x16 - 95880306SupersededOrder 10902124 instead
20102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
2012574211Ferrari Nyloc Nut M6x1 - 12574211SupersededOrder 102948 instead
2113000190Ferrari Hose Clip 10-16mm - 13000190$1.09Available, ships in 3-6 days
21104879Ferrari Clip - 104879SupersededOrder 13000190 instead
2395880804Ferrari Bolt 10X25 Uni5740 - 95880804Price on requestContact us for price and availability
2410516870Ferrari Spring Washer - 10516870Price on requestContact us for price and availability
2595900703Ferrari Lock Nut - 95900703Price on requestContact us for price and availability
2794660Ferrari Bolt - 94660$41.75Available, ships in 3-6 days
2794660/AFerrari Banjo Bolt - 94660/A$41.50Available, ships in 3-6 days
284495Ferrari O-Ring-93353$2.99In stock
2810298460Ferrari Washer - 10298460$1.10In stock
30157990Ferrari Hose Retaining Clip D. 7 - 11 x 5 - 157990$4.14Available, ships in 3-6 days
30102721Ferrari Clip - 102721SupersededOrder 157990 instead
10902121Ferrari Bolt - 10902121SupersededOrder 10902124 instead
100248Ferrari Cable - 100248Price on requestContact us for price and availability
100382Ferrari Clip - 100382Price on requestContact us for price and availability
12179090Ferrari Clip - 12179090SupersededOrder 157990 instead
306402Ferrari Filter Assy - 306402Price on requestContact us for price and availability
12179490Ferrari Hose Clip - 12179490SupersededOrder 13000190 instead
12179690Ferrari Hose Clip - 12179690SupersededOrder 13000190 instead
100385Ferrari Union - 100385$64.52Available, ships in 3-6 days
-34342AFerrari Fispa Mechanical Fuel Pump - 34342A$668.89In stock
