Ferrari 365 GTB4 (Daytona) — Fuel Pumps & Fuel Pipes (1974 Revision - Cars With Air Pollution System) (diagram 013A)

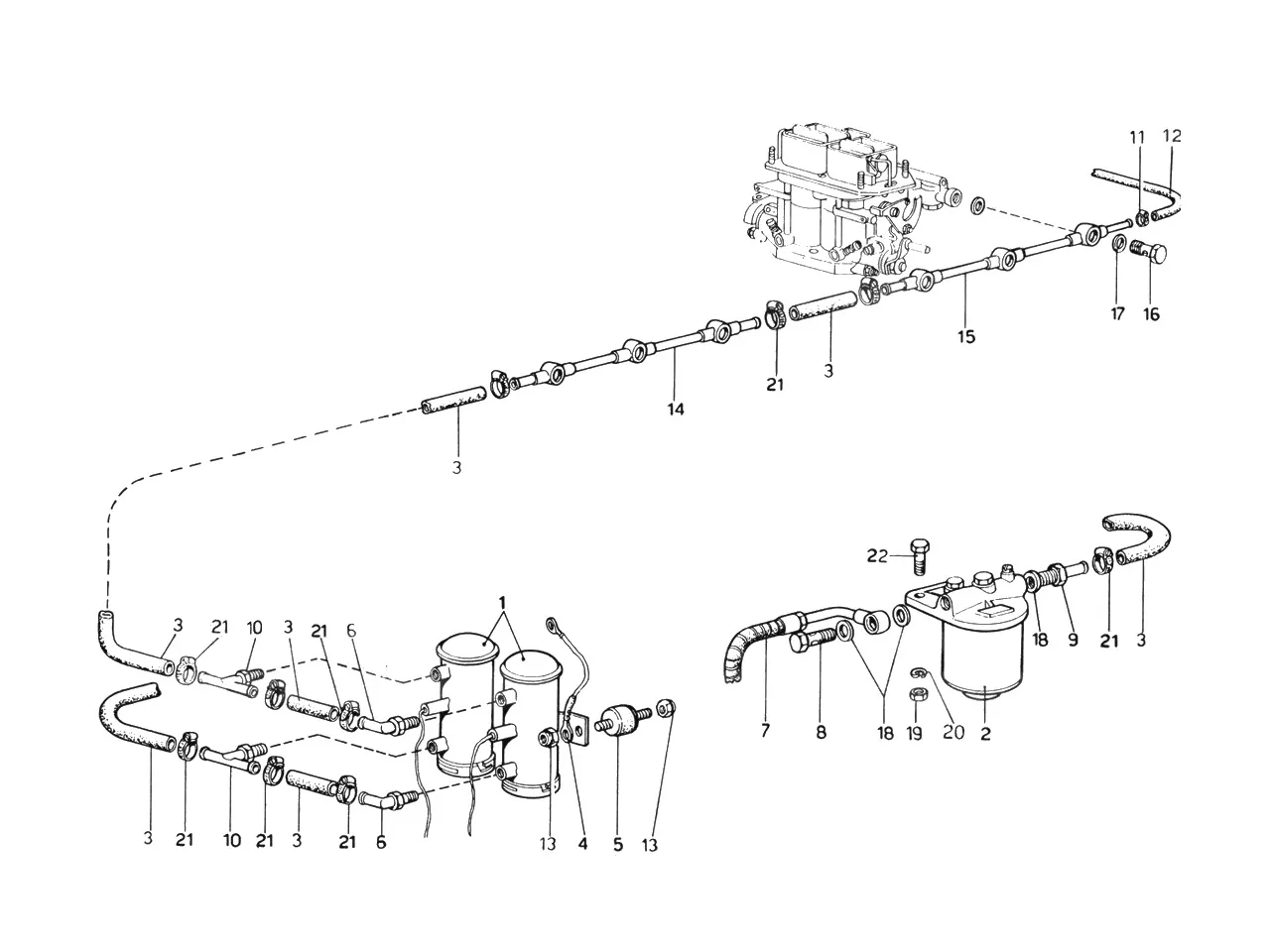

Exploded view of the fuel pumps & fuel pipes (1974 revision - cars with air pollution system) on the Ferrari 365 GTB4 (Daytona), with 38 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/013A.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 100245B | Ferrari Bendix Fuel Pump - 100245B | $251.90 | In stock |
| 1 | 100245 | Ferrari Fuel Pump - 100245 | $294.80 | In stock |
| 1 | 34410 | Ferrari Fuel Pump - 34410 | Superseded | Order 100245 instead |
| 2 | 34341 | Ferrari Filter Housing FISPA - 34341 | Superseded | Order 107486 instead |
| 2 | 107486 | Ferrari Fuel Filter Housing FIAMM - 107486 | $1,167.75 | Available, ships in 3-6 days |
| 3 | 95596 | Ferrari Tube - 95596 | Price on request | Contact us for price and availability |
| 4 | 34403 | Ferrari Earth Wire - 34403 | Price on request | Contact us for price and availability |
| 5 | 102947 | Ferrari Vibration Dampening Support - 102947 | $8.31 | In stock |
| 5 | 20456 | Ferrari Mounting - 20456 | Superseded | Order 102947 instead |
| 6 | 95228 | Ferrari Connection - 95228 | Price on request | Contact us for price and availability |
| 7 | 9181124 | Ferrari Fuel Hose Tank To Filter - 9181124 | Price on request | Contact us for price and availability |
| 8 | 103402 | Ferrari Banjo Bolt - 103402 | $68.26 | Available, ships in 3-6 days |
| 8 | 95038 | Ferrari Banjo Bolt - 95038 | Superseded | Order 103402 instead |
| 9 | 95433 | Ferrari Cover - 95433 | Price on request | Contact us for price and availability |
| 10 | 95381 | Ferrari T Piece - 95381 | Price on request | Contact us for price and availability |
| 11 | 157990 | Ferrari Hose Retaining Clip D. 7 - 11 x 5 - 157990 | $4.14 | Available, ships in 3-6 days |
| 11 | 102721 | Ferrari Clip - 102721 | Superseded | Order 157990 instead |
| 12 | 95597 | Ferrari Vapour Lock Pipe - 95597 | Price on request | Contact us for price and availability |
| 13 | 102948 | Ferrari Nyloc Nut M6 x 8 - 102948 | $0.46 | Available, ships in 3-6 days |
| 13 | 12574211 | Ferrari Nyloc Nut M6x1 - 12574211 | Superseded | Order 102948 instead |
| 14 | 9181754 | Ferrari Pipe - 9181754 | Price on request | Contact us for price and availability |
| 15 | 9181755 | Ferrari Pipe - 9181755 | Price on request | Contact us for price and availability |
| 16 | 95437 | Ferrari Joint - 95437 | Price on request | Contact us for price and availability |
| 17 | 9181742 | Ferrari Gasket - 9181742 | Price on request | Contact us for price and availability |
| 18 | 10280060 | Ferrari/Maserati Copper Washer - 10280060 | $1.93 | In stock |
| 18 | 95108 | Ferrari Washer - 95108 | Superseded | Order 10280060 instead |
| 20 | 10516870 | Ferrari Spring Washer - 10516870 | Price on request | Contact us for price and availability |
| 21 | 13000190 | Ferrari Hose Clip 10-16mm - 13000190 | $1.09 | Available, ships in 3-6 days |
| 21 | 104879 | Ferrari Clip - 104879 | Superseded | Order 13000190 instead |
| 100248 | Ferrari Cable - 100248 | Price on request | Contact us for price and availability | |
| 100382 | Ferrari Clip - 100382 | Price on request | Contact us for price and availability | |
| 12179090 | Ferrari Clip - 12179090 | Superseded | Order 157990 instead | |
| 103403 | Ferrari Gasket - 103403 | Superseded | Order 10280060 instead | |
| 12179490 | Ferrari Hose Clip - 12179490 | Superseded | Order 13000190 instead | |
| 12179690 | Ferrari Hose Clip - 12179690 | Superseded | Order 13000190 instead | |
| 102007 | Ferrari Mounting - 102007 | Superseded | Order 102947 instead | |
| 100385 | Ferrari Union - 100385 | $64.52 | Available, ships in 3-6 days | |
| 100511 | Ferrari Washer - 100511 | Superseded | Order 10280060 instead |
