Ferrari 365 GTB4 (Daytona) — Accelerator Control (diagram 014)

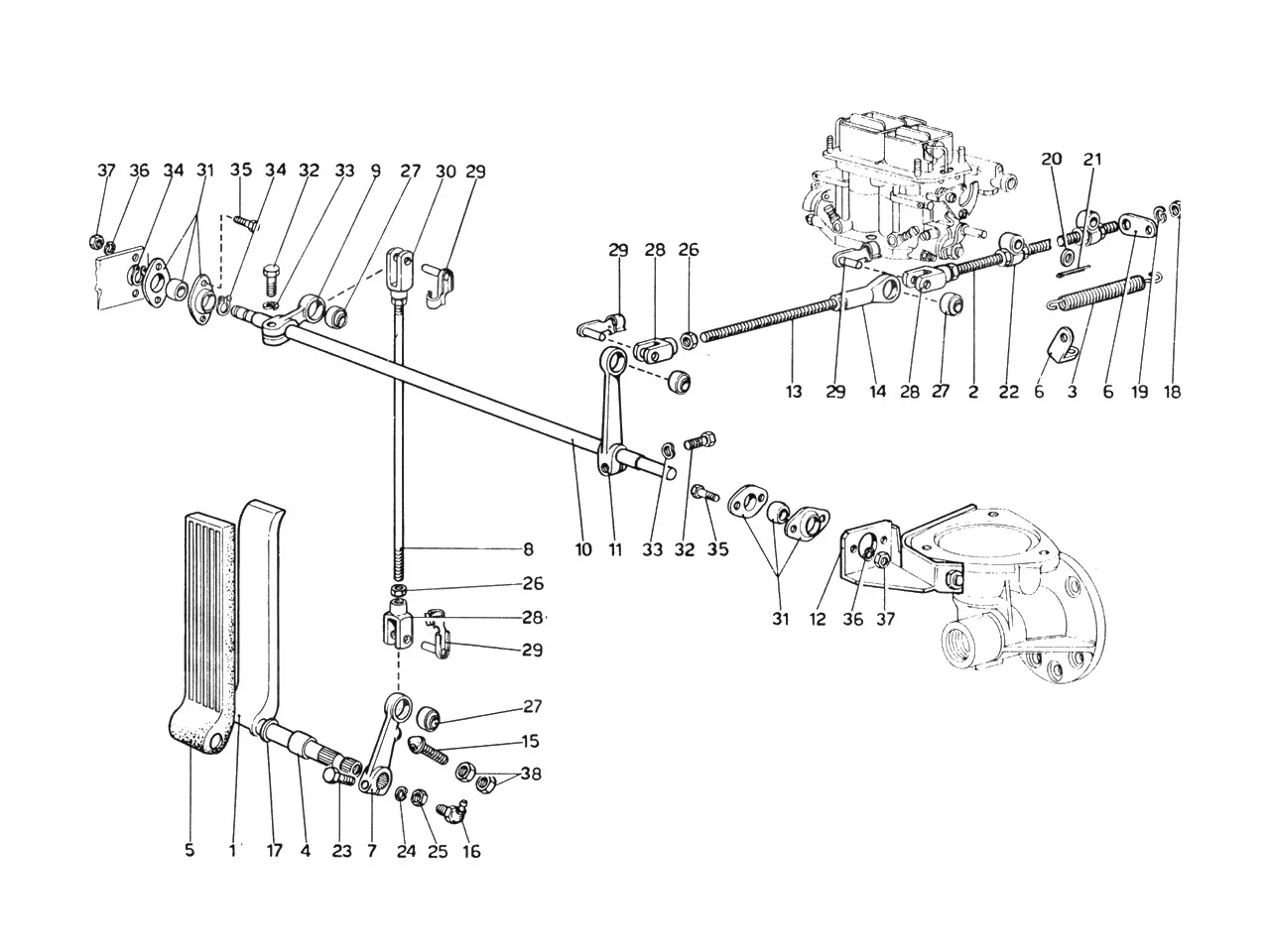

Exploded view of the accelerator control on the Ferrari 365 GTB4 (Daytona), with 46 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/014.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 19733 | Ferrari Throttle Pedal - 19733 | Price on request | Contact us for price and availability |
| 2 | 9181122 | Ferrari Rod - 9181122 | Price on request | Contact us for price and availability |
| 3 | 102951 | Ferrari Return Spring - 102951 | $23.12 | Available, ships in 3-6 days |
| 3 | 9180972 | Ferrari Spring - 9180972 | Superseded | Order 102951 instead |
| 4 | 18575 | Ferrari Bush - 18575 | Price on request | Contact us for price and availability |
| 5 | 18962 | Ferrari Throttle Pedal Rubber - 18962 | $125.96 | Available, ships in 3-6 days |
| 6 | 19005 | Ferrari Plate - 19005 | Price on request | Contact us for price and availability |
| 7 | 9181002 | Ferrari Lever - 9181002 | $191.88 | Special order, ships in 7-14 days |
| 8 | 9181008 | Ferrari Rod LHD - 9181008 | Price on request | Contact us for price and availability |
| 9 | 9181004 | Ferrari Lever - 9181004 | Price on request | Contact us for price and availability |
| 10 | 9181010 | Ferrari Rod - 9181010 | Price on request | Contact us for price and availability |
| 11 | 9181006 | Ferrari Throttle Lever - 9181006 | Price on request | Contact us for price and availability |
| 12 | 9181013 | Ferrari Bracket for Carburettor Control Rod - 9181013 | Price on request | Contact us for price and availability |
| 13 | 9181009 | Ferrari Rod LHD - 9181009 | Price on request | Contact us for price and availability |
| 14 | 9181001 | Ferrari Joint - 9181001 | Price on request | Contact us for price and availability |
| 15 | 146540 | Ferrari Cam Drive Retaining Bolt - 146540 | $26.02 | Available, ships in 3-6 days |
| 15 | 9181141 | Ferrari Screw - 9181141 | Superseded | Order 146540 instead |
| 16 | 101141 | Ferrari Oil Seal - 101141 | $33.71 | Available, ships in 3-6 days |
| 17 | 10520020 | Ferrari Washer - 10520020 | Price on request | Contact us for price and availability |
| 18 | 134041 | Ferrari Nut 6mm - 134041 | $1.80 | Available, ships in 3-6 days |
| 18 | 15896221 | Ferrari Nut - 15896221 | Superseded | Order 134041 instead |
| 19 | 12601271 | Ferrari Wavy Washer 6mm - 12601271 | Superseded | Order 12601279 instead |
| 19 | 12601279 | Ferrari Wavy Washer 6mm - 12601279 | $0.19 | Available, ships in 3-6 days |
| 20 | 95930506 | Ferrari Washer - 95930506 | Price on request | Contact us for price and availability |
| 22 | 18700 | Ferrari Throttle Link - 18700 | $3.72 | Special order, ships in 7-14 days |
| 27 | 95910011 | Ferrari Rose Joint Sm 6 - 95910011 | $56.52 | Available, ships in 3-6 days |
| 28 | 500571 | Ferrari Fork - 500571 | $65.89 | Available, ships in 3-6 days |
| 28 | 100421 | Ferrari Clevis Fork - 100421 | $65.89 | Available, ships in 3-6 days |
| 29 | 100422 | Ferrari Clip - 100422 | $27.87 | Special order, ships in 7-14 days |
| 30 | 100655 | Ferrari RH Threaded Fork - 100655 | Price on request | Contact us for price and availability |
| 31 | 95910041 | Ferrari Throttle Linkage Carrier Set - 95910041 | $50.60 | Contact us |
| 33 | 12603871 | Ferrari Wavy Washer 7mm - 12603871 | $0.59 | Available, ships in 3-6 days |
| 36 | 11195470 | Ferrari 5mm Wavy Washer - 11195470 | $0.21 | Available, ships in 3-6 days |
| 37 | 15896414 | Ferrari Nut M5 x 4 - 15896414 | $0.13 | Available, ships in 3-6 days |
| 37 | 15896411 | Ferrari RH Thread Nut - 15896411 | Superseded | Order 15896414 instead |
| 38 | 95900701 | Ferrari Nut 8X1.25 Uni5588 - 95900701 | $0.84 | Available, ships in 3-6 days |
| 38 | 133989 | Ferrari Plain Nut M8 x 1.25 x 6.5 - 133989 | $0.84 | Available, ships in 3-6 days |
| 9181268 | Ferrari Lever - 9181268 | Price on request | Contact us for price and availability | |
| 15896225 | Ferrari Nut - 15896225 | Superseded | Order 134041 instead | |
| 15896401 | Ferrari Nut - 15896401 | Superseded | Order 15896414 instead | |
| 50207208 | Ferrari Nut - 50207208 | Superseded | Order 15896414 instead | |
| 103372 | Ferrari Washer - 103372 | Superseded | Order 12601279 instead | |
| - | 9181000 | Ferrari Joint Throttle Rod Assy - 9181000 | Price on request | Contact us for price and availability |
| - | 9181007 | Ferrari Long Throttle Rod Assy - 9181007 | Price on request | Contact us for price and availability |
| - | 9181005 | Ferrari Short Throttle Rod Assy - 9181005 | Price on request | Contact us for price and availability |
| - | 9181145 | Ferrari Throttle Cable RHD - 9181145 | $240.69 | Available, ships in 3-6 days |
