Ferrari 365 GTB4 (Daytona) — Accelerator Control (1974 Revision - Cars With Air Pollution System) (diagram 014A)

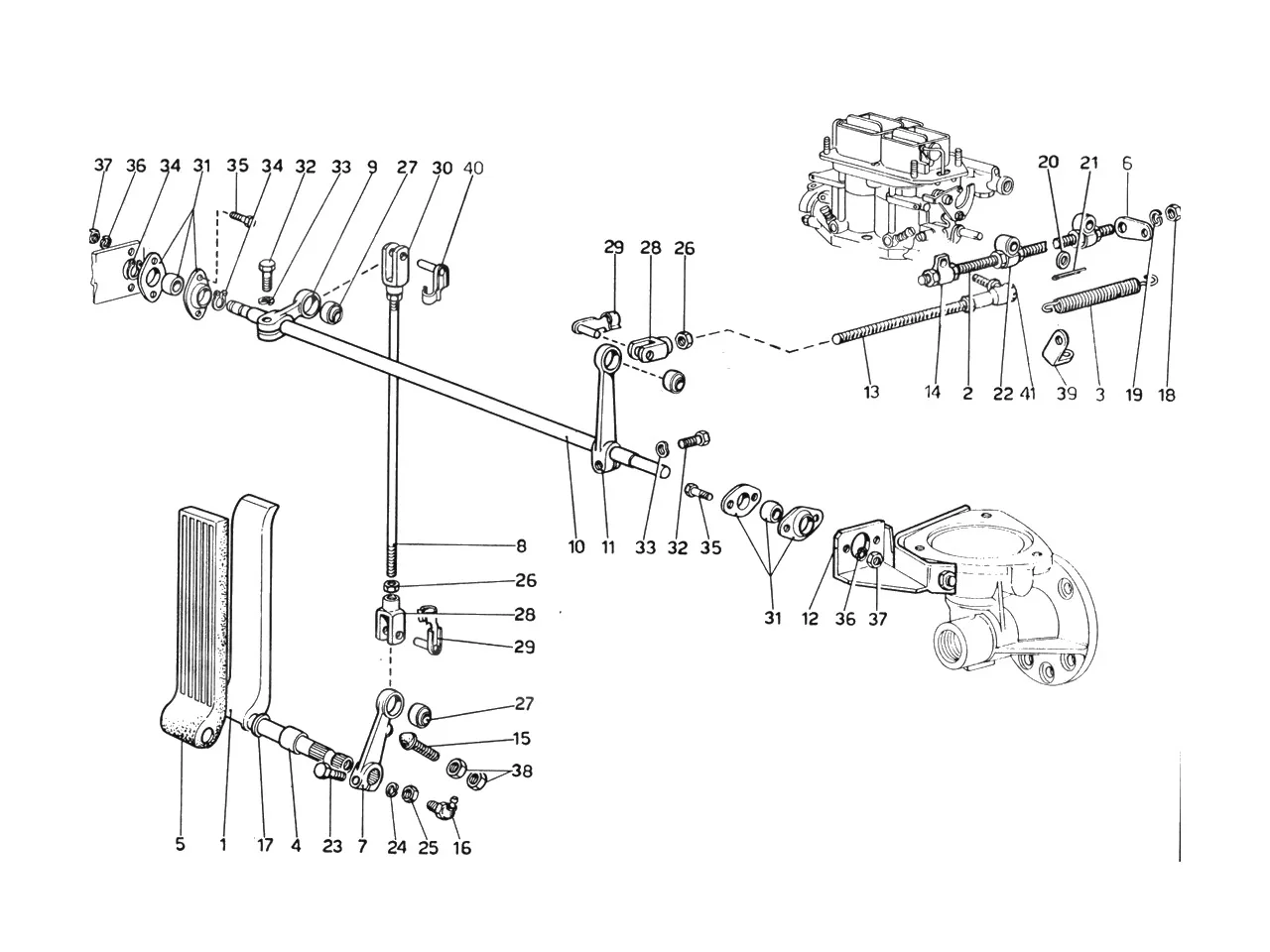

Exploded view of the accelerator control (1974 revision - cars with air pollution system) on the Ferrari 365 GTB4 (Daytona), with 46 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 365 GTB4 (Daytona) Accelerator Control (1974 Revision - Cars With Air Pollution System) exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
119733Ferrari Throttle Pedal - 19733Price on requestContact us for price and availability
29181122Ferrari Rod - 9181122Price on requestContact us for price and availability
3102951Ferrari Return Spring - 102951$23.12Available, ships in 3-6 days
39180972Ferrari Spring - 9180972SupersededOrder 102951 instead
418575Ferrari Bush - 18575Price on requestContact us for price and availability
518962Ferrari Throttle Pedal Rubber - 18962$125.96Available, ships in 3-6 days
619005Ferrari Plate - 19005Price on requestContact us for price and availability
79181202Ferrari Lever - 9181202Price on requestContact us for price and availability
89181269Ferrari Throttle Rod - 9181269Price on requestContact us for price and availability
99181268Ferrari Lever - 9181268Price on requestContact us for price and availability
109181271Ferrari Throttle Rod - 9181271Price on requestContact us for price and availability
119181270Ferrari Lever - 9181270Price on requestContact us for price and availability
129181013Ferrari Bracket for Carburettor Control Rod - 9181013Price on requestContact us for price and availability
139180695Ferrari Throttle Rod - 9180695Price on requestContact us for price and availability
149181255Ferrari Lever - 9181255$66.12Special order, ships in 7-14 days
15146540Ferrari Cam Drive Retaining Bolt - 146540$26.02Available, ships in 3-6 days
159181141Ferrari Screw - 9181141SupersededOrder 146540 instead
1695593Ferrari Grease Nipple - 95593Price on requestContact us for price and availability
1710520020Ferrari Washer - 10520020Price on requestContact us for price and availability
18134041Ferrari Nut 6mm - 134041$1.80Available, ships in 3-6 days
1912601271Ferrari Wavy Washer 6mm - 12601271SupersededOrder 12601279 instead
1912601279Ferrari Wavy Washer 6mm - 12601279$0.19Available, ships in 3-6 days
2095930506Ferrari Washer - 95930506Price on requestContact us for price and availability
2218700Ferrari Throttle Link - 18700$3.72Special order, ships in 7-14 days
27100423Ferrari Rose Bearing - 100423$45.18Available, ships in 3-6 days
28500571Ferrari Fork - 500571$65.89Available, ships in 3-6 days
28100421Ferrari Clevis Fork - 100421$65.89Available, ships in 3-6 days
29100422Ferrari Clip - 100422$27.87Special order, ships in 7-14 days
30100655Ferrari RH Threaded Fork - 100655Price on requestContact us for price and availability
3195910041Ferrari Throttle Linkage Carrier Set - 95910041$50.60Contact us
3295524Ferrari Bolt - 95524Price on requestContact us for price and availability
3312603871Ferrari Wavy Washer 7mm - 12603871$0.59Available, ships in 3-6 days
3611195470Ferrari 5mm Wavy Washer - 11195470$0.21Available, ships in 3-6 days
3715896414Ferrari Nut M5 x 4 - 15896414$0.13Available, ships in 3-6 days
3715896411Ferrari RH Thread Nut - 15896411SupersededOrder 15896414 instead
3895900701Ferrari Nut 8X1.25 Uni5588 - 95900701$0.84Available, ships in 3-6 days
38133989Ferrari Plain Nut M8 x 1.25 x 6.5 - 133989$0.84Available, ships in 3-6 days
399180246Ferrari Bracket - 9180246Price on requestContact us for price and availability
40100656Ferrari Linkage Clip - 100656$4.41Available, ships in 3-6 days
4195594Ferrari Rod Ball Joint - 95594Price on requestContact us for price and availability
9181004Ferrari Lever - 9181004Price on requestContact us for price and availability
15896221Ferrari Nut - 15896221SupersededOrder 134041 instead
15896225Ferrari Nut - 15896225SupersededOrder 134041 instead
15896401Ferrari Nut - 15896401SupersededOrder 15896414 instead
50207208Ferrari Nut - 50207208SupersededOrder 15896414 instead
103372Ferrari Washer - 103372SupersededOrder 12601279 instead

All 365 GTB4 (Daytona) diagrams
