Ferrari 365 GTB4 (Daytona) — Output Shaft Gears (diagram 018)

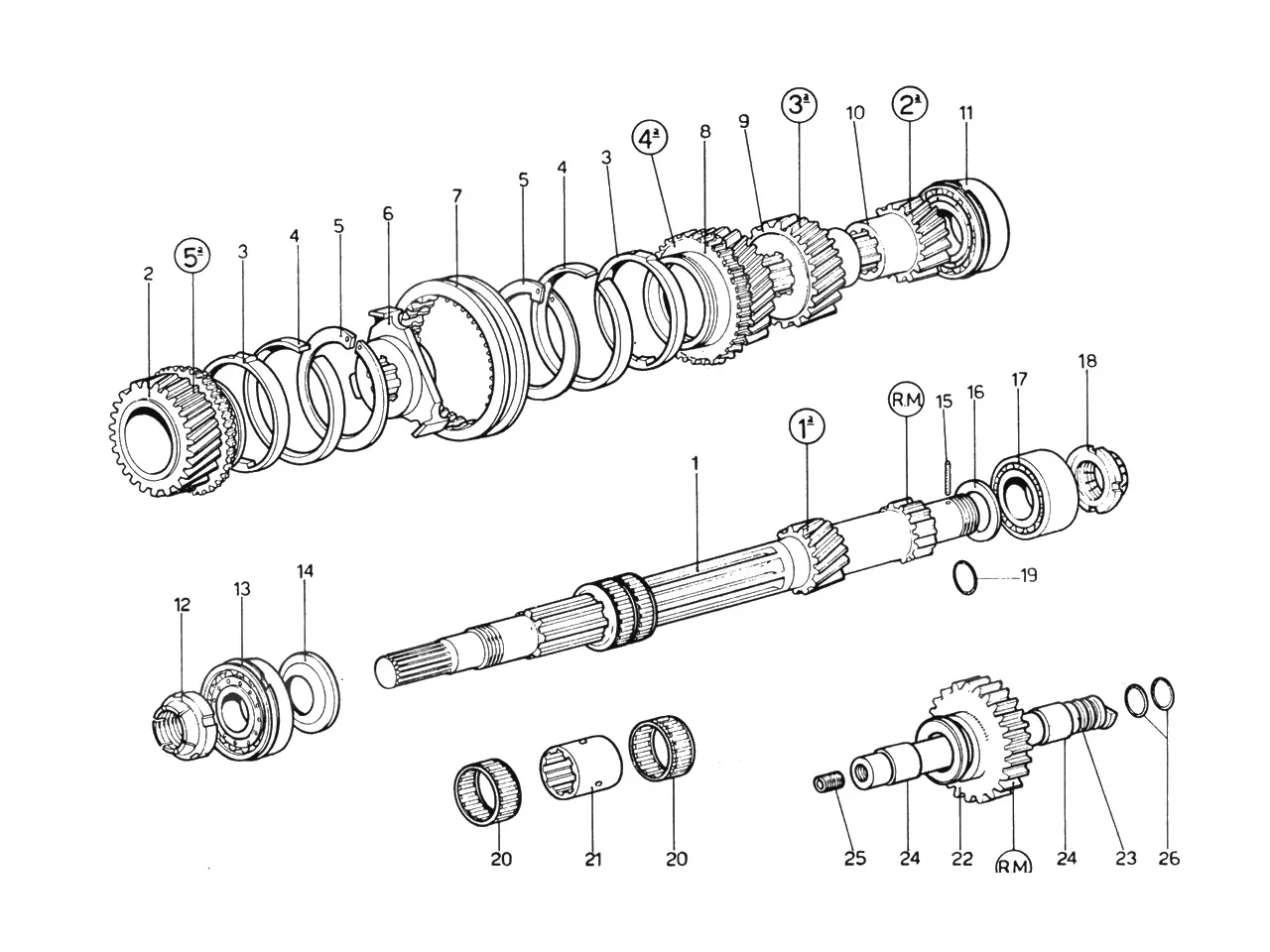

Exploded view of the output shaft gears on the Ferrari 365 GTB4 (Daytona), with 34 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/018.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 522934 | Ferrari Gearbox Main Shaft - 522934 | Price on request | Contact us for price and availability |
| 1 | 524312 | Ferrari Gearbox Main Shaft - 524312 | Price on request | Contact us for price and availability |
| 2 | 522247 | Ferrari Gear 5th - 522247 | Price on request | Contact us for price and availability |
| 3 | 53515 | Ferrari Synchro Ring Guide - 53515 | $908.06 | Available, ships in 3-6 days |
| 4 | 521767 | Ferrari Synchro Ring (145) - 521767 | $470.81 | Available, ships in 3-6 days |
| 4 | 521767/A | Ferrari Synchro Ring (1st 4th and 5th Gear) - 521767/A | $468.05 | Available, ships in 3-6 days |
| 5 | 53514 | Ferrari Synchro Ring Retaining Circlip - 53514 | $157.95 | Available, ships in 3-6 days |
| 6 | 522253 | Ferrari 365Gtb4 Gearbox Spyder 4Th/5Th - 522253 | Price on request | Contact us to order |
| 7 | 522739 | Ferrari Synchro Sleeve (117mm OD) 15mm Forks - 522739 | $1,710.18 | Available, ships in 3-6 days |
| 8 | 522246 | Ferrari Gear 4Th - 522246 | $1,890.51 | Available, ships in 3-6 days |
| 9 | 522250 | Ferrari Gear 3Rd - 522250 | $1,046.48 | Available, ships in 3-6 days |
| 10 | 522249 | Ferrari Gear 2Nd - 522249 | $1,024.40 | Available, ships in 3-6 days |
| 11 | 103030 | Ferrari Roller Bearing - 103030 | $355.72 | Available, ships in 3-6 days |
| 11 | 101605 | Ferrari Bearing - 101605 | Superseded | Order 103030 instead |
| 12 | 522506 | Ferrari Lock Nut - 522506 | $216.10 | Available, ships in 3-6 days |
| 12 | 524313 | Ferrari Lock Nut - 524313 | Price on request | Contact us for price and availability |
| 13 | 95890709 | Ferrari Roller Bearing With Circlip - 95890709 | $265.76 | Available, ships in 3-6 days |
| 14 | 522256 | Ferrari Spacer - 522256 | Price on request | Contact us for price and availability |
| 15 | 520099 | Ferrari Pin - 520099 | $7.36 | Available, ships in 3-6 days |
| 16 | 520780 | Ferrari Spacer - 520780 | $18.82 | Available, ships in 3-6 days |
| 17 | 95890303 | Ferrari Double Ball Bearing Without Circlip - 95890303 | $116.96 | Available, ships in 3-6 days |
| 18 | 106095 | Ferrari Ring Nut - 106095 | $37.95 | In stock |
| 18 | 522507 | Ferrari Lock Nut - 522507 | $195.12 | Available, ships in 3-6 days |
| 18 | 524314 | Ferrari Lock Nut - 524314 | Superseded | Order 106095 instead |
| 19 | 95860010 | Ferrari O-Ring - 95860010 | $1.36 | Available, ships in 3-6 days |
| 20 | 104255 | Ferrari Caged Needle Bearing 4th & 5th Gear - 104255 | $49.25 | Available, ships in 3-6 days |
| 21 | 522258 | Ferrari Bush - 522258 | $447.24 | Available, ships in 3-6 days |
| 22 | 523081 | Ferrari Rm Gear - 523081 | Price on request | Contact us for price and availability |
| 23 | 521129 | Ferrari Pin - 521129 | $138.84 | Available, ships in 3-6 days |
| 24 | 103226 | Ferrari Self Lubricating Bush - 103226 | $15.53 | Available, ships in 3-6 days |
| 24 | 524539 | Ferrari Bush - 524539 | $9.93 | Available, ships in 3-6 days |
| 25 | 101639 | Ferrari Grub Screw - 101639 | $1.80 | Available, ships in 3-6 days |
| 26 | 95860061 | Ferrari Gear Shaft O-Ring - 95860061 | $2.20 | In stock |
| 53902 | Ferrari Synchro Ring Smooth Finish - 53902 | Price on request | Contact us for price and availability |
