Ferrari 365 GTB4 (Daytona) — Countershaft Gears (diagram 019)

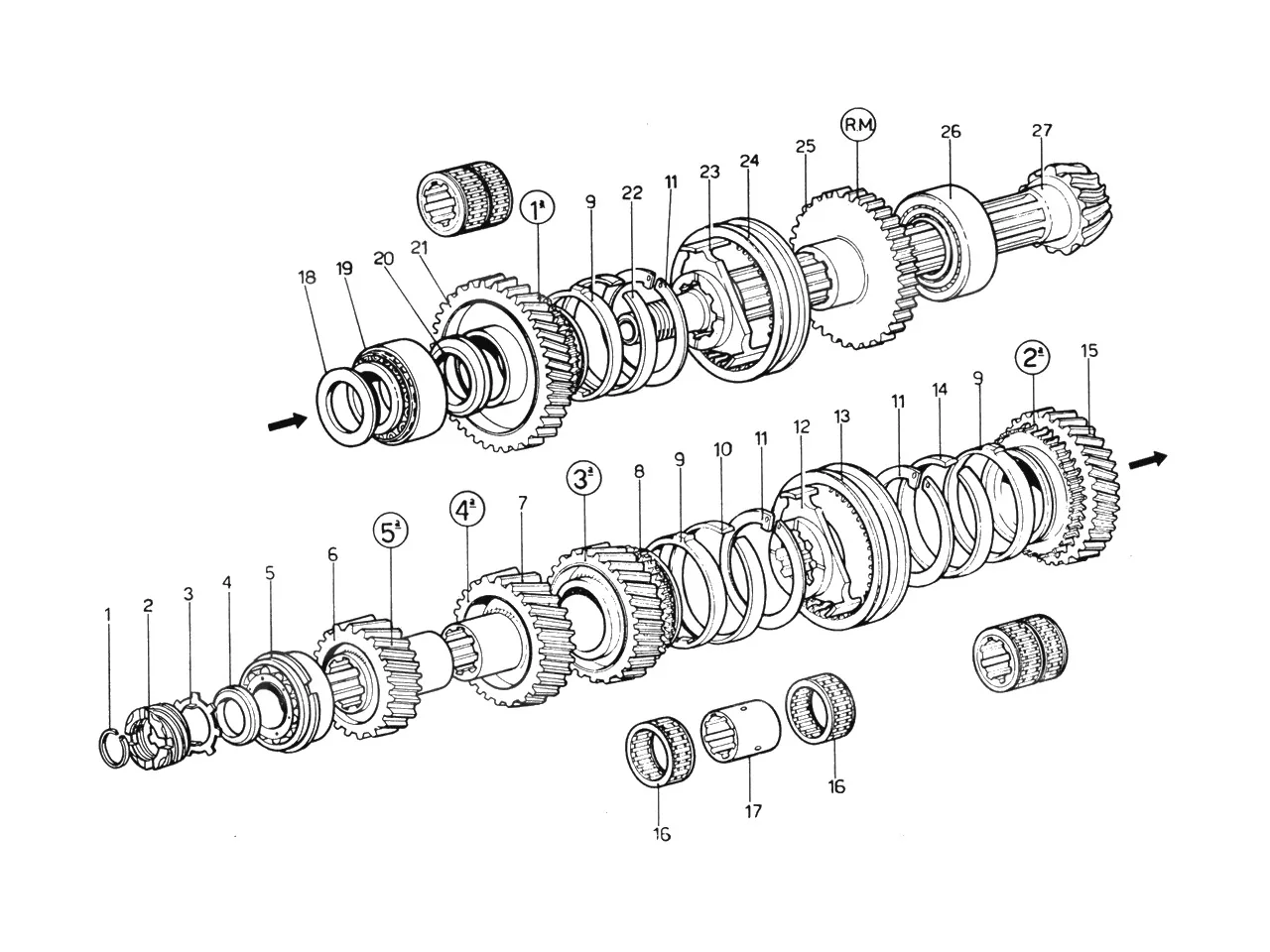

Exploded view of the countershaft gears on the Ferrari 365 GTB4 (Daytona), with 35 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/019.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 113087 | Ferrari Gearbox Circlip - 113087 | $106.82 | Available, ships in 3-6 days |
| 1 | 22804 | Ferrari Gearbox Clip - 22804 | Superseded | Order 113087 instead |
| 2 | 523073 | Ferrari Speedo Drive Gear Nut R10/33 - 523073 | Price on request | Contact us for price and availability |
| 2 | 524485 | Ferrari Speedo Drive Gear Nut R9/35 - 524485 | Price on request | Contact us for price and availability |
| 2 | 524269 | Ferrari Speedo Drive Gear Nut 10/33 Ratio - 524269 | Price on request | Contact us for price and availability |
| 3 | 93418 | Ferrari Lock Tab - 93418 | $39.06 | Available, ships in 3-6 days |
| 4 | 522958 | Ferrari Spacer - 522958 | $46.10 | Available, ships in 3-6 days |
| 5 | 103030 | Ferrari Roller Bearing - 103030 | $355.72 | Available, ships in 3-6 days |
| 6 | 522953 | Ferrari Gear 5th - 522953 | Price on request | Contact us for price and availability |
| 7 | 522248 | Ferrari Gear 4th - 522248 | $968.91 | Available, ships in 3-6 days |
| 8 | 522245 | Ferrari Gear 3rd - 522245 | Price on request | Contact us for price and availability |
| 9 | 53515 | Ferrari Synchro Ring Guide - 53515 | $908.06 | Available, ships in 3-6 days |
| 10 | 521769 | Ferrari Synchro Ring (3rd Gear) - 521769 | $4,038.54 | Available, ships in 3-6 days |
| 11 | 53514 | Ferrari Synchro Ring Retaining Circlip - 53514 | $157.95 | Available, ships in 3-6 days |
| 12 | 522252 | Ferrari Gearbox Spyder 2nd/3rd - 522252 | Price on request | Contact us to order |
| 13 | 522739 | Ferrari Synchro Sleeve (117mm OD) 15mm Forks - 522739 | $1,710.18 | Available, ships in 3-6 days |
| 14 | 521768 | Ferrari Synchro Ring (2) - 521768 | $361.70 | Available, ships in 3-6 days |
| 15 | 522244 | Ferrari Gear 2nd - 522244 | Price on request | Contact us for price and availability |
| 16 | 104255 | Ferrari Caged Needle Bearing 4th & 5th Gear - 104255 | $49.25 | Available, ships in 3-6 days |
| 17 | 522257 | Ferrari Bush - 522257 | Price on request | Contact us for price and availability |
| 18 | 522959 | Ferrari Spacer - 522959 | Price on request | Contact us for price and availability |
| 19 | 103031 | Ferrari Tapered Roller Bearing - 103031 | $337.94 | Available, ships in 3-6 days |
| 20 | 522255 | Ferrari Spacer - 522255 | Price on request | Contact us for price and availability |
| 21 | 522243 | Ferrari Gear 1st - 522243 | Price on request | Contact us for price and availability |
| 22 | 521767 | Ferrari Synchro Ring (145) - 521767 | $470.81 | Available, ships in 3-6 days |
| 22 | 521767/A | Ferrari Synchro Ring (1st 4th and 5th Gear) - 521767/A | $468.05 | Available, ships in 3-6 days |
| 23 | 522251 | Ferrari Gearbox Spyder 1st/RM - 522251 | Price on request | Contact us to order |
| 24 | 522845 | Ferrari Synchro Sleeve - 522845 | $1,132.39 | Available, ships in 3-6 days |
| 25 | 522242 | Ferrari Gear RM - 522242 | $585.02 | Available, ships in 3-6 days |
| 26 | 101636 | Ferrari Tapered Roller Bearing - 101636 | $265.46 | Available, ships in 3-6 days |
| 27 | 522950 | Ferrari Pinion - 522950 | Superseded | Order 95520160 instead |
| 27 | 95520160 | Ferrari Crown Wheel And Pinion 365GTB4 Std 10.33 - 95520160 | $15,416.39 | Contact us to order |
| 53512 | Ferrari Synchro Ring Smooth Finish - 53512 | Price on request | Contact us for price and availability | |
| 53901 | Ferrari Synchro Ring Smooth Finish - 53901 | Price on request | Contact us for price and availability | |
| 53902 | Ferrari Synchro Ring Smooth Finish - 53902 | Price on request | Contact us for price and availability |
