Ferrari 365 GTB4 (Daytona) — Differential & Axle Shafts (diagram 021)

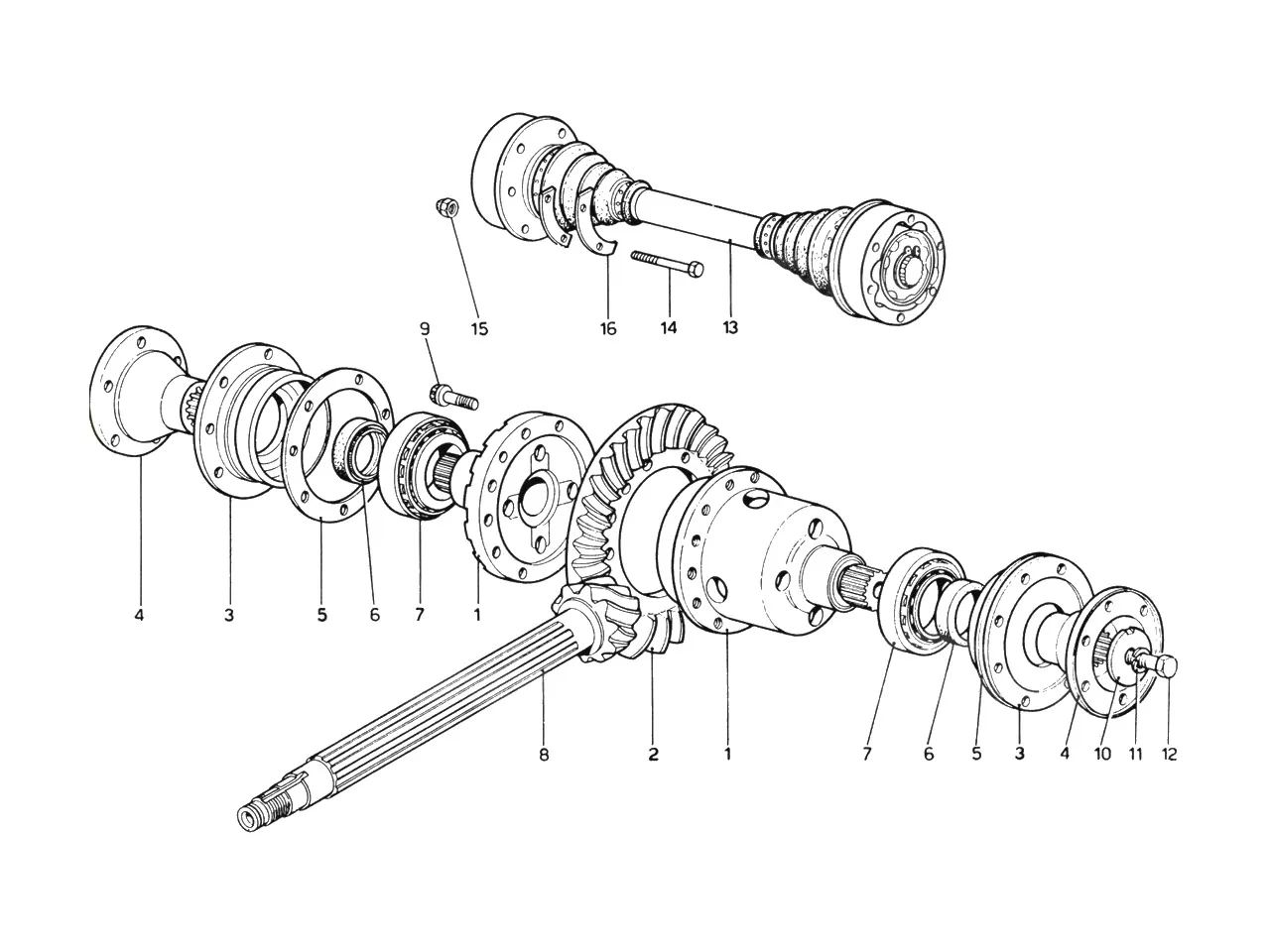

Exploded view of the differential & axle shafts on the Ferrari 365 GTB4 (Daytona), with 35 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/021.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 580786 | Ferrari Differential Assy 365 GTB4 - 580786 | $9,356.53 | Available, ships in 3-6 days |
| 1 | 580786/P | Ferrari Diff Side Plate - 580786/P | $557.77 | Available, ships in 3-6 days |
| 2 | 95520160 | Ferrari Crown Wheel And Pinion 365GTB4 Std 10.33 - 95520160 | $15,416.39 | Contact us to order |
| 2 | 580485 | Ferrari Crown Wheel R10/33 - 580485 | Superseded | Order 95520160 instead |
| 3 | 580547 | Ferrari Flange - 580547 | $190.13 | Special order, ships in 7-14 days |
| 4 | 580723 | Ferrari Flange - 580723 | Price on request | Contact us for price and availability |
| 4 | 580453 | Ferrari Flange - 580453 | Price on request | Contact us for price and availability |
| 5 | 580385 | Ferrari Spacer - 580385 | $91.64 | Available, ships in 3-6 days |
| 5 | 580385/5 | Ferrari Spacer 2.00mm - 580385/5 | $91.64 | Available, ships in 3-6 days |
| 6 | 141509 | Ferrari Gearbox Left Seal - 141509 | $171.00 | In stock |
| 6 | 133628 | Ferrari Cover Seal - 133628 | $57.20 | In stock |
| 6 | 103233 | Ferrari Oil Seal - 103233 | Price on request | Contact us for price and availability |
| 7 | 101634 | Ferrari Differential Bearing - 101634 | $184.80 | In stock |
| 8 | 522950 | Ferrari Pinion - 522950 | Superseded | Order 95520160 instead |
| 9 | 95580020 | Ferrari Crown Wheel Bolt - 95580020 | $73.37 | Available, ships in 3-6 days |
| 13 | 580452 | Ferrari 365Gtb4 Drive Shaft - 580452 | $101.64 | Available, ships in 3-6 days |
| 13 | 580452/B | Ferrari Driveshaft Centre Cages Ex Ford - 580452/B | $101.64 | Available, ships in 3-6 days |
| 14 | 101632 | Ferrari Half Shaft Bolt - 101632 | $14.50 | In stock |
| 15 | 101633 | Ferrari Half Shaft Nut Self Locking - 101633 | $7.65 | In stock |
| 16 | 104184 | Ferrari Lock Tab - 104184 | $10.08 | Available, ships in 3-6 days |
| 16 | 580553 | Ferrari Lock Tab - 580553 | Superseded | Order 104184 instead |
| 16 | MC2765/1/B | Ferrari Shim Plate (ZF 4061.306.845) (2.2mm) - MC2765/1/B | $158.43 | Available, ships in 3-6 days |
| 1112 | Ferrari 275Gtbs4/330Gtc Zf Diff Unit - 1112 | Superseded | Order 580786 instead | |
| 103432 | Ferrari Bolt - 103432 | Superseded | Order 101632 instead | |
| 125077 | Ferrari Differential Oil Seal - 125077 | $25.14 | In stock | |
| 119373 | Ferrari Drive Flange - 119373 | $699.37 | Available, ships in 3-6 days | |
| 101631 | Ferrari Flange - 101631 | Price on request | Contact us for price and availability | |
| 111522 | Ferrari Flange - 111522 | Price on request | Contact us for price and availability | |
| 119377 | Ferrari Flange - 119377 | $903.71 | Special order, ships in 7-14 days | |
| 14308234 | Ferrari Screw - 14308234 | Superseded | Order 101632 instead | |
| 265036 | Ferrari Screw - 265036 | Superseded | Order 101632 instead | |
| - | MC2765/2 | Ferrari Shim Plate (ZF 4061.306.268) (Size 1.9Mm) - MC2765/2 | $115.42 | Available, ships in 3-6 days |
| - | MC2765/3 | Ferrari Shim Plate (ZF 4061.306.269) (Size 2.0Mm) - MC2765/3 | $121.20 | Available, ships in 3-6 days |
| - | MC2765/4 | Ferrari Shim Plate (ZF 4061.306.270) (2.1Mm) - MC2765/4 | $115.42 | Available, ships in 3-6 days |
| - | MC2765/1 | Ferrari Shim Plate (ZF 4061.306.845) - MC2765/1 | Price on request | Special order, ships in 7-14 days |
