Ferrari 365 GTB4 (Daytona) — Front Suspension (diagram 022)

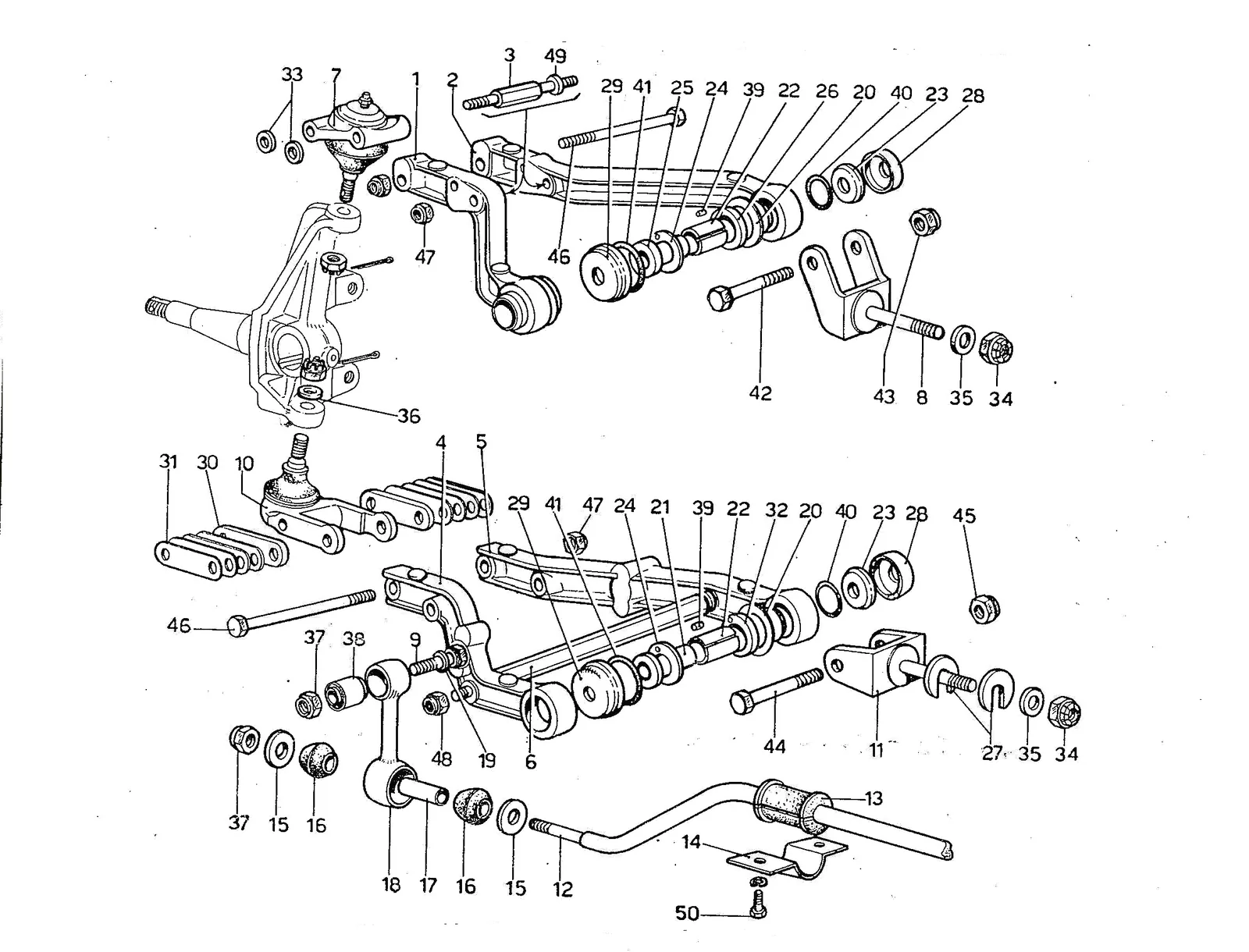

Exploded view of the front suspension on the Ferrari 365 GTB4 (Daytona), with 91 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 365 GTB4 (Daytona) Front Suspension exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1640971Ferrari LH Rear Lever - 640971$700.52Available, ships in 3-6 days
2640972Ferrari RH Rear Lever - 640972Price on requestContact us for price and availability
3640973Ferrari Bar Front Suspension Lever - 640973Price on requestContact us for price and availability
4100995Ferrari Rh/LH Lever Front Suspension Lower - 100995$719.92Available, ships in 3-6 days
4640975Ferrari Front Suspension Lower Lever - 640975SupersededOrder 100995 instead
5640976Ferrari Front Suspension Lower Lever - 640976SupersededOrder 100995 instead
6640977Ferrari Lower Wishbone Spacer Bar - 640977Price on requestContact us for price and availability
765228Ferrari Upper Ball Joint - 65228SupersededOrder 116280 instead
7641486Ferrari Upper Ball Joint - 641486SupersededOrder 116280 instead
8641139Ferrari Suspension Fork - 641139Price on requestContact us for price and availability
8641211Ferrari Suspension Fork - 641211Price on requestContact us for price and availability
9640995Ferrari Bolt - 640995Price on requestContact us for price and availability
10116281Ferrari Ball Joint Kit - 116281$735.90In stock
10AW6348000Ferrari Suspension Kit-AW6348000$485.00In stock
10133944Ferrari Lower Ball Joint - 133944$125.76In stock
10133944BFerrari Ball Joint Boot - 133944B$27.99In stock
10640427Ferrari Lower Ball Joint - 640427SupersededOrder 133944 instead
11600953Ferrari Suspension Fork - 600953$569.05Available, ships in 3-6 days
12641011Ferrari Front Anti Roll Bar - 641011Price on requestContact us for price and availability
12641190Ferrari Front Anti Roll Bar - 641190Price on requestContact us for price and availability
13108744Ferrari Sway Bar Bushing Front - 108744$19.80In stock
13640335Ferrari Plug - 640335SupersededOrder 108744 instead
14640008Ferrari Bracket - 640008Price on requestContact us for price and availability
15100774Ferrari Washer - 100774$13.33Available, ships in 3-6 days
15640025Ferrari Washer - 640025$30.92Available, ships in 3-6 days
1594667Ferrari Washer - 94667SupersededOrder 100774 instead
16100984Ferrari Front Sway Bar Link Bushing - 100984$11.55In stock
1664430Ferrari Bush - 64430SupersededOrder 100984 instead
17100985Ferrari Inner Bushing Sleeve - 100985$34.89In stock
1764431Ferrari Bush - 64431SupersededOrder 100985 instead
18640024Ferrari Front Anti Roll Bar Link - 640024$796.49Special order, ships in 7-14 days
1964544Maserati Thermostat - 64544SupersededOrder 100771 instead
20641137Ferrari Washer - 641137SupersededOrder 101018 instead
20101018Ferrari Washer - 101018$29.52Available, ships in 3-6 days
21641570Ferrari Bush - 641570$133.78Available, ships in 3-6 days
22101010Ferrari 275/365 Inner Suspension Bushing-101010$17.33In stock
22600786Ferrari Suspension Inner Bush - 600786SupersededOrder 101010 instead
23600742Ferrari Spacing Washer - 600742SupersededOrder 101016 instead
23101016Ferrari Suspension Spacing Washer 12.5 - 30 x 3.2 - 101016$7.85Available, ships in 3-6 days
24101009Ferrari Suspension Thrust Washer - 101009$13.92In stock
24600771Ferrari Thrust Washer - 600771SupersededOrder 101009 instead
25101008Ferrari Suspension Bush - 101008$126.31Available, ships in 3-6 days
25641571Ferrari Bush - 641571SupersededOrder 101008 instead
26101017Ferrari 365 Suspension Bushing - 101017$75.00In stock
26641135Ferrari Front Suspension Inner Bush - 641135SupersededOrder 101017 instead
26641134Ferrari Front Suspension Inner Bush - 641134$122.49Available, ships in 3-6 days
27101039Ferrari Suspension Shim - 101039$3.25In stock
27600831Ferrari Spacing Washer - 600831SupersededOrder 101039 instead
28101011Ferrari Suspension Bush Dust Cover - 101011$8.95Available, ships in 3-6 days
28600956Ferrari Dust Cover - 600956SupersededOrder 101011 instead
29101014Ferrari Suspension Bush Dust Cover - 101014$13.65Available, ships in 3-6 days
29600957Ferrari Dust Cover - 600957SupersededOrder 101014 instead
30640583Ferrari Plate - 640583Price on requestContact us for price and availability
31101022Ferrari Lower suspension Shim 1.5mm - 101022$2.82Available, ships in 3-6 days
31640586Ferrari Shim - 640586SupersededOrder 101022 instead
32101037Ferrari 365 Front Lower Control Arm Bushing - 101037$98.98In stock
32641136Ferrari Bush - 641136SupersededOrder 101037 instead
33101001Ferrari Washer - 101001$32.99Available, ships in 3-6 days
33641060Ferrari Washer - 641060SupersededOrder 101001 instead
34150238Ferrari Nyloc Nut - 150238$1.05In stock
3495900611Ferrari Nut B70 214MB - 95900611$0.50Available, ships in 3-6 days
35101041Ferrari Washer 14.5x24x2.5 - 101041$0.44Available, ships in 3-6 days
36101445Ferrari Washer - 101445$1.17Available, ships in 3-6 days
3795900610Ferrari Nyloc Nut M12 x 1.50 - 95900610$1.30Available, ships in 3-6 days
38100773RFerrari Sway Bar Link Silent Block Bushing - 100773$38.50In stock
38100773Ferrari Bonded Silent Bloc Bush - 100773$38.50Available, ships in 3-6 days
3994943Ferrari Pin - 94943SupersededOrder 100796 instead
40101043Ferrari O-Ring - 101043$1.82In stock
41101044Ferrari Water Pump O-Ring - 101044$2.41In stock
4215541124Ferrari Screw M12 x 1.25 x 65 - 15541124$1.67Available, ships in 3-6 days
4215541221Ferrari Bolt 12X70 Uni 5738 184 - 15541221$8.47Available, ships in 3-6 days
4215541121Ferrari Bolt - 15541121$1.67Available, ships in 3-6 days
4295881057Ferrari Bolt 12x80 - 95881057$4.93Available, ships in 3-6 days
43102825Ferrari Locking Suspension Nut - 102825$1.10In stock
4695328Ferrari Bolt - 95328Price on requestContact us for price and availability
47102742Ferrari Nyloc Nut M10x1.25x10 - 102742$0.79Available, ships in 3-6 days
49640998Ferrari Spacer - 640998$13.24Available, ships in 3-6 days
5016043121Ferrari Bolt 8X15 Uni 188 - 16043121SupersededOrder 16043124 instead
101444Ferrari Bolt - 101444Price on requestContact us for price and availability
100771Ferrari Bush - 100771$64.65Available, ships in 3-6 days
101050Ferrari Front Sway Bar Bushing Bracket - 101050$19.98In stock
101442Ferrari Lower Ball Joint - 101442SupersededOrder 133944 instead
114462Ferrari Lower Ball Joint - 114462SupersededOrder 133944 instead
12575611Ferrari Nut - 12575611SupersededOrder 102742 instead
12575621Ferrari Nyloc Nut - 12575621SupersededOrder 102742 instead
12575625Ferrari Nyloc Nut - 12575625SupersededOrder 102742 instead
100991Ferrari RH Rear Suspension Lever - 100991Price on requestContact us for price and availability
16043124Ferrari Screw M8 x 14 - 16043124$0.33Special order, ships in 7-14 days
101441Ferrari Upper Ball Joint - 101441SupersededOrder 116280 instead
116280Ferrari Upper Ball Joint -116280$174.90In stock
-641212Ferrari Bolt - 641212$27.50Available, ships in 3-6 days
