Ferrari 365 GTB4 (Daytona) — Brakes Control (diagram 027)

Exploded view of the brakes control on the Ferrari 365 GTB4 (Daytona), with 54 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

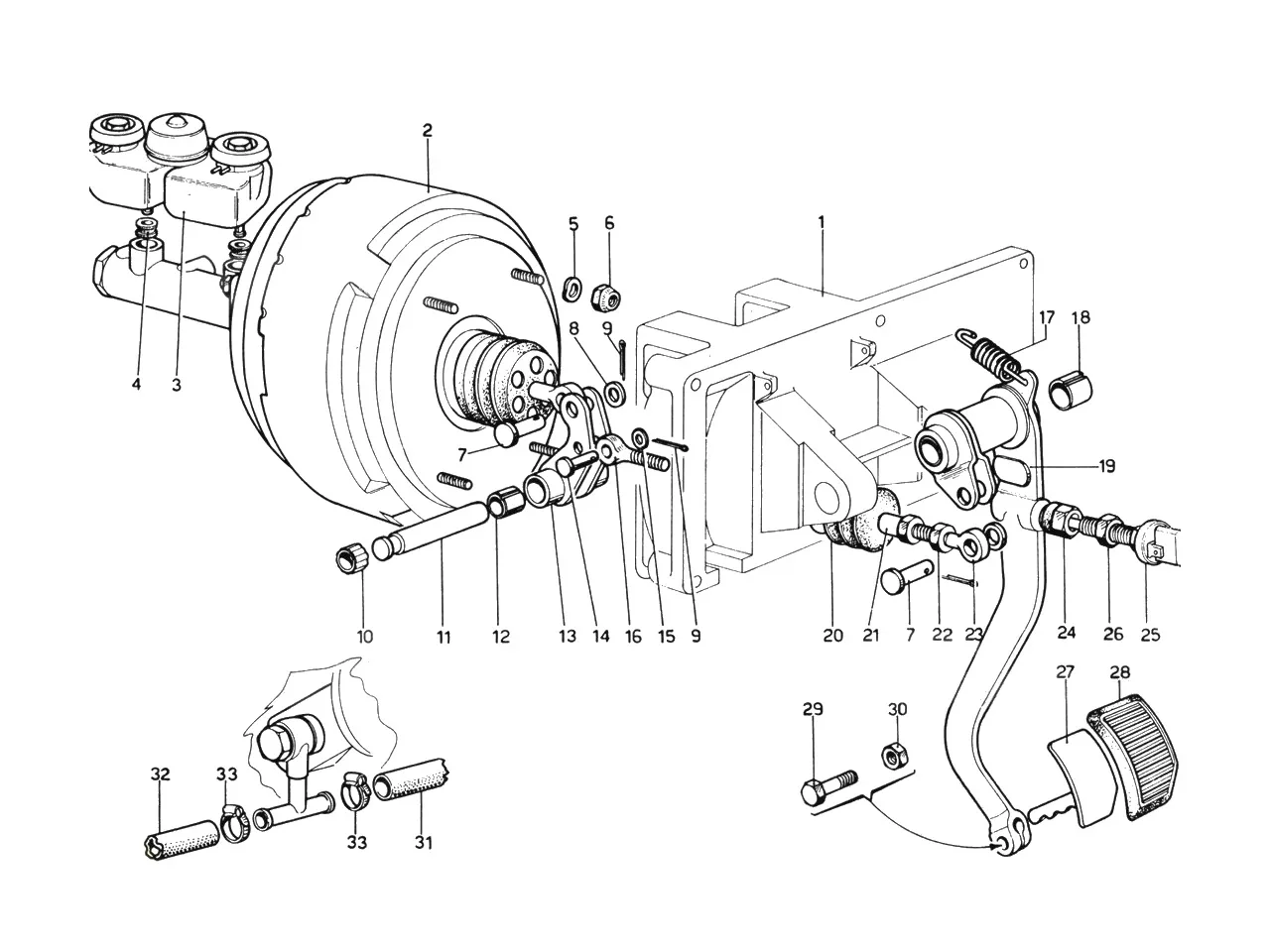

Ferrari 365 GTB4 (Daytona) Brakes Control exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1660799Ferrari Pedal Support Housing LHD - 660799Price on requestContact us for price and availability
2680996Ferrari Brake Servo LHD - 680996Price on requestContact us for price and availability
2681075Ferrari Brake Servo RHD - 681075$806.63Available, ships in 3-6 days
2681075/BFerrari Brake Master Cylinder Only RHD - 681075/B$806.63Available, ships in 3-6 days
3680986Ferrari Brake Fluid Reservoir - 680986$21.56Available, ships in 3-6 days
395691500/AFerrari Brake Fluid Reservoir Plug - 95691500/A$21.56Available, ships in 3-6 days
4101389Ferrari Brake Reservoir Seal - 101389$53.80Available, ships in 3-6 days
595930513Ferrari Washer - 95930513Price on requestContact us for price and availability
6104030Ferrari/Maserati Nut - 104030$0.88In stock
7660169Ferrari Clevis Pin - 660169$29.00Available, ships in 3-6 days
8100964Ferrari Washer - 100964Price on requestContact us for price and availability
910734301Ferrari Split Pin 2X18 - 10734301$0.13Available, ships in 3-6 days
1095850605Ferrari Compensator Ring Bush - 95850605$1.11Available, ships in 3-6 days
11660333Ferrari Pin Servo Arm - 660333$19.84Available, ships in 3-6 days
12660347Ferrari Bush - 660347$9.90Available, ships in 3-6 days
13660498Ferrari Bracket - 660498$104.44Available, ships in 3-6 days
14660574Ferrari Clevis Pin - 660574$17.40Available, ships in 3-6 days
16660575Ferrari LH Tie Rod - 660575$39.12Available, ships in 3-6 days
17101305Ferrari/Maserati Pedal Spring - 101305$53.79In stock
17660343Ferrari Spring - 660343SupersededOrder 101305 instead
18100787Ferrari Suspension Inner Bushing - 100787$7.58In stock
19660772Ferrari Brake Lever - 660772$235.44Available, ships in 3-6 days
20660340Ferrari Rubber Boot - 660340$82.24Available, ships in 3-6 days
21680801Ferrari Brake Pedal Rod - 680801Price on requestContact us for price and availability
21660801Ferrari Control - 660801$31.95Available, ships in 3-6 days
2295285Ferrari Nut - 95285Price on requestContact us for price and availability
23660167Ferrari RH Tie Rod - 660167Price on requestContact us for price and availability
244032794Ferrari Nylon Nut - 4032794$5.59Available, ships in 3-6 days
24660523Ferrari Nut - 660523Price on requestContact us for price and availability
25101663Ferrari Brake Light Switch - 101663$42.85In stock
25660522Ferrari Switch Stop - 660522SupersededOrder 101663 instead
26660524Ferrari Nut - 660524SupersededOrder 10791211 instead
2610791211Ferrari Nut - 10791211$0.96Available, ships in 3-6 days
27660791Ferrari Brake Pedal Assy - 660791Price on requestContact us for price and availability
28100976Ferrari Brake Pedal Pad - 100976$20.85In stock
28660737Ferrari Pedal Rubber - 660737SupersededOrder 100976 instead
2916043824Ferrari Bolt M8 x 30 - 16043824$0.86Available, ships in 3-6 days
2916043821Ferrari Bolt 8 x 30 UNI 5737 - 16043821SupersededOrder 16043824 instead
2995192Ferrari Bolt - 95192SupersededOrder 101308 instead
29101308Ferrari Bolt - 101308$16.37Available, ships in 3-6 days
30101139Ferrari Nyloc Nut 8x1.25mm - 101139$0.60Available, ships in 3-6 days
31125761Ferrari Servo Hose RHD - 125761Price on requestContact us for price and availability
32680942Ferrari Tube - 680942Price on requestContact us for price and availability
3395024Ferrari Clip - 95024Price on requestContact us for price and availability
101388Ferrari Brake Fluid Reservoir - 101388Price on requestContact us for price and availability
680988Ferrari Brake Reservoir Seal - 680988Price on requestContact us for price and availability
101315Ferrari Bush - 101315SupersededOrder 100787 instead
600750Ferrari Bush - 600750SupersededOrder 100787 instead
660826Ferrari Bush - 660826SupersededOrder 100787 instead
16104125Ferrari Nut - 16104125SupersededOrder 104030 instead
16104421Ferrari Nut GTB - 16104421SupersededOrder 101139 instead
16104425Ferrari Nyloc Nut - 16104425SupersededOrder 101139 instead
101662Ferrari Nylon Nut - 101662Price on requestContact us for price and availability
4177124Ferrari Stop Switch - 4177124SupersededOrder 101663 instead
