Ferrari 365 GTB4 (Daytona) — Brake Lines System (diagram 029)

Exploded view of the brake lines system on the Ferrari 365 GTB4 (Daytona), with 22 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

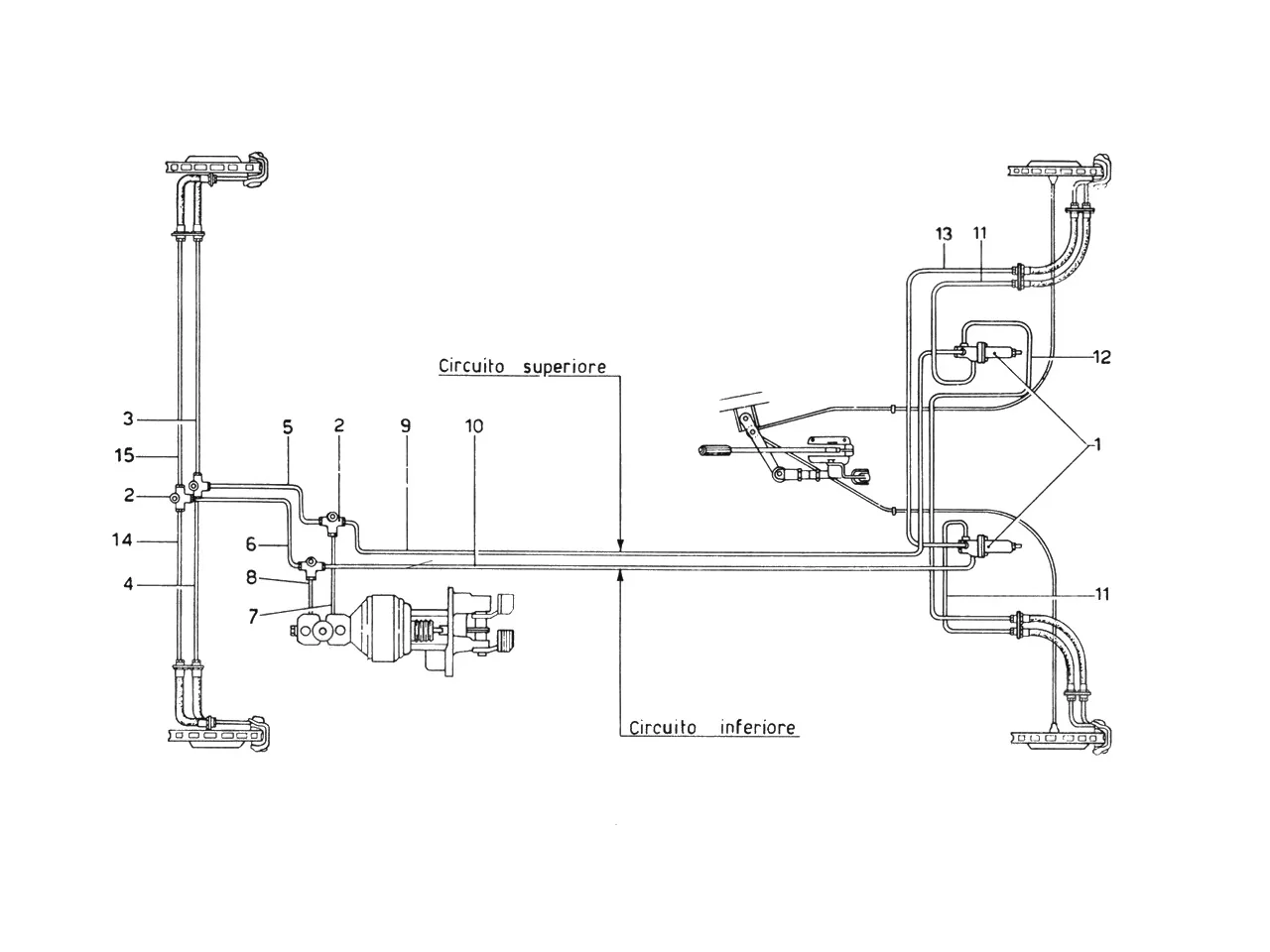

Ferrari 365 GTB4 (Daytona) Brake Lines System exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1105041Ferrari Brake Regulator Valve Mcp26 - 105041$894.64Special order, ships in 7-14 days
2101394Ferrari 3-Way Union - 101394$177.28Available, ships in 3-6 days
3101390Ferrari Tube - 101390$13.36Available, ships in 3-6 days
3680672Ferrari Small Pipe - 680672SupersededOrder 101390 instead
4680671Ferrari Brake Pipe - 680671Price on requestContact us for price and availability
5680669Ferrari Tube - 680669Price on requestContact us for price and availability
6680670Ferrari Small Pipe - 680670Price on requestContact us for price and availability
7680667Ferrari Brake Pipe - 680667$11.42Available, ships in 3-6 days
8680668Ferrari Tube - 680668$9.47Available, ships in 3-6 days
9680680Ferrari Tube - 680680Price on requestContact us for price and availability
10680679Ferrari Tube - 680679$45.23Special order, ships in 7-14 days
11680683Ferrari Pipe - 680683Price on requestContact us for price and availability
12680681Ferrari Tube - 680681Price on requestContact us for price and availability
13680684Ferrari Small Pipe - 680684Price on requestContact us for price and availability
14101399Ferrari Pipe - 101399$20.59Available, ships in 3-6 days
14680673Ferrari Pipe - 680673SupersededOrder 101399 instead
15680674Ferrari Pipe - 680674Price on requestContact us for price and availability
680980Ferrari 3-Way Union - 680980SupersededOrder 101394 instead
101406Ferrari Brake Bundy Pipe - 101406Price on requestContact us for price and availability
101407Ferrari Brake Pipe RHD - 101407Price on requestContact us for price and availability
107366Ferrari Brake Pipe RHD - 107366Price on requestContact us for price and availability
105854Ferrari Bundy Tube - 105854Price on requestContact us for price and availability
