Ferrari 365 GTB4 (Daytona) — Brake Lines System (1974 Revision - Cars With Air Pollution System) (diagram 029A)

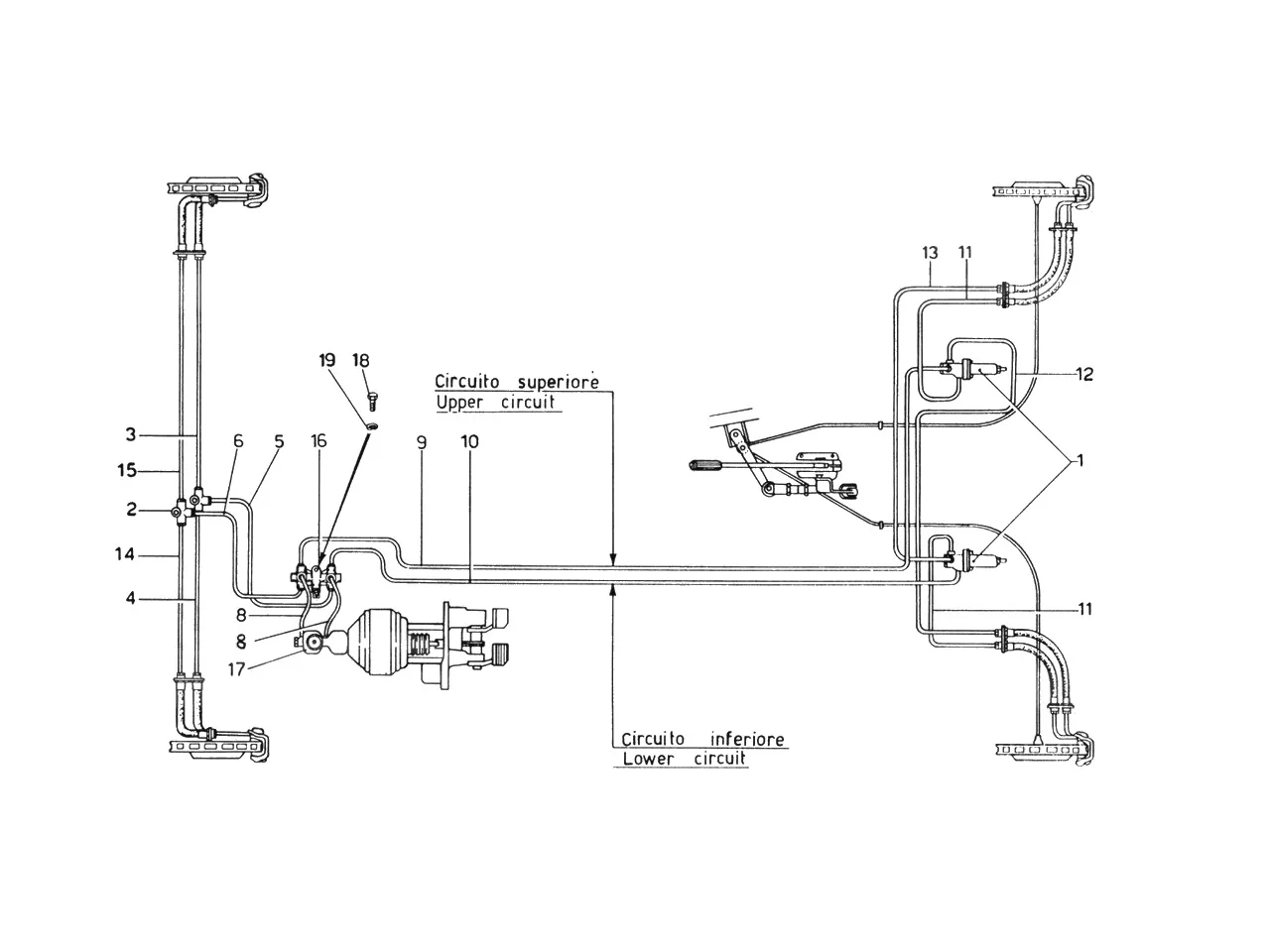

Exploded view of the brake lines system (1974 revision - cars with air pollution system) on the Ferrari 365 GTB4 (Daytona), with 29 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 365 GTB4 (Daytona) Brake Lines System (1974 Revision - Cars With Air Pollution System) exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
2680980Ferrari 3-Way Union - 680980SupersededOrder 101394 instead
3101390Ferrari Tube - 101390$13.36Available, ships in 3-6 days
3680672Ferrari Small Pipe - 680672SupersededOrder 101390 instead
4680671Ferrari Brake Pipe - 680671Price on requestContact us for price and availability
5680829Ferrari Tube - 680829Price on requestContact us for price and availability
6680828Ferrari Tube - 680828Price on requestContact us for price and availability
8680827Ferrari Tube - 680827Price on requestContact us for price and availability
9680830Ferrari Bundy Pipe - 680830$25.95Special order, ships in 7-14 days
10680831Ferrari Tube - 680831Price on requestContact us for price and availability
11680683Ferrari Pipe - 680683Price on requestContact us for price and availability
12680681Ferrari Tube - 680681Price on requestContact us for price and availability
13680684Ferrari Small Pipe - 680684Price on requestContact us for price and availability
14101399Ferrari Pipe - 101399$20.59Available, ships in 3-6 days
14680673Ferrari Pipe - 680673SupersededOrder 101399 instead
15680674Ferrari Pipe - 680674Price on requestContact us for price and availability
16680979Ferrari Valve - 680979Price on requestContact us for price and availability
17680986Ferrari Brake Fluid Reservoir - 680986$21.56Available, ships in 3-6 days
1795691500/AFerrari Brake Fluid Reservoir Plug - 95691500/A$21.56Available, ships in 3-6 days
1816043934Ferrari Screw M8 x 35 - 16043934$0.54Available, ships in 3-6 days
1816043921Ferrari Bolt - 16043921SupersededOrder 16043934 instead
19104030Ferrari/Maserati Nut - 104030$0.88In stock
1916104111Ferrari Nut - 16104111SupersededOrder 104030 instead
101394Ferrari 3-Way Union - 101394$177.28Available, ships in 3-6 days
101415Ferrari Brake Balance Valve F/R - 101415Price on requestContact us for price and availability
101406Ferrari Brake Bundy Pipe - 101406Price on requestContact us for price and availability
101388Ferrari Brake Fluid Reservoir - 101388Price on requestContact us for price and availability
101407Ferrari Brake Pipe RHD - 101407Price on requestContact us for price and availability
107366Ferrari Brake Pipe RHD - 107366Price on requestContact us for price and availability
16104125Ferrari Nut - 16104125SupersededOrder 104030 instead

All 365 GTB4 (Daytona) diagrams
