Ferrari 365 GTB4 (Daytona) — Wheels & Tyres (diagram 031)

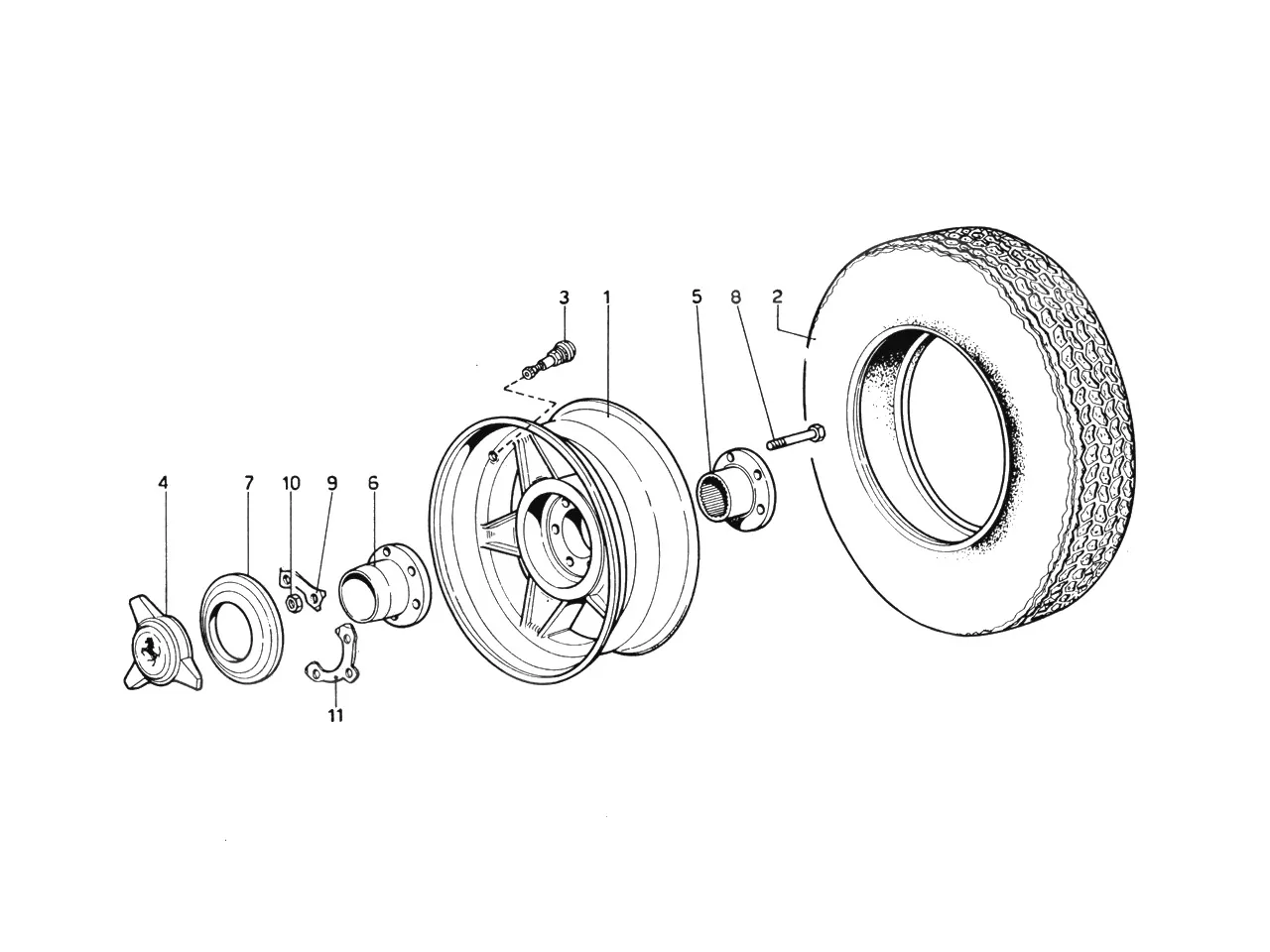

Exploded view of the wheels & tyres on the Ferrari 365 GTB4 (Daytona), with 27 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/031.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 700338 | Ferrari Borrani Wheel Rw4075 7 1/2" x 15" - 700338 | Price on request | Contact us for price and availability |
| 1 | 101227 | Ferrari Road Wheel - 101227 | Price on request | Contact us for price and availability |
| 1 | 109193 | Ferrari Road Wheel 9Lx15 magnesium - 109193 | $1,770.31 | Available, ships in 3-6 days |
| 1 | 109193/A/D | Ferrari Road Wheel 9Lx15 alloy - 109193/A/D | $1,495.86 | Available, ships in 3-6 days |
| 2 | 101237 | Ferrari 215Vr7015 Xwx Michelin Tyre T/Ls - 101237 | Price on request | Contact us for price and availability |
| 2 | 109187 | Ferrari Tyre Michelin XWX 225/70VR15 - 109187 | $969.12 | Special order, ships in 7-14 days |
| 3 | 174166 | Ferrari Tire Valve - 174166 | $17.16 | In stock |
| 3 | 105069 | Ferrari Tyre Valve - 105069 | Price on request | Special order, ships in 7-14 days |
| 4 | 110524 | Ferrari LH Hub Nut RH Thread - 110524 | $2,901.07 | Available, ships in 3-6 days |
| 4 | 110525 | Ferrari RH Hub Nut LH Thread - 110525 | $2,901.07 | Available, ships in 3-6 days |
| 4 | 102197 | Ferrari RH Hub Wing Nut - 102197 | Superseded | Order 110525 instead |
| 4 | 101230 | Ferrari LH Hub Wing Nut - 101230 | Superseded | Order 110524 instead |
| 4 | 106159 | Ferrari RH Hub Octagonal Nut - 106159 | Superseded | Order 110526 instead |
| 4 | 110526 | Ferrari Hex Hub Nut RH Thread - 110526 | $516.41 | Available, ships in 3-6 days |
| 4 | 106160 | Ferrari LH Hub Octagonal Nut - 106160 | Price on request | Contact us for price and availability |
| 5 | 700513 | Ferrari Wheel Centre Hub - 700513 | Price on request | Contact us for price and availability |
| 6 | 700512 | Ferrari Wheel Centre Hub - 700512 | Price on request | Contact us for price and availability |
| 7 | 700514 | Ferrari Wheel Trim - 700514 | Superseded | Order 101233 instead |
| 7 | 101233 | Ferrari Wheel Trim - 101233 | $265.07 | Available, ships in 3-6 days |
| 8 | 700515 | Ferrari Bolt - 700515 | Price on request | Contact us for price and availability |
| 9 | 700516 | Ferrari Locktab - 700516 | Superseded | Order 101235 instead |
| 9 | 101235 | Ferrari 2 Hole Locktab - 101235 | $31.66 | Available, ships in 3-6 days |
| 10 | 95900704 | Ferrari Nut - 95900704 | $24.94 | Available, ships in 3-6 days |
| 11 | 700517 | Ferrari Locking Plate - 700517 | Superseded | Order 101236 instead |
| 11 | 101236 | Ferrari Locking Plate 3 hole - 101236 | $35.90 | Available, ships in 3-6 days |
| 110527 | Ferrari Hex Hub Nut LH Thread - 110527 | Price on request | Contact us for price and availability | |
| 700709 | Ferrari Michelen Tyre 215/70 Vr 15Xwx - 700709 | Price on request | Contact us for price and availability |
