Ferrari 365 GTB4 (Daytona) — Fuel Tanks & Piping (diagram 034)

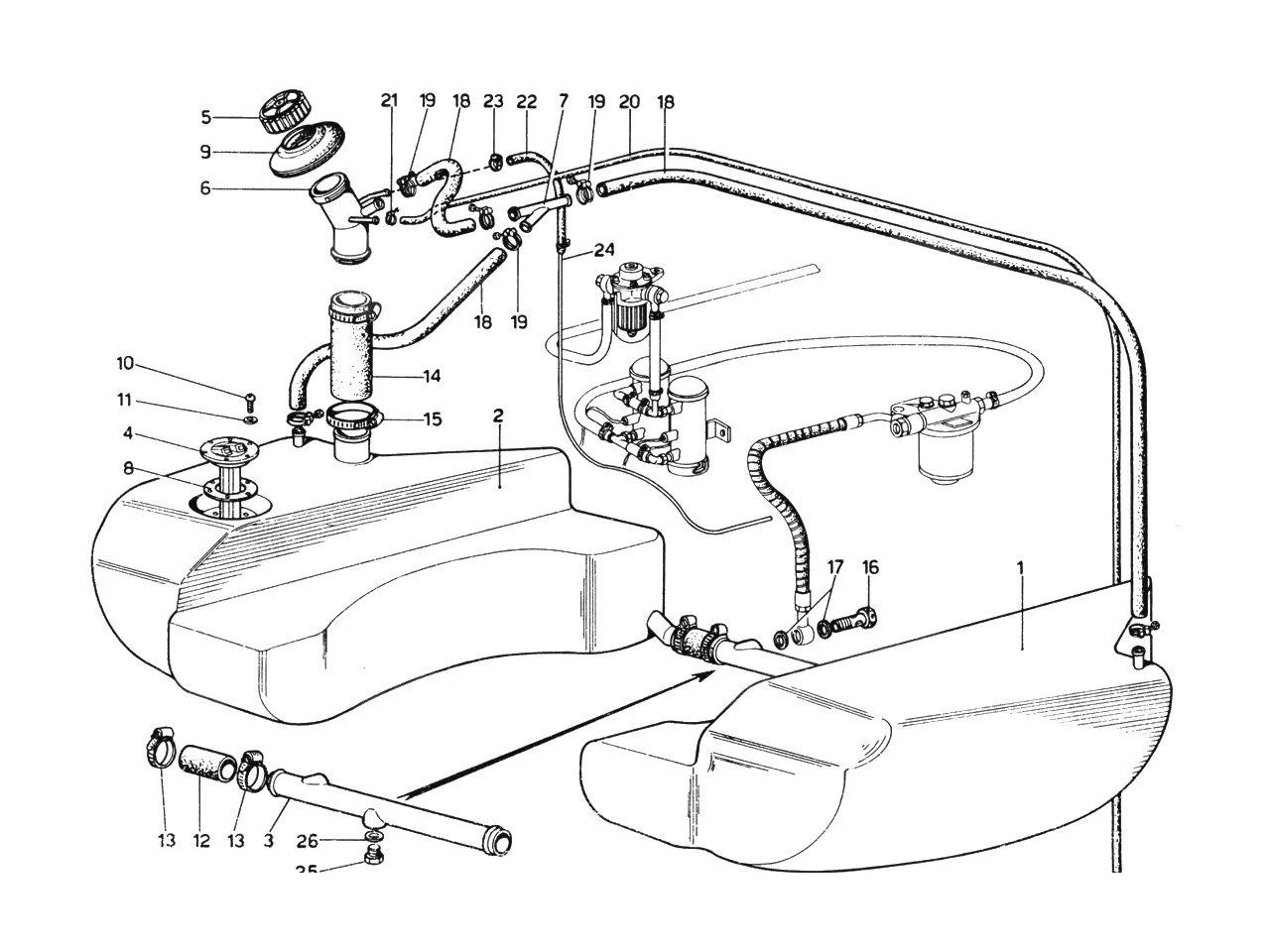

Exploded view of the fuel tanks & piping on the Ferrari 365 GTB4 (Daytona), with 49 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 365 GTB4 (Daytona) Fuel Tanks & Piping exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1820801Ferrari RH Fuel Tank - 820801Price on requestContact us to order
1821195Ferrari RH Fuel Tank - 821195Price on requestContact us to order
2820802Ferrari LH Fuel Tank - 820802Price on requestContact us to order
2821194Ferrari LH Fuel Tank - 821194Price on requestContact us to order
3820806Ferrari Fuel Tank Bridge Pipe - 820806Price on requestContact us for price and availability
4MC3701/100Ferrari Fuel Tank Sending Unit - MC3701/100$199.98In stock
4FLS101Ferrari Fuel Level Sensor - FLS101$162.80In stock
4821367Ferrari Tank Sender 678040 Mc3701/100 - 821367$228.03Available, ships in 3-6 days
5820486Ferrari Petrol Filler Cap - 820486$732.05Available, ships in 3-6 days
6820820Ferrari Hose - 820820Price on requestContact us for price and availability
6820853Ferrari Hose - 820853Price on requestContact us for price and availability
7820772Ferrari Connector - 820772Price on requestContact us for price and availability
8101462Ferrari Fuel Sending Unit Gasket - 101462$21.95In stock
882925Ferrari Gasket - 82925SupersededOrder 101462 instead
9101465Ferrari Gasket - Fuel Filler Neck - 101465$115.48Available, ships in 3-6 days
1010374911Ferrari Screw - 10374911$0.52Available, ships in 3-6 days
1111195370Ferrari Spring Washer 4mm - 11195370$0.71Available, ships in 3-6 days
12114277Ferrari Fuel Tank Connecting Hose - 114277$48.02In stock
12114277KITFerrari 308/328 Fuel Tank Hose Kit - 114277KIT$106.15In stock
1295003Ferrari Hose - 95003SupersededOrder 114277 instead
1313000690Ferrari/Maserati Hose Clamp - 13000690$1.49In stock
1312174090Ferrari Hose Clip 32-50 - 12174090SupersededOrder 13000690 instead
1495458Ferrari Fuel filler Hose - 95458$99.99Available, ships in 3-6 days
1512174790Ferrari Hose Clip - 12174790Price on requestContact us for price and availability
1695252Ferrari Union - 95252$113.14Available, ships in 3-6 days
1792930Ferrari Washer - 92930SupersededOrder 10263160 instead
1710263160Ferrari Washer D. 18-24 x 1 - 10263160$0.54Available, ships in 3-6 days
19100507Ferrari Jubilee Clip - 100507SupersededOrder 13000390 instead
1912179590Ferrari Hose Clip 16-25 - 12179590SupersededOrder 13000390 instead
1913000390Ferrari Screw Collar 16-25mm - 13000390SupersededOrder 178052 instead
2095605Ferrari Oil Breather Tube - 95605Price on requestContact us for price and availability
21157990Ferrari Hose Retaining Clip D. 7 - 11 x 5 - 157990$4.14Available, ships in 3-6 days
21101296Ferrari Clip - 101296Price on requestContact us for price and availability
21102721Ferrari Clip - 102721SupersededOrder 157990 instead
2295606Ferrari Tube - 95606Price on requestContact us for price and availability
249181044Ferrari T Piece - 9181044Price on requestContact us for price and availability
25103974Ferrari Oil Drain Plug - 103974$43.33In stock
2510300771Ferrari Drain Plug - 10300771$46.73Available, ships in 3-6 days
26101478Ferrari Gasket - 101478$2.30Available, ships in 3-6 days
2695109Ferrari Gasket - 95109SupersededOrder 101478 instead
105303Ferrari Clamp - 105303SupersededOrder 13000690 instead
12173990Ferrari Clip - 12173990SupersededOrder 13000690 instead
12179090Ferrari Clip - 12179090SupersededOrder 157990 instead
20236907Ferrari Clip - 20236907Price on requestContact us for price and availability
12173890Ferrari Fuel Hose Clip 25-40 - 12173890$1.48Available, ships in 3-6 days
241-20-600-00Ferrari Gasket - 241-20-600-00SupersededOrder 101465 instead
101468Ferrari Hose - 101468SupersededOrder 114277 instead
108785Ferrari Hose Clip - 108785$3.26Available, ships in 3-6 days
12177090Ferrari Hose Clip 32-50 - 12177090SupersededOrder 13000690 instead
