Ferrari 365 GTB4 (Daytona) — Generator, Accumulator Coils & Starter (diagram 035)

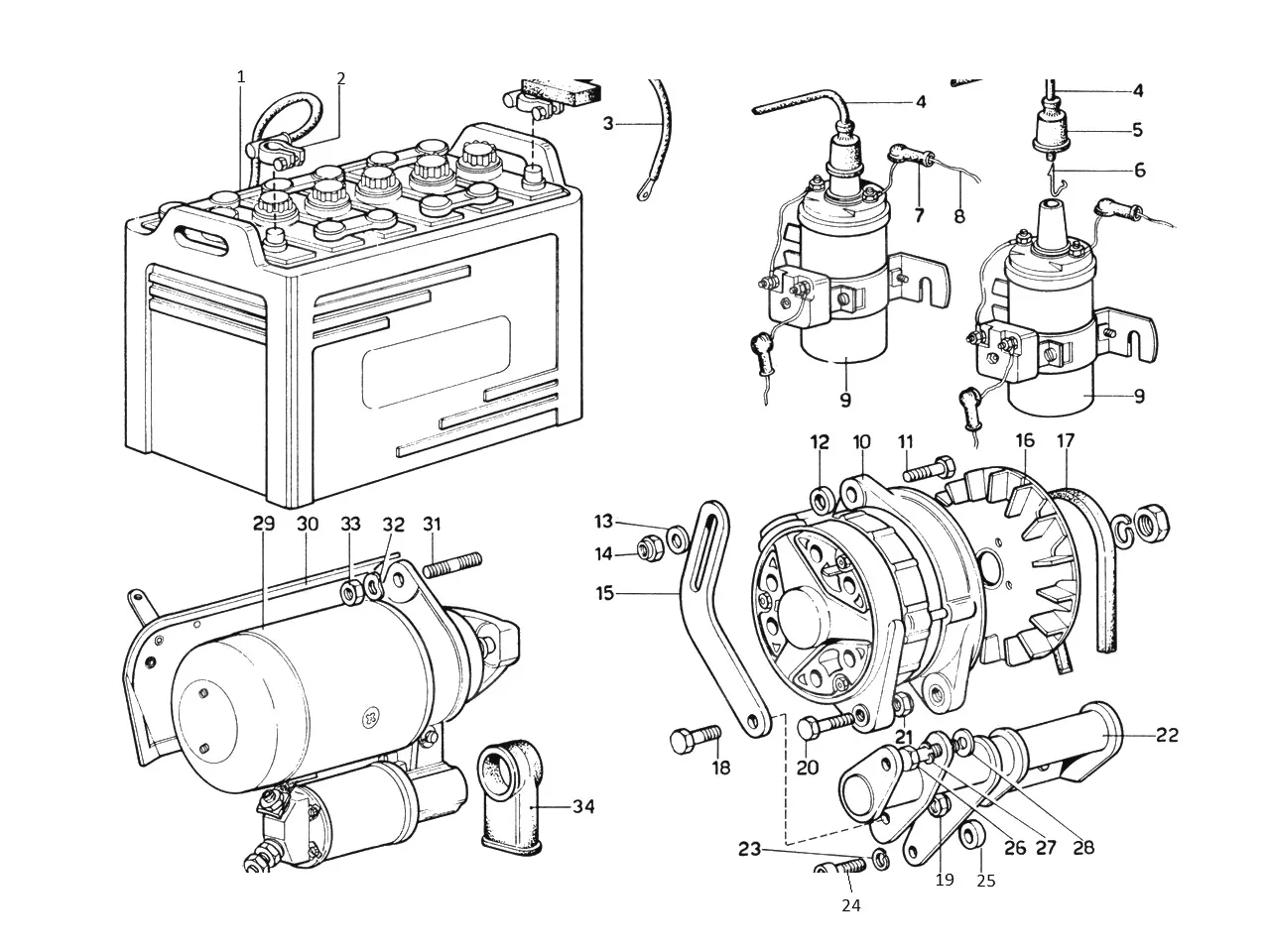

Exploded view of the generator, accumulator coils & starter on the Ferrari 365 GTB4 (Daytona), with 51 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/035.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 105686 | Ferrari Battery Dry - 105686 | Price on request | Contact us for price and availability |
| 2 | 400048 | Ferrari Cable 1320mm - 400048 | Price on request | Contact us for price and availability |
| 3 | 400049 | Ferrari Cable 360mm - 400049 | Price on request | Contact us for price and availability |
| 4 | 12056986 | Ferrari Coil Cover - 12056986 | $2.05 | Available, ships in 3-6 days |
| 4 | 12056286 | Ferrari Coil Cover - 12056286 | Price on request | Special order, ships in 7-14 days |
| 5 | 29238 | Ferrari Coil Cover - 29238 | Price on request | Contact us for price and availability |
| 6 | 29237 | Ferrari Terminal - 29237 | Price on request | Contact us for price and availability |
| 7 | 28919 | Ferrari Coil Cover Small - 28919 | $5.44 | Available, ships in 3-6 days |
| 9 | 109584 | Ferrari Ignition Coil-109584 | $395.00 | In stock |
| 9 | BK2A | Marelli Ignition Coil - BK2A | $104.45 | In stock |
| 9 | 100262 | Ferrari Ignition Coil - 100262 | Price on request | Special order, ships in 7-14 days |
| 10 | 105406 | Ferrari Alternator - 105406 | Price on request | Contact us for price and availability |
| 12 | 30913 | Ferrari Spacer - 30913 | $17.54 | Available, ships in 3-6 days |
| 13 | 95930513 | Ferrari Washer - 95930513 | Price on request | Contact us for price and availability |
| 14 | 95900603 | Ferrari Domed Nut - 95900603 | Price on request | Contact us for price and availability |
| 15 | 30888 | Ferrari Generator Adjustment Bracket - 30888 | $102.62 | Available, ships in 3-6 days |
| 16 | 30922 | Ferrari Alternator Pulley - 30922 | $315.81 | Available, ships in 3-6 days |
| 16 | 300055 | Ferrari Alternator Pulley - 300055 | $315.81 | Available, ships in 3-6 days |
| 17 | 300071 | Ferrari 365 GTB/4 Daytona Alternator Belt - 300071 | $20.90 | In stock |
| 22 | 30919 | Ferrari Generator Support Bracket - 30919 | $538.43 | Available, ships in 3-6 days |
| 23 | 10516870 | Ferrari Spring Washer - 10516870 | Price on request | Contact us for price and availability |
| 24 | 95487 | Ferrari Screw - 95487 | Price on request | Contact us for price and availability |
| 25 | 30912 | Ferrari Spacer - 30912 | Price on request | Contact us for price and availability |
| 28 | 4146930 | Ferrari Washer - 4146930 | Price on request | Contact us for price and availability |
| 29 | 13218HT | Ferrari Starter Motor - 13218HT | $841.50 | In stock |
| 29 | 13218GR | Ferrari Starter Motor - 13218GR | $841.50 | In stock |
| 30 | 13240 | Ferrari Shield - 13240 | Price on request | Contact us for price and availability |
| 31 | 95203 | Ferrari Stud - 95203 | $2.64 | Available, ships in 3-6 days |
| 31 | 95203/A | Ferrari Stud - 95203/A | Price on request | Special order, ships in 7-14 days |
| 32 | 12601571 | Ferrari Washer - 12601571 | Superseded | Order 12646724 instead |
| 32 | 12646724 | Ferrari Washer 8.45-20x2 - 12646724 | $0.19 | Available, ships in 3-6 days |
| 33 | 95204 | Ferrari Nut - 95204 | Superseded | Order 103047 instead |
| 33 | 103047 | Ferrari Nut - 103047 | $8.97 | Available, ships in 3-6 days |
| 34 | 13195 | Ferrari Cable Cover - 13195 | Price on request | Contact us for price and availability |
| 34 | 111764 | Ferrari Regulator Box RTT110B - 111764 | $696.88 | Available, ships in 3-6 days |
| 300070 | Ferrari Alternator - 300070 | Price on request | Contact us for price and availability | |
| 107547 | Ferrari Battery Earth Cable - 107547 | $107.05 | Special order, ships in 7-14 days | |
| 10413870 | Ferrari Belleville Washer - 10413870 | Superseded | Order 12646724 instead | |
| 100457 | Ferrari Cable Cover - 100457 | $204.43 | Special order, ships in 7-14 days | |
| 28918 | Ferrari Coil Cover - 28918 | Price on request | Contact us for price and availability | |
| 113857 | Ferrari Dry Battery - 113857 | Price on request | Contact us for price and availability | |
| 100455 | Ferrari Heat Shield - 100455 | Price on request | Contact us for price and availability | |
| 350278 | Ferrari Regulator - 350278 | Price on request | Contact us for price and availability | |
| 100454 | Ferrari Starter Motor - 100454 | $5,228.61 | Available, ships in 3-6 days | |
| 100479 | Ferrari Voltage Regulator - 100479 | $1,815.10 | Available, ships in 3-6 days | |
| 102901 | Ferrari Washer - 102901 | $0.06 | Available, ships in 3-6 days | |
| 12601570 | Ferrari Washer - 12601570 | Superseded | Order 12646724 instead | |
| 12646721 | Ferrari Washer - 12646721 | Superseded | Order 12646724 instead | |
| - | 95130014 | Ferrari 250GTE/275/330 Starter Motor Pinion - 95130014 | $636.62 | Available, ships in 3-6 days |
| - | 112786 | Ferrari Regulator - 112786 | $696.88 | Available, ships in 3-6 days |
| - | 95130001 | Ferrari Starter Motor Solenoid - 95130001 | $799.10 | Available, ships in 3-6 days |
