Ferrari 365 GTB4 (Daytona) — Generator, Accumulator Coils & Starter (1974 Revision - Cars With Air Pollution System) (diagram 035A)

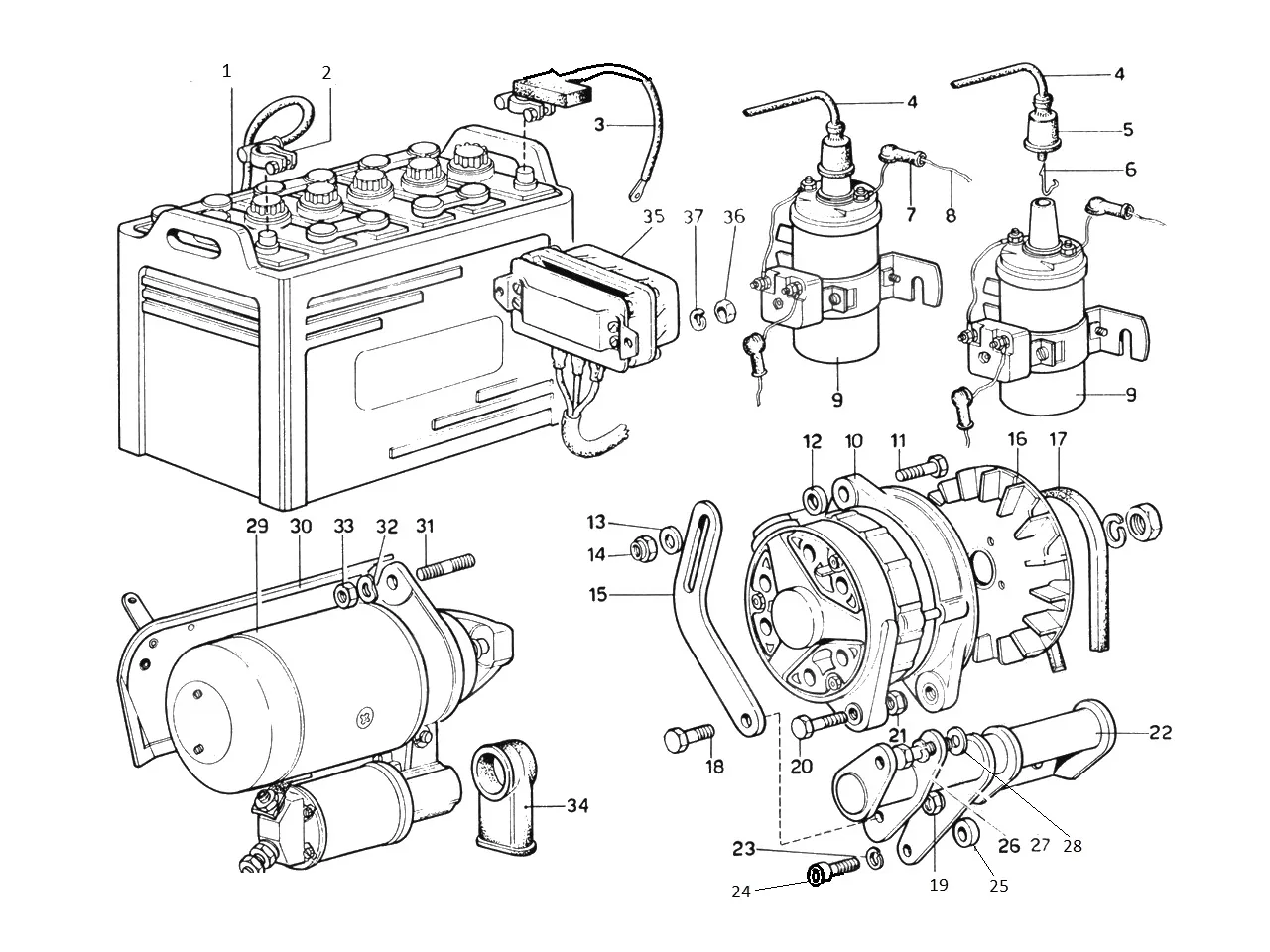

Exploded view of the generator, accumulator coils & starter (1974 revision - cars with air pollution system) on the Ferrari 365 GTB4 (Daytona), with 36 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/035A.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 401335 | Ferrari Battery 74Ah - 401335 | Price on request | Contact us for price and availability |
| 2 | 400048 | Ferrari Cable 1320mm - 400048 | Price on request | Contact us for price and availability |
| 3 | 400049 | Ferrari Cable 360mm - 400049 | Price on request | Contact us for price and availability |
| 5 | 28918 | Ferrari Coil Cover - 28918 | Price on request | Contact us for price and availability |
| 6 | 29237 | Ferrari Terminal - 29237 | Price on request | Contact us for price and availability |
| 7 | 28919 | Ferrari Coil Cover Small - 28919 | $5.44 | Available, ships in 3-6 days |
| 9 | 109584 | Ferrari Ignition Coil-109584 | $395.00 | In stock |
| 9 | BK2A | Marelli Ignition Coil - BK2A | $104.45 | In stock |
| 9 | 29321 | Ferrari Ignition Coil - 29321 | $2,495.43 | Available, ships in 3-6 days |
| 10 | 300070 | Ferrari Alternator - 300070 | Price on request | Contact us for price and availability |
| 12 | 30913 | Ferrari Spacer - 30913 | $17.54 | Available, ships in 3-6 days |
| 15 | 30888 | Ferrari Generator Adjustment Bracket - 30888 | $102.62 | Available, ships in 3-6 days |
| 16 | 30922 | Ferrari Alternator Pulley - 30922 | $315.81 | Available, ships in 3-6 days |
| 16 | 300055 | Ferrari Alternator Pulley - 300055 | $315.81 | Available, ships in 3-6 days |
| 17 | 300071 | Ferrari 365 GTB/4 Daytona Alternator Belt - 300071 | $20.90 | In stock |
| 22 | 300020 | Ferrari Support - 300020 | $338.14 | Available, ships in 3-6 days |
| 25 | 30912 | Ferrari Spacer - 30912 | Price on request | Contact us for price and availability |
| 27 | 10516870 | Ferrari Spring Washer - 10516870 | Price on request | Contact us for price and availability |
| 28 | 4146930 | Ferrari Washer - 4146930 | Price on request | Contact us for price and availability |
| 29 | 13218HT | Ferrari Starter Motor - 13218HT | $841.50 | In stock |
| 29 | 13218GR | Ferrari Starter Motor - 13218GR | $841.50 | In stock |
| 30 | 13240 | Ferrari Shield - 13240 | Price on request | Contact us for price and availability |
| 31 | 95203 | Ferrari Stud - 95203 | $2.64 | Available, ships in 3-6 days |
| 31 | 95203/A | Ferrari Stud - 95203/A | Price on request | Special order, ships in 7-14 days |
| 33 | 95204 | Ferrari Nut - 95204 | Superseded | Order 103047 instead |
| 33 | 103047 | Ferrari Nut - 103047 | $8.97 | Available, ships in 3-6 days |
| 34 | 13195 | Ferrari Cable Cover - 13195 | Price on request | Contact us for price and availability |
| 35 | 350278 | Ferrari Regulator - 350278 | Price on request | Contact us for price and availability |
| 37 | 11195470 | Ferrari 5mm Wavy Washer - 11195470 | $0.21 | Available, ships in 3-6 days |
| 105406 | Ferrari Alternator - 105406 | Price on request | Contact us for price and availability | |
| 107547 | Ferrari Battery Earth Cable - 107547 | $107.05 | Special order, ships in 7-14 days | |
| 100457 | Ferrari Cable Cover - 100457 | $204.43 | Special order, ships in 7-14 days | |
| 12056286 | Ferrari Coil Cover - 12056286 | Price on request | Special order, ships in 7-14 days | |
| 100455 | Ferrari Heat Shield - 100455 | Price on request | Contact us for price and availability | |
| 100454 | Ferrari Starter Motor - 100454 | $5,228.61 | Available, ships in 3-6 days | |
| 102901 | Ferrari Washer - 102901 | $0.06 | Available, ships in 3-6 days |
