Ferrari 365 GTB4 (Daytona) — Exhaust System (diagram 036)

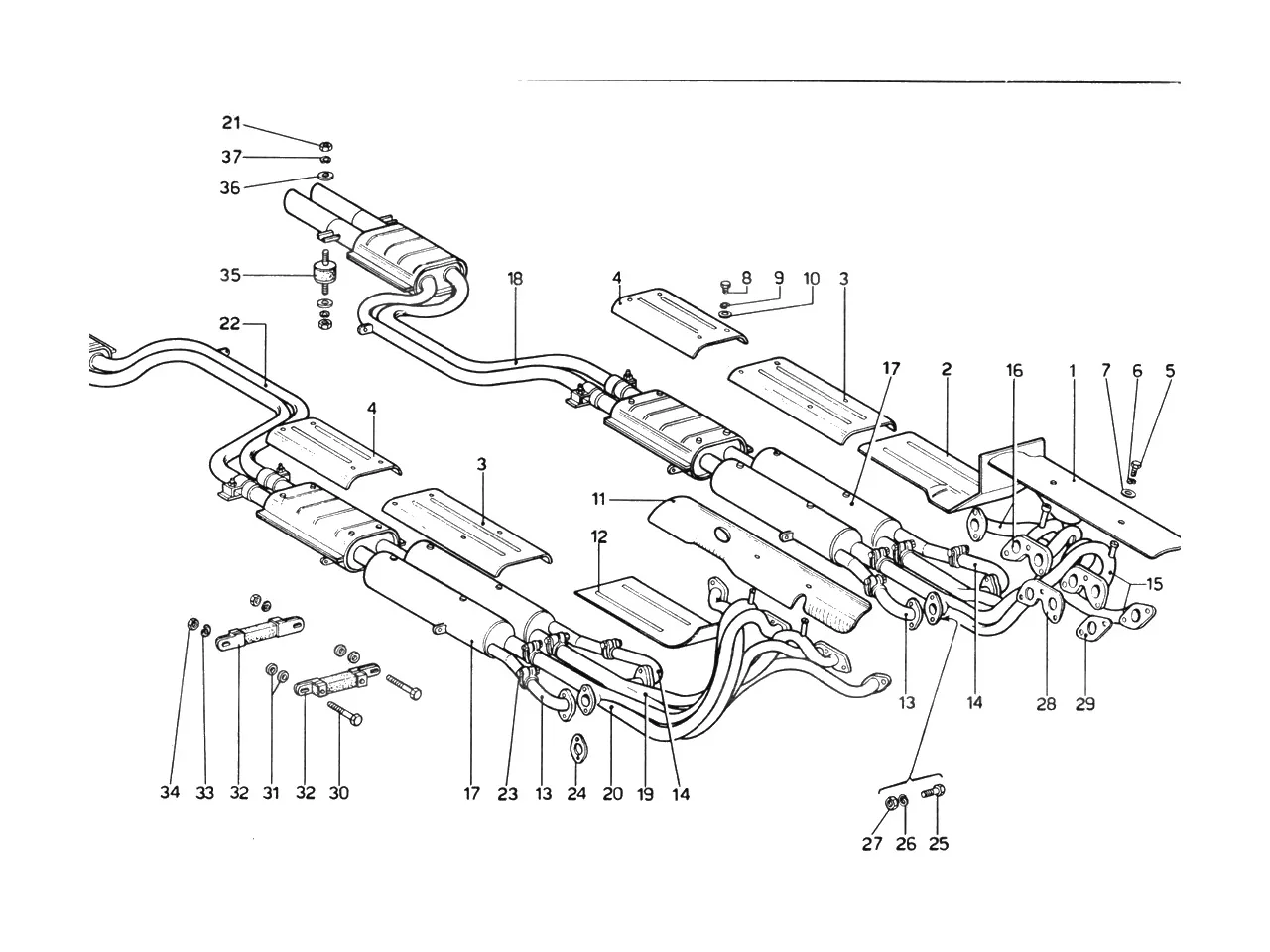

Exploded view of the exhaust system on the Ferrari 365 GTB4 (Daytona), with 48 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/036.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 20439 | Ferrari LH Shield - 20439 | Price on request | Contact us for price and availability |
| 2 | 20442 | Ferrari LH Shield - 20442 | Price on request | Contact us for price and availability |
| 3 | 20443 | Ferrari Heat Shield - 20443 | Price on request | Contact us for price and availability |
| 4 | 20444 | Ferrari Rear Heat Shield - 20444 | Price on request | Contact us for price and availability |
| 5 | 10902224 | Ferrari Screw M6 x 16 - 10902224 | $0.12 | Available, ships in 3-6 days |
| 5 | 95880303 | Ferrari Bolt - 95880303 | $0.11 | Available, ships in 3-6 days |
| 6 | 127494 | Ferrari Lock Washer - 127494 | $0.50 | In stock |
| 6 | 10516470 | Ferrari Washer 6 R 4 - 10516470 | Superseded | Order 127494 instead |
| 7 | 12643701 | Ferrari Flat Washer - 12643701 | $0.12 | Available, ships in 3-6 days |
| 7 | 94703 | Ferrari Washer - 94703 | Superseded | Order 12643701 instead |
| 8 | 95880301 | Ferrari Bolt M6 x 10 UNI 5739 - 95880301 | Price on request | Contact us for price and availability |
| 11 | 20440 | Ferrari RH Shield - 20440 | Price on request | Contact us for price and availability |
| 12 | 20441 | Ferrari RH Shield - 20441 | Price on request | Contact us for price and availability |
| 13 | 20448 | Ferrari RH Balance Pipe - 20448 | $110.92 | Special order, ships in 7-14 days |
| 14 | 20447 | Ferrari LH Balance Pipe - 20447 | $110.92 | Special order, ships in 7-14 days |
| 15 | 20436 | Ferrari 365GTB4 68-70 LHF Exhaust Manifold - 20436 | $7,998.51 | Available, ships in 3-6 days |
| 15 | 20435/K/U | Ferrari 365GTB/4 Competition Exhaust Manifold Set - 20435/K/U | $7,998.51 | Available, ships in 3-6 days |
| 16 | 20438 | Ferrari 365GTB4 68-70 LHR Exhaust Manifold - 20438 | $7,998.51 | Available, ships in 3-6 days |
| 17 | 20424 | Ferrari 365GTB4 68-70 Main Silencer - 20424 | $3,127.40 | Available, ships in 3-6 days |
| 18 | 20446 | Ferrari LH Rear Tail Pipe - 20446 | $1,880.93 | Available, ships in 3-6 days |
| 19 | 20435 | Ferrari 365GTB4 68-70 RHF Exhaust Manifold - 20435 | $7,998.51 | Available, ships in 3-6 days |
| 20 | 20437 | Ferrari 365GTB4 68-70 RHR Exhaust Manifold - 20437 | $7,998.51 | Available, ships in 3-6 days |
| 21 | 134041 | Ferrari Nut 6mm - 134041 | $1.80 | Available, ships in 3-6 days |
| 21 | 15896221 | Ferrari Nut - 15896221 | Superseded | Order 134041 instead |
| 22 | 20445 | Ferrari RH Rear Tail Pipe - 20445 | $1,880.93 | Available, ships in 3-6 days |
| 23 | 20337 | Ferrari Exhaust Clamp - 20337 | $16.85 | Available, ships in 3-6 days |
| 24 | 20412 | Ferrari Gasket - 20412 | Price on request | Contact us for price and availability |
| 25 | 92885 | Ferrari Bolt - 92885 | Price on request | Contact us for price and availability |
| 26 | 12603871 | Ferrari Wavy Washer 7mm - 12603871 | $0.59 | Available, ships in 3-6 days |
| 27 | 92454 | Ferrari Steel Nut 8mm - 92454 | $29.52 | Available, ships in 3-6 days |
| 28 | 147631 | Ferrari Copper Exhaust Gasket - 147631 | $17.33 | In stock |
| 28 | 20276 | Ferrari Double Exhaust Manifold Gasket - 20276 | Superseded | Order 147631 instead |
| 29 | 147630 | Ferrari Copper Exhaust Gasket - 147630 | $29.99 | In stock |
| 29 | 20242 | Ferrari Single Exhaust Manifold Gasket - 20242 | Superseded | Order 147630 instead |
| 30 | 95880322 | Ferrari Bolt - 95880322 | Price on request | Contact us for price and availability |
| 31 | 104339 | Ferrari Exhaust Strap Spacer - 104339 | $7.80 | Available, ships in 3-6 days |
| 31 | 20181 | Ferrari Exhaust Strap Spacer - 20181 | Superseded | Order 104339 instead |
| 32 | 101497 | Ferrari Exhaust / Radiator Hanger Strap - 101497 | $16.23 | In stock |
| 32 | 20240 | Ferrari Exhaust Strap - 20240 | Superseded | Order 101497 instead |
| 35 | 102947 | Ferrari Vibration Dampening Support - 102947 | $8.31 | In stock |
| 35 | 20410 | Ferrari Mounting - 20410 | Superseded | Order 102947 instead |
| 10902821 | Ferrari Bolt - 10902821 | $0.17 | Available, ships in 3-6 days | |
| 102015 | Ferrari Exhaust Manifold Gasket - 102015 | Superseded | Order 147630 instead | |
| 102017 | Ferrari Exhaust Manifold Gasket - 102017 | Superseded | Order 147631 instead | |
| 147697 | Ferrari Exhaust Pipe Gasket - 147697 | $9.35 | In stock | |
| 106709 | Ferrari Gasket Exhaust - 106709 | Price on request | Contact us for price and availability | |
| 15896225 | Ferrari Nut - 15896225 | Superseded | Order 134041 instead | |
| 106850 | Ferrari Spring Washer 6mm - 106850 | Superseded | Order 127494 instead |
