Ferrari 365 GTB4 (Daytona) — Fuel Pump System (1972 Revision) (diagram 041)

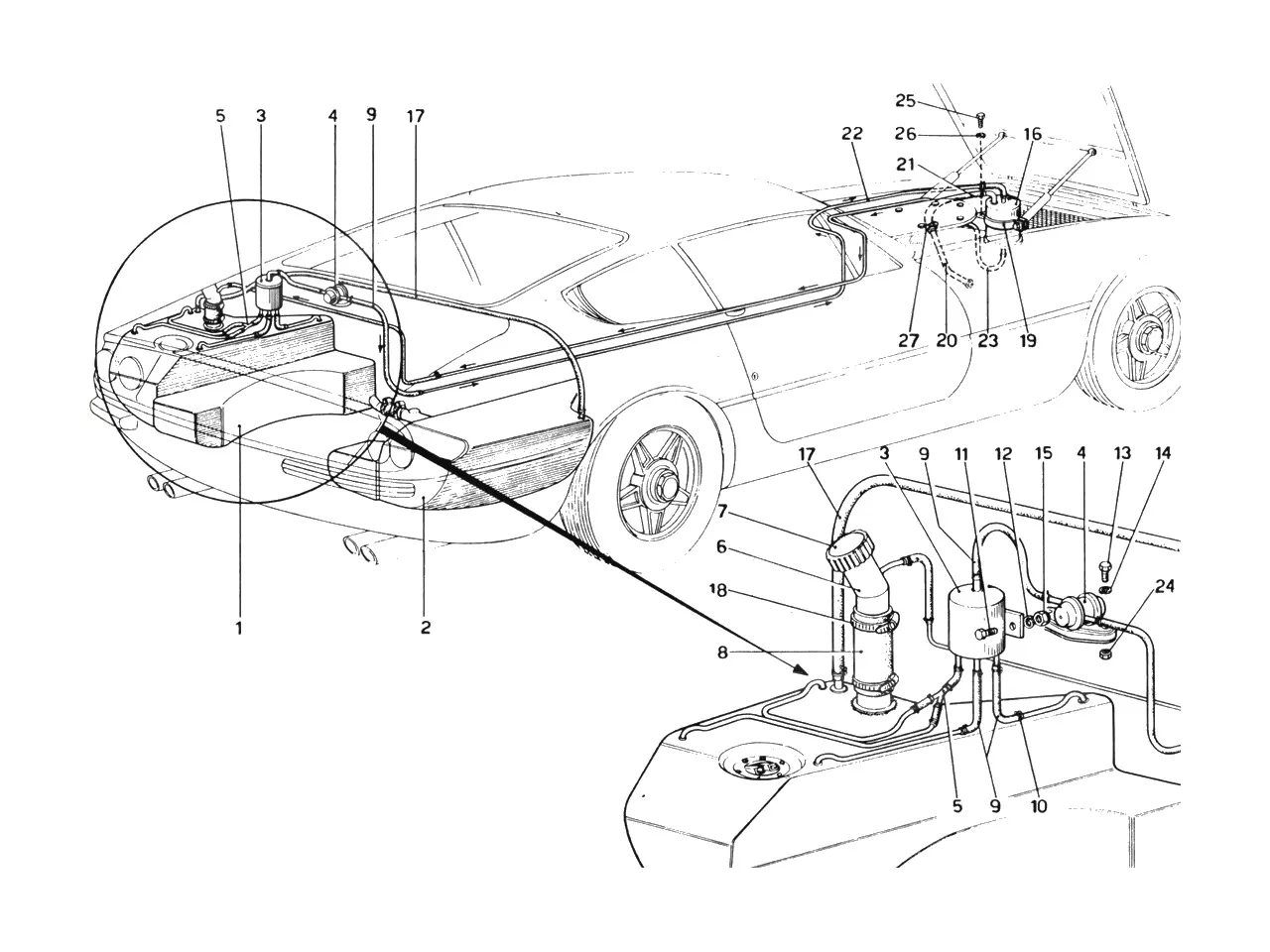

Exploded view of the fuel pump system (1972 revision) on the Ferrari 365 GTB4 (Daytona), with 29 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/041.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 820912 | Ferrari LH Fuel Tank - 820912 | Price on request | Contact us to order |
| 1 | 821430 | Ferrari LH Fuel Tank - 821430 | Price on request | Contact us to order |
| 1 | 821431 | Ferrari LH Fuel Tank - 821431 | Price on request | Contact us to order |
| 2 | 820911 | Ferrari RH Fuel Tank - 820911 | Price on request | Contact us to order |
| 2 | 821429 | Ferrari RH Fuel Tank - 821429 | $1,588.02 | Contact us to order |
| 2 | 821429/X | Ferrari RH Fuel Tank - 821429/X | $1,588.02 | Contact us to order |
| 3 | 820924 | Ferrari Disaireator - 820924 | $291.52 | Available, ships in 3-6 days |
| 4 | 820938 | Ferrari Valve Union - 820938 | Price on request | Contact us for price and availability |
| 5 | 820941 | Ferrari Y Piece - 820941 | Price on request | Contact us for price and availability |
| 6 | 820990 | Ferrari Fuel Filler Pipe Us - 820990 | Price on request | Contact us for price and availability |
| 7 | 4181665 | Ferrari Fuel Filler Cap - 4181665 | Price on request | Contact us for price and availability |
| 8 | 820991 | Ferrari Hose - 820991 | $14.47 | Available, ships in 3-6 days |
| 9 | 95607 | Ferrari Green Hose - 95607 | Price on request | Contact us for price and availability |
| 12 | 11195470 | Ferrari 5mm Wavy Washer - 11195470 | $0.21 | Available, ships in 3-6 days |
| 16 | 350369 | Ferrari Anti Vapour Tank - 350369 | Price on request | Contact us for price and availability |
| 17 | 821166 | Ferrari Breather Pipe - 821166 | Price on request | Contact us for price and availability |
| 18 | 95028 | Ferrari Hose Clip 51-70 - 95028 | Price on request | Contact us for price and availability |
| 19 | 350164 | Ferrari Filler Bracket - 350164 | Price on request | Contact us for price and availability |
| 20 | 350174 | Ferrari Tube - 350174 | Price on request | Contact us for price and availability |
| 21 | 350175 | Ferrari Hose - 350175 | $13.63 | Available, ships in 3-6 days |
| 22 | 350177 | Ferrari Tube - 350177 | Price on request | Contact us for price and availability |
| 23 | 350153 | Ferrari Tube - 350153 | Price on request | Contact us for price and availability |
| 26 | 127494 | Ferrari Lock Washer - 127494 | $0.50 | In stock |
| 26 | 10516470 | Ferrari Washer 6 R 4 - 10516470 | Superseded | Order 127494 instead |
| 101453 | Ferrari Filler Cap - 101453 | Price on request | Contact us for price and availability | |
| 113401 | Ferrari Fuel Filler Cap - 113401 | $93.50 | In stock | |
| 821426 | Ferrari Fuel Filler Cap - 821426 | Price on request | Contact us for price and availability | |
| 106850 | Ferrari Spring Washer 6mm - 106850 | Superseded | Order 127494 instead | |
| 103686 | Ferrari Valve Union Version USA - 103686 | Price on request | Contact us for price and availability |
