Ferrari 365 GTB4 (Daytona) — Exhaust System (1972 Revision) (diagram 042)

Exploded view of the exhaust system (1972 revision) on the Ferrari 365 GTB4 (Daytona), with 41 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

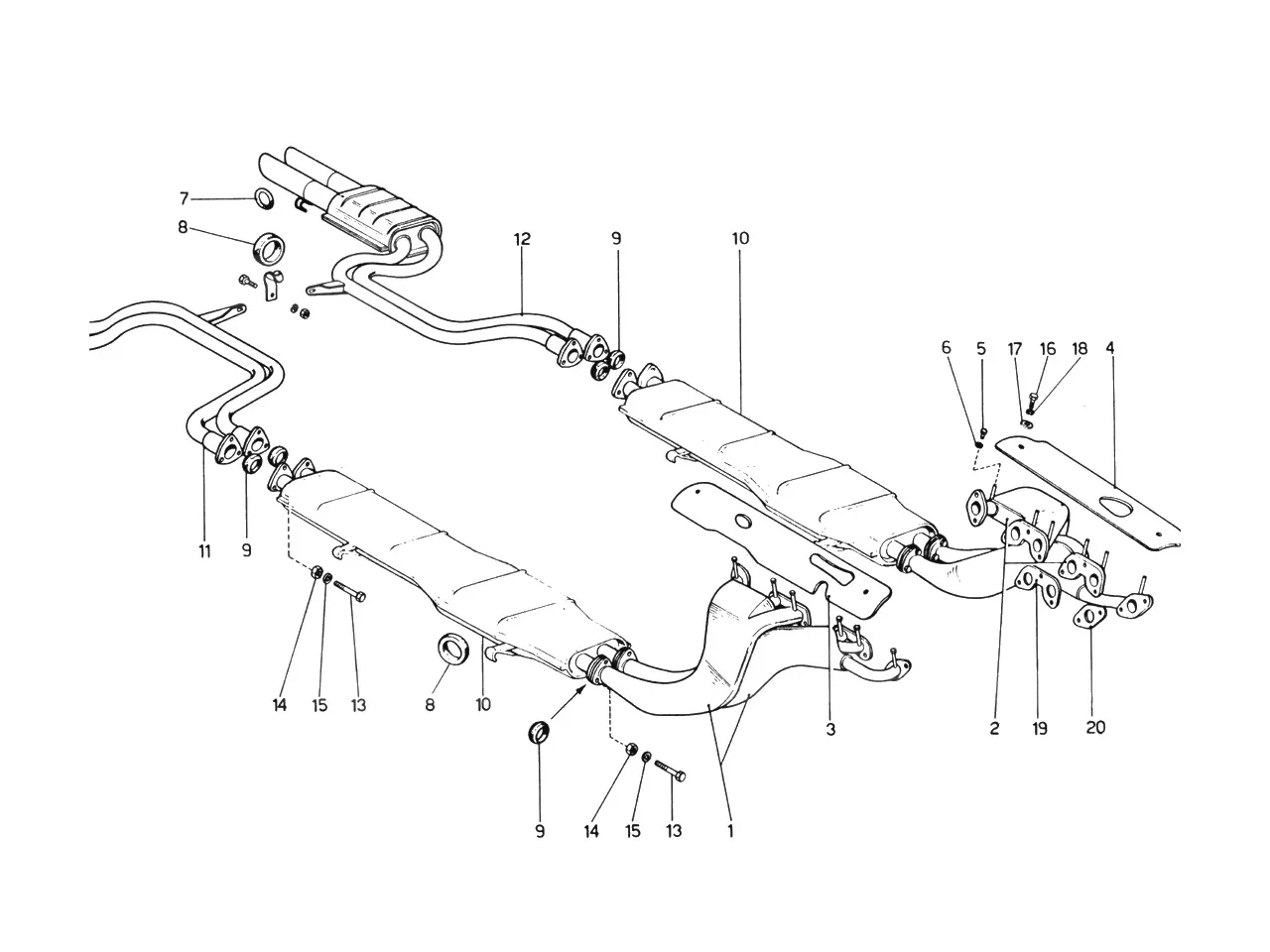

Ferrari 365 GTB4 (Daytona) Exhaust System (1972 Revision) exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1350151Ferrari Manifold - 350151Price on requestContact us for price and availability
1350151/AFerrari RH Front Manifold - 350151/APrice on requestSpecial order, ships in 7-14 days
1350151/BFerrari RH Rear Manifold - 350151/BPrice on requestSpecial order, ships in 7-14 days
2350152Ferrari Manifold - 350152Price on requestContact us for price and availability
2350152/AFerrari LH Front Manifold - 350152/APrice on requestSpecial order, ships in 7-14 days
2350152/BFerrari LH Rear Manifold - 350152/BPrice on requestSpecial order, ships in 7-14 days
3350154Ferrari Heat Shield RH - 350154Price on requestContact us for price and availability
4350155Ferrari Heat Shield LH - 350155Price on requestContact us for price and availability
520429Ferrari Bolt - 20429SupersededOrder 103748 instead
6103749Ferrari Exhaust System Washer - 103749$0.55In stock
620430Ferrari Gasket - 20430SupersededOrder 103749 instead
7103631Ferrari Exhaust Support Ring - 103631$9.90In stock
720457Ferrari Ring Exhaust Support - 20457SupersededOrder 103631 instead
8101999Ferrari Exhaust Muffler Donut Hanger - 101999$8.75In stock
820458Ferrari Support - 20458SupersededOrder 101999 instead
920459Ferrari Gasket Ring - 20459Price on requestContact us for price and availability
10350134Ferrari Main Silencer Usa - 350134Price on requestContact us for price and availability
11350135Ferrari 365Gtb4 Rhr Tail Pipe(Usaspec) - 350135Price on requestContact us for price and availability
12350136Ferrari 365Gtb4 Lhr Tail Pipe(Usaspec) - 350136Price on requestContact us for price and availability
14114748Ferrari Exhaust Lock Nut - 114748$7.85In stock
1495304Ferrari Nut - 95304SupersededOrder 114748 instead
1712643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
1794703Ferrari Washer - 94703SupersededOrder 12643701 instead
18127494Ferrari Lock Washer - 127494$0.50In stock
1810516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
19147631Ferrari Copper Exhaust Gasket - 147631$17.33In stock
1920276Ferrari Double Exhaust Manifold Gasket - 20276SupersededOrder 147631 instead
20147630Ferrari Copper Exhaust Gasket - 147630$29.99In stock
2020242Ferrari Single Exhaust Manifold Gasket - 20242SupersededOrder 147630 instead
103748Ferrari Brass Bolt - 103748$22.56Available, ships in 3-6 days
100115Ferrari Brass Exhaust Nut - 100115SupersededOrder 114748 instead
124525Ferrari Brass Exhaust Nut - 124525SupersededOrder 114748 instead
105938Ferrari Brass Nut - 105938SupersededOrder 114748 instead
102015Ferrari Exhaust Manifold Gasket - 102015SupersededOrder 147630 instead
102017Ferrari Exhaust Manifold Gasket - 102017SupersededOrder 147631 instead
146698Ferrari Exhaust Pipe Donut Gasket - 146698$24.20In stock
103377Ferrari Exhaust Seal - 103377$28.38Contact us for price and availability
108272Ferrari Lock Nut - 108272SupersededOrder 114748 instead
4155314Ferrari Nut - 4155314SupersededOrder 114748 instead
9162124Ferrari Nut - 9162124SupersededOrder 114748 instead
106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
