Ferrari 365 GTB4 (Daytona) — Air Filter (1972 Revision) (diagram 043)

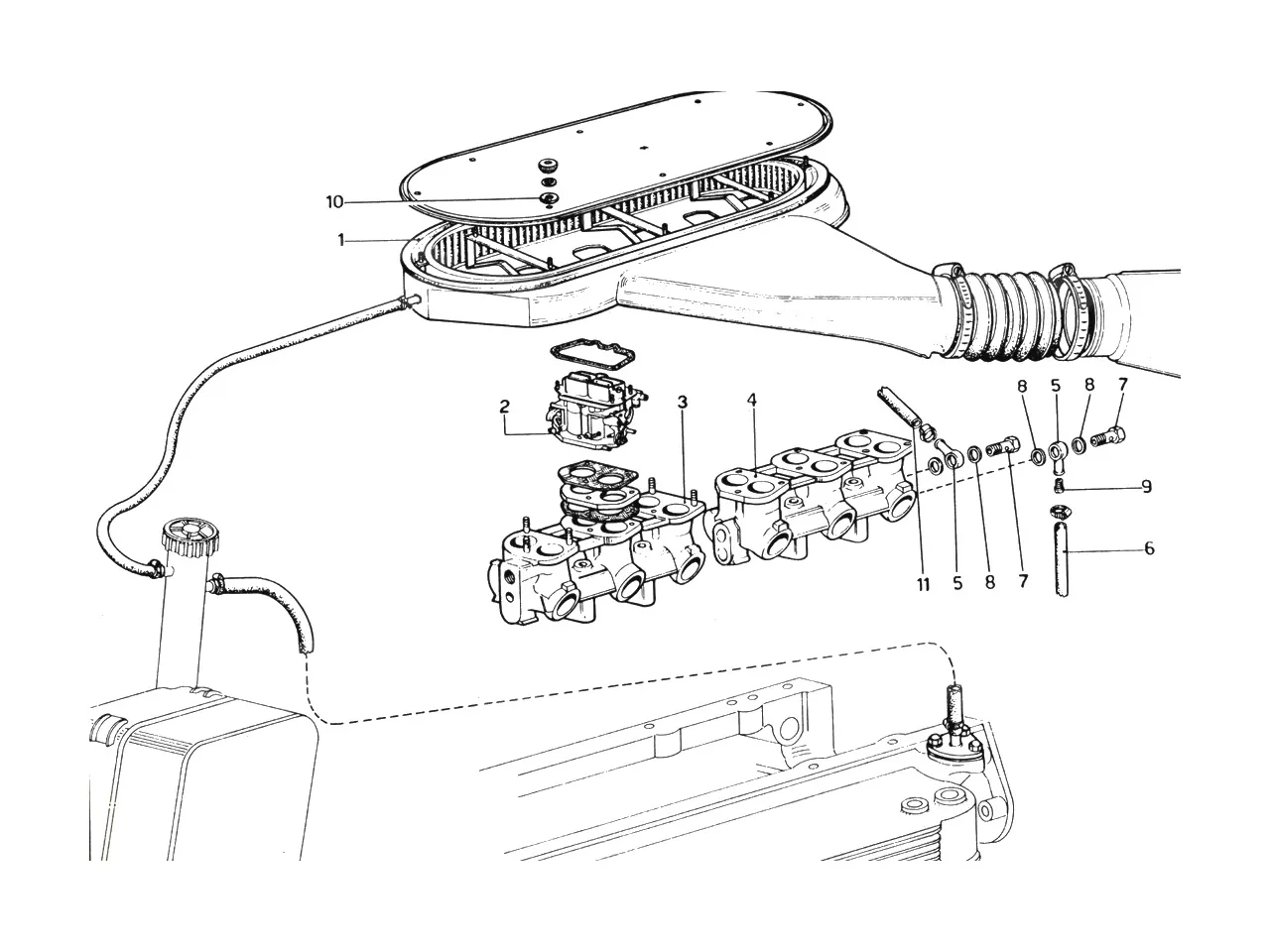

Exploded view of the air filter (1972 revision) on the Ferrari 365 GTB4 (Daytona), with 11 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/043.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 9181505 | Ferrari Air Filter Box Us Spec - 9181505 | Price on request | Contact us for price and availability |
| 2 | 350357 | Ferrari Carburetor - 350357 | Price on request | Contact us for price and availability |
| 3 | 9181420 | Ferrari Manifold - 9181420 | Price on request | Contact us for price and availability |
| 4 | 9181419 | Ferrari Manifold - 9181419 | Price on request | Contact us for price and availability |
| 5 | 9181421 | Ferrari Union - 9181421 | $28.35 | Available, ships in 3-6 days |
| 6 | 350131 | Ferrari Pipe - 350131 | Price on request | Contact us for price and availability |
| 7 | 94905 | Ferrari Banjo Bolt - 94905 | Price on request | Contact us for price and availability |
| 9 | 21094 | Ferrari Screw - 21094 | Price on request | Contact us for price and availability |
| 10 | 104549 | Ferrari 308/512 BB Gasket - 104549 | $4.93 | In stock |
| 10 | 9181506 | Ferrari Washer - 9181506 | Superseded | Order 104549 instead |
| 11 | 350153 | Ferrari Tube - 350153 | Price on request | Contact us for price and availability |
