Ferrari 365 GTB4 (Daytona) — Ignition System (1972 Revision) (diagram 045)

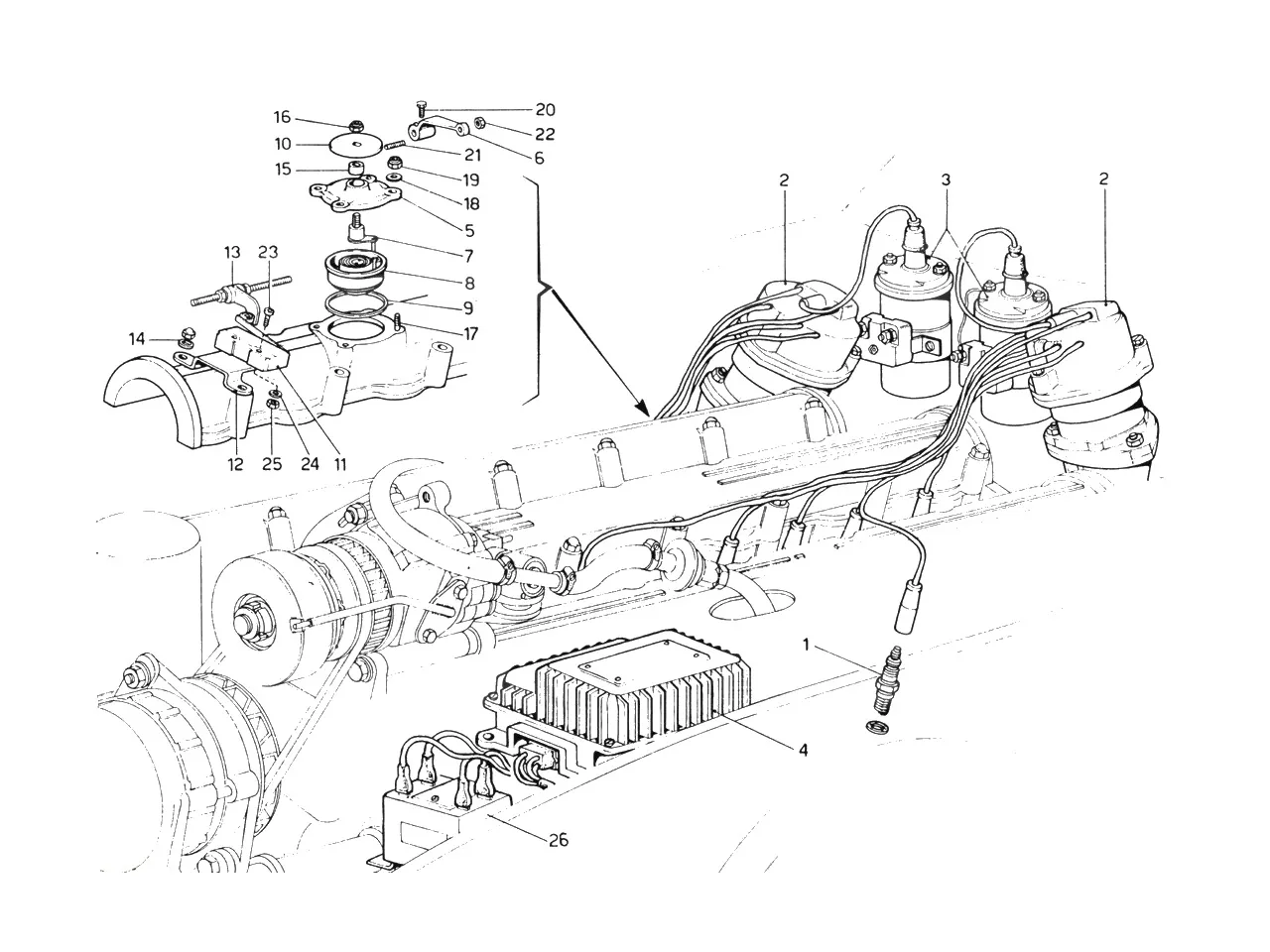

Exploded view of the ignition system (1972 revision) on the Ferrari 365 GTB4 (Daytona), with 24 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/045.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 100604 | Ferrari Spark Plug - 100604 | $7.42 | In stock |
| 2 | 350334 | Ferrari Distributor - 350334 | Price on request | Contact us for price and availability |
| 3 | 29334 | Ferrari Coil - 29334 | Price on request | Contact us for price and availability |
| 3 | 29313 | Ferrari Coil - 29313 | Price on request | Contact us for price and availability |
| 4 | 29315 | Ferrari Dinoplex - 29315 | Price on request | Contact us for price and availability |
| 4 | 350143 | Ferrari Dinoplex - 350143 | Price on request | Contact us for price and availability |
| 5 | 350085 | Ferrari Plate - 350085 | Superseded | Order 100577 instead |
| 5 | 100577 | Ferrari Plate - 100577 | $160.19 | Available, ships in 3-6 days |
| 6 | 350082 | Ferrari Slow Running Lever - 350082 | Price on request | Contact us for price and availability |
| 7 | 350084 | Ferrari Pin - 350084 | Price on request | Contact us for price and availability |
| 8 | 350333 | Ferrari Idler Device - 350333 | Price on request | Contact us for price and availability |
| 9 | 350088 | Ferrari Gasket - 350088 | Superseded | Order 147625 instead |
| 9 | 147625 | Ferrari Gasket - 147625 | $10.18 | Available, ships in 3-6 days |
| 10 | 350081 | Ferrari Adj Cam - 350081 | Price on request | Contact us for price and availability |
| 11 | 350138 | Ferrari Microswitch - 350138 | $216.30 | Special order, ships in 7-14 days |
| 12 | 350139 | Ferrari Bracket - 350139 | Price on request | Contact us for price and availability |
| 13 | 350141 | Ferrari Microswitch Lever - 350141 | Price on request | Contact us for price and availability |
| 21 | 95425 | Ferrari Key - 95425 | Price on request | Contact us for price and availability |
| 26 | 350212 | Ferrari Control - 350212 | $272.22 | Available, ships in 3-6 days |
| 26 | 350335 | Ferrari Hop Device - 350335 | $142.04 | Available, ships in 3-6 days |
| 26 | 350212/U | Ferrari Control - 350212/U | $270.61 | Available, ships in 3-6 days |
| 100591 | Ferrari Coil - 100591 | Price on request | Contact us for price and availability | |
| 100590 | Ferrari Distributor Gt4 2+2 - 100590 | Price on request | Contact us for price and availability | |
| 100575 | Ferrari Idler Device - 100575 | $747.60 | Special order, ships in 7-14 days |
