Ferrari 365 GTB4 (Daytona) — Chassis Components (diagram 201)

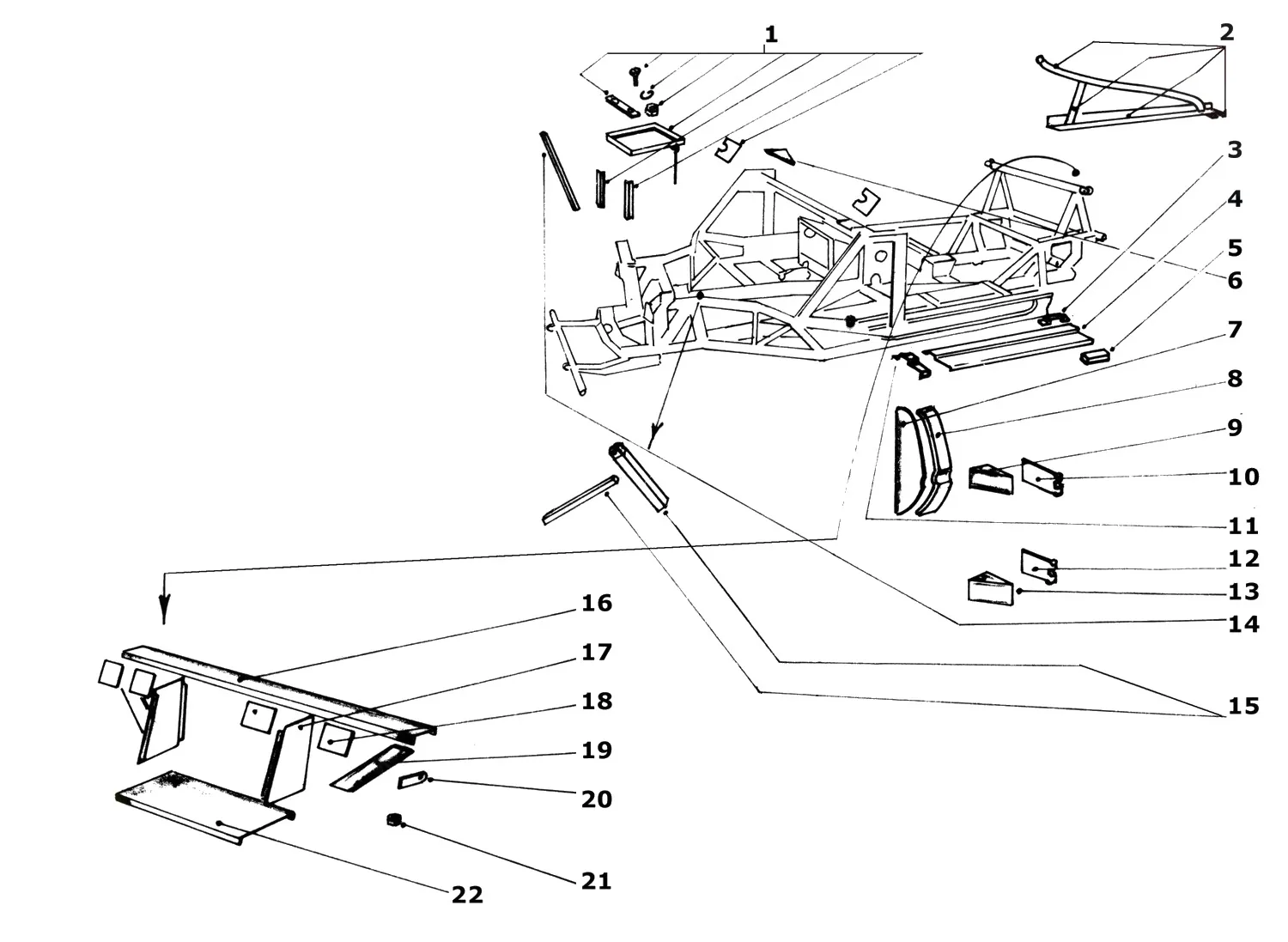

Exploded view of the chassis components on the Ferrari 365 GTB4 (Daytona), with 44 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/201.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 30120604 | Ferrari Battery Holder Complete - 30120604 | Price on request | Contact us for price and availability |
| 1 | 0300227 | Ferrari Battery Bracket - 0300227 | Price on request | Contact us for price and availability |
| 1 | 10353411 | Ferrari Screw 6x12 - 10353411 | Price on request | Contact us for price and availability |
| 1 | 11195900 | Ferrari Washer - 11195900 | Price on request | Contact us for price and availability |
| 1 | 10725300 | Ferrari Nut 6x1 - 10725300 | Price on request | Contact us for price and availability |
| 1 | 400527 | Ferrari Battery Clamp - 400527 | Price on request | Contact us for price and availability |
| 1 | 0300226 | Ferrari Battery Bracket - 0300226 | Price on request | Contact us for price and availability |
| 1 | 0300225 | Ferrari Battery Bracket - 0300225 | Price on request | Contact us for price and availability |
| 1 | 30008600 | Ferrari Battery Bracket - 30008600 | Price on request | Contact us for price and availability |
| 2 | 0300885 | Ferrari Tank Strap Kit - 0300885 | Price on request | Contact us for price and availability |
| 2 | 0300417 | Ferrari Tank Strap - 0300417 | Price on request | Contact us for price and availability |
| 2 | 0300420 | Ferrari Tank Strap - 0300420 | Price on request | Contact us for price and availability |
| 2 | 0300418 | Ferrari Tank Strap - 0300418 | Price on request | Contact us for price and availability |
| 2 | 0300419 | Ferrari Tank Strap - 0300419 | Price on request | Contact us for price and availability |
| 3 | 20002200 | Ferrari Seat Bracket - 20002200 | Price on request | Contact us for price and availability |
| 4 | 30002802 | Ferrari RH Sill Lining - 30002802 | $146.11 | Available, ships in 3-6 days |
| 4 | 30002901 | Ferrari LH Sill Lining - 30002901 | $146.11 | Available, ships in 3-6 days |
| 5 | 30006300 | Ferrari Floor Panel Spacer - 30006300 | Price on request | Contact us for price and availability |
| 6 | 0301176 | Ferrari Screen Aperature Reinforcement Plate - 0301176 | Price on request | Contact us for price and availability |
| 7 | 30155204 | Ferrari RH Hinge Box - 30155204 | Price on request | Contact us for price and availability |
| 7 | 30155303 | Ferrari LH Hinge Box - 30155303 | $246.00 | Available, ships in 3-6 days |
| 8 | 30003000 | Ferrari Door Aperture Reinforcement Plate - 30003000 | Price on request | Contact us for price and availability |
| 8 | 30003100 | Ferrari Door Aperture Reinforcement Plate - 30003100 | Price on request | Contact us for price and availability |
| 9 | 30034800 | Ferrari Upper Door Hinge Reinforcement Plate - 30034800 | Price on request | Contact us for price and availability |
| 9 | 30034900 | Ferrari Upper Door Hinge Reinforcement Plate - 30034900 | Price on request | Contact us for price and availability |
| 10 | 30011605 | Ferrari RH Upper Door Hinge - 30011605 | $165.96 | Available, ships in 3-6 days |
| 10 | 30011704 | Ferrari LH Upper Door Hinge - 30011704 | Price on request | Contact us for price and availability |
| 11 | 0301191 | Ferrari Seat Reinforcement Plate - 0301191 | Price on request | Contact us for price and availability |
| 11 | 0301192 | Ferrari Seat Reinforcement Plate - 0301192 | Price on request | Contact us for price and availability |
| 12 | 30034607 | Ferrari RH Door Hinge - 30034607 | Price on request | Contact us for price and availability |
| 12 | 30034706 | Ferrari LH Door Hinge - 30034706 | Price on request | Contact us for price and availability |
| 13 | 0300350 | Ferrari Lower Door Hinge Reinforcement Plate - 0300350 | Price on request | Contact us for price and availability |
| 14 | 30006100 | Ferrari Battery Reinforcement Plate - 30006100 | Price on request | Contact us for price and availability |
| 15 | 0300430 | Ferrari Bonnet Strut Support Plate - 0300430 | Price on request | Contact us for price and availability |
| 15 | 0300431 | Ferrari Bonnet Strut Support Plate - 0300431 | Price on request | Contact us for price and availability |
| 15 | 30120500 | Ferrari Bonnet Strut Support Plate - 30120500 | Price on request | Contact us for price and availability |
| 16 | 30007207 | Ferrari Crossmember - 30007207 | Price on request | Contact us for price and availability |
| 17 | 30007603 | Ferrari RH Insert - 30007603 | $60.28 | Available, ships in 3-6 days |
| 17 | 30007702 | Ferrari LH Insert - 30007702 | $60.28 | Available, ships in 3-6 days |
| 18 | 30007300 | Ferrari Rear Wheel Arch Reinforcement Plate - 30007300 | Price on request | Contact us for price and availability |
| 19 | 30007500 | Ferrari Rear Wheel Arch Reinforcement Plate - 30007500 | Price on request | Contact us for price and availability |
| 20 | 30007100 | Ferrari Fuel Tank Reinforcement Plate - 30007100 | Price on request | Contact us for price and availability |
| 21 | 30007400 | Ferrari Nut 7/16 - 30007400 | Price on request | Contact us for price and availability |
| 22 | 30007801 | Ferrari Crossmember - 30007801 | $44.45 | Available, ships in 3-6 days |
