Ferrari 365 GTB4 (Daytona) — Fibreglass Panels (diagram 203)

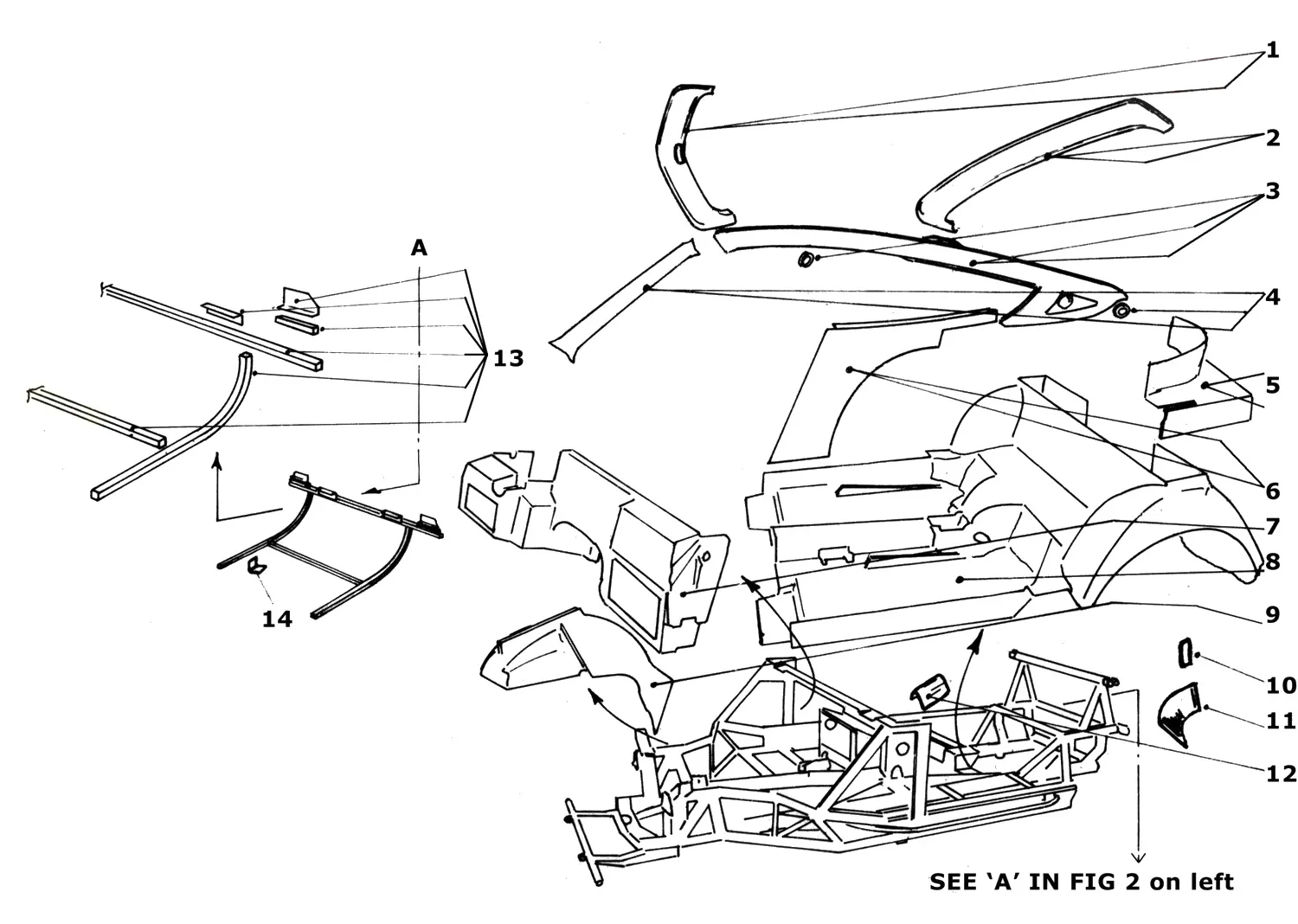

Exploded view of the fibreglass panels on the Ferrari 365 GTB4 (Daytona), with 38 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/203.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 30011407 | Ferrari Inside Moulding - 30011407 | Price on request | Contact us for price and availability |
| 1 | 30076509 | Ferrari Moulding Lining - 30076509 | $39.20 | Available, ships in 3-6 days |
| 2 | 0300115 | Ferrari Rear Crossmember - 0300115 | Price on request | Contact us for price and availability |
| 2 | 0300766 | Ferrari Rear Crossmember Cover - 0300766 | Price on request | Contact us for price and availability |
| 3 | 0300816 | Ferrari Bush For Roof Handle - 0300816 | Price on request | Contact us for price and availability |
| 3 | 30011209 | Ferrari RH Side Beam - 30011209 | Price on request | Contact us for price and availability |
| 3 | 30011308 | Ferrari LH Side Beam - 30011308 | $269.69 | Special order, ships in 7-14 days |
| 3 | 30076707 | Ferrari RH Panel - 30076707 | $39.41 | Special order, ships in 7-14 days |
| 3 | 30076806 | Ferrari LH Panel - 30076806 | Price on request | Contact us for price and availability |
| 4 | 30075006 | Ferrari RH Frame Work - 30075006 | $207.84 | Special order, ships in 7-14 days |
| 4 | 30075105 | Ferrari LH Frame Work - 30075105 | $218.25 | Available, ships in 3-6 days |
| 4 | 30076905 | Ferrari RH Frame Lining - 30076905 | $25.59 | Available, ships in 3-6 days |
| 4 | 30077002 | Ferrari LH Frame Lining - 30077002 | $25.59 | Available, ships in 3-6 days |
| 5 | 30074306 | Ferrari RH Tank Cover - 30074306 | Price on request | Contact us for price and availability |
| 5 | 30074405 | Ferrari LH Tank Cover - 30074405 | Price on request | Contact us for price and availability |
| 5 | 0300771 | Ferrari RH Cover For Fuel Tank - 0300771 | Price on request | Contact us for price and availability |
| 5 | 0300772 | Ferrari LH Cover For Fuel Tank - 0300772 | Price on request | Contact us for price and availability |
| 6 | 30074801 | Ferrari RH Interior Wheel Arch Panel - 30074801 | $187.97 | Available, ships in 3-6 days |
| 6 | 30074900 | Ferrari LH Interior Wheel Arch Panel - 30074900 | Price on request | Contact us for price and availability |
| 6 | 30077309 | Ferrari RH Leather Panel - 30077309 | Price on request | Contact us for price and availability |
| 6 | 30077408 | Ferrari LH Leather Panel - 30077408 | $44.72 | Available, ships in 3-6 days |
| 7 | 30008502 | Ferrari Flame Shield Complete - 30008502 | Price on request | Contact us for price and availability |
| 8 | 30006209 | Ferrari Floor Complete - 30006209 | Price on request | Contact us for price and availability |
| 9 | 30005300 | Ferrari RH Front Wheel Arch - 30005300 | $685.19 | Available, ships in 3-6 days |
| 9 | 30005409 | Ferrari LH Front Wheel Arch - 30005409 | $685.19 | Available, ships in 3-6 days |
| 10 | 0300409 | Ferrari Bracket For Fuel Pump Shield - 0300409 | Price on request | Contact us for price and availability |
| 11 | 0300408 | Ferrari Fuel Pump Shield - 0300408 | Price on request | Contact us for price and availability |
| 12 | 0300538 | Ferrari Box Hinged Bracket - 0300538 | Price on request | Contact us for price and availability |
| 13 | 30006407 | Ferrari Boot Space Frame Complete - 30006407 | $630.22 | Available, ships in 3-6 days |
| 13 | 0300065 | Ferrari Boot Space Frame Bracket - 0300065 | Price on request | Contact us for price and availability |
| 13 | 0300067 | Ferrari Boot Space Frame Bracket - 0300067 | Price on request | Contact us for price and availability |
| 13 | 0300066 | Ferrari Boot Space Frame Spacer - 0300066 | Price on request | Contact us for price and availability |
| 13 | 0300068 | Ferrari Boot Space Frame Bracket - 0300068 | Price on request | Contact us for price and availability |
| 13 | 0300069 | Ferrari Boot Space Frame Bracket - 0300069 | Price on request | Contact us for price and availability |
| 13 | 30007000 | Ferrari Boot Space Frame Bracket - 30007000 | Price on request | Contact us for price and availability |
| 14 | 0301193 | Ferrari Bracket For Rear Space Frame - 0301193 | Price on request | Contact us for price and availability |
| - | 30253108 | Ferrari LH Rear Wheel Arch F/G Panel - 30253108 | $1,007.74 | Available, ships in 3-6 days |
| - | 30253009 | Ferrari RH Rear Wheel Arch F/G Panel - 30253009 | $1,007.74 | Available, ships in 3-6 days |
