Ferrari 365 GTB4 (Daytona) — Radiator Grille (diagram 205A)

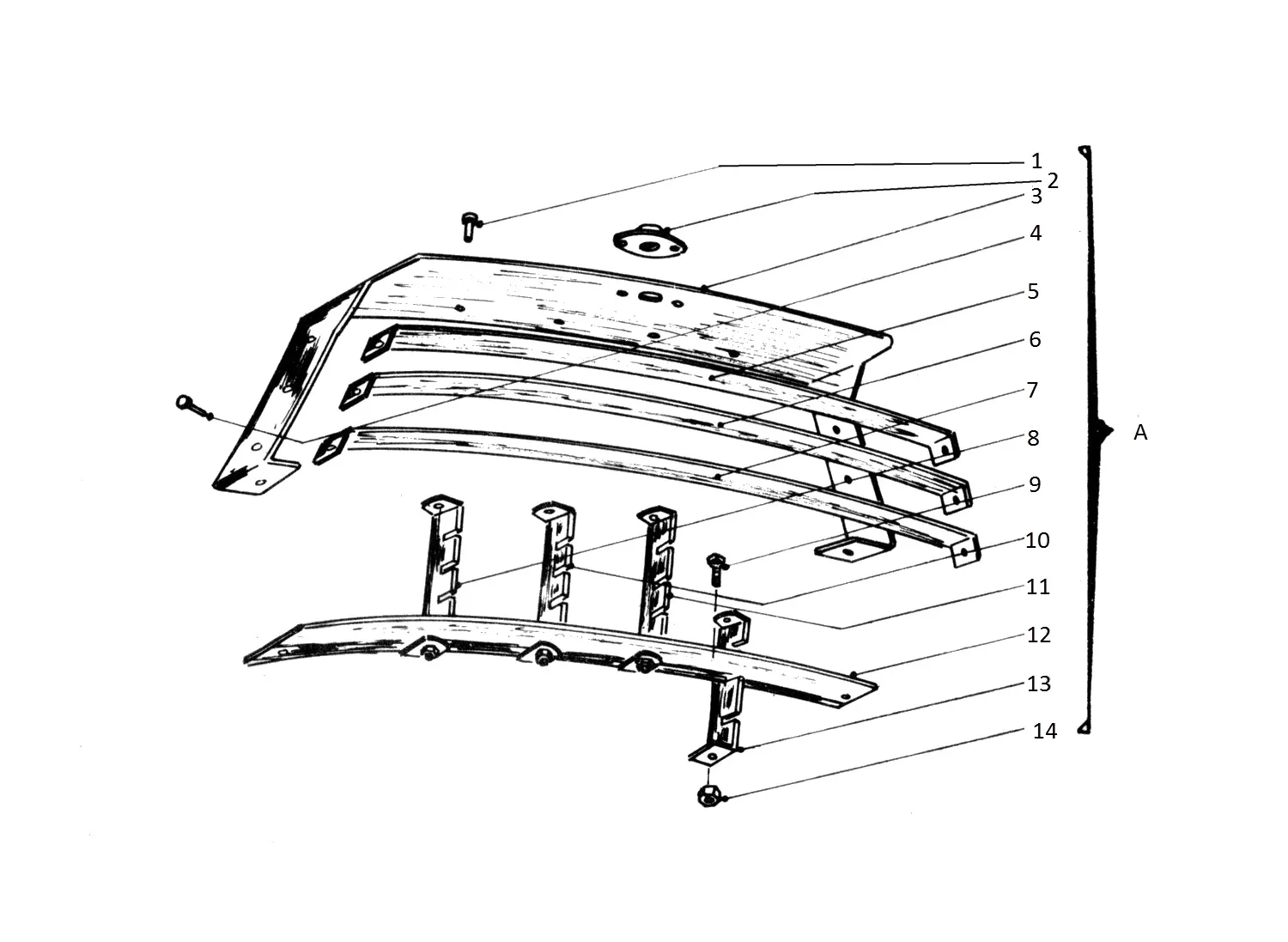

Exploded view of the radiator grille on the Ferrari 365 GTB4 (Daytona), with 13 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/205A.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| A | 30057301 | Ferrari Radiator Grille - 30057301 | $3,649.70 | Special order, ships in 7-14 days |
| A | 30253900 | Ferrari Radiator Grille - 30253900 | $979.00 | Special order, ships in 7-14 days |
| 2 | 0300586 | Ferrari Plate - 0300586 | Price on request | Contact us for price and availability |
| 3 | 0300584 | Ferrari Upper Outer Support - 0300584 | Price on request | Contact us for price and availability |
| 5 | 0300581 | Ferrari Upper Horizontal Flap - 0300581 | Price on request | Contact us for price and availability |
| 6 | 0300582 | Ferrari Central Horizontal Flap - 0300582 | Price on request | Contact us for price and availability |
| 7 | 0300583 | Ferrari Lower Horizontal Flap - 0300583 | Price on request | Contact us for price and availability |
| 8 | 0300580 | Ferrari Vertical Flap - 0300580 | Price on request | Contact us for price and availability |
| 9 | 0300587 | Ferrari Screw - 0300587 | Price on request | Contact us for price and availability |
| 12 | 0300585 | Ferrari Lower Outer Support - 0300585 | Price on request | Contact us for price and availability |
| 14 | 30001903 | Ferrari Bracket - 30001903 | $33.89 | Available, ships in 3-6 days |
| 14 | 0300588 | Ferrari Nut - 0300588 | Price on request | Contact us for price and availability |
| - | 30056204 | Ferrari Front Nose Spaceframe - 30056204 | $33.89 | Available, ships in 3-6 days |
