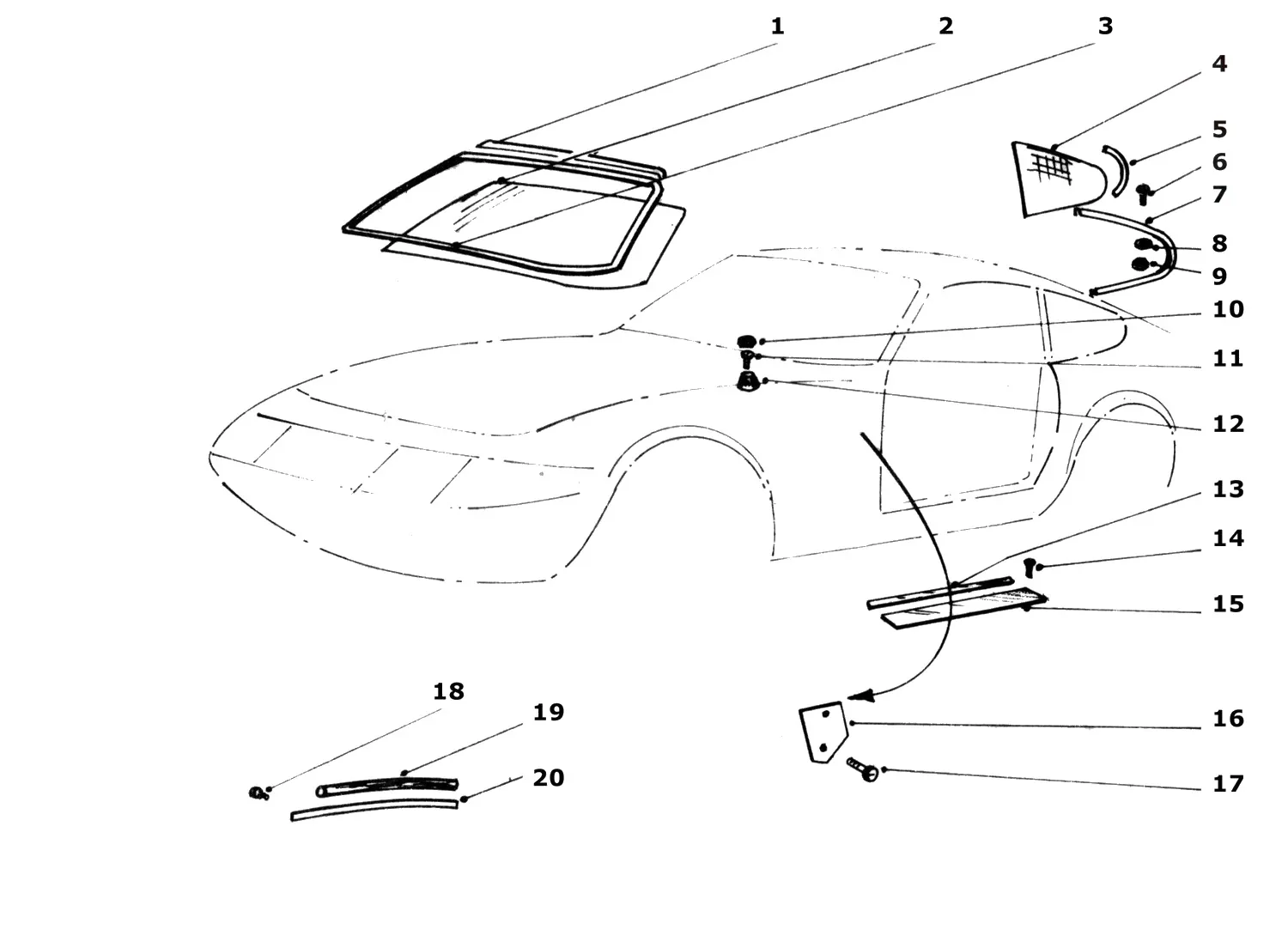

Ferrari 365 GTB4 (Daytona) — Window Glass And Seals (diagram 214A)
Exploded view of the window glass and seals on the Ferrari 365 GTB4 (Daytona), with 37 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/214A.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 30083208 | Ferrari Front Screen Rubber - 30083208 | Price on request | Contact us for price and availability |
| 2 | 30248306 | Ferrari Front Windscreen Clear - 30248306 | $4,007.22 | Contact us to order |
| 3 | 30009609 | Ferrari Front Windscreen Moulding - 30009609 | Price on request | Contact us for price and availability |
| 4 | 30248405 | Ferrari RH Rear Qtr Window - 30248405 | Price on request | Contact us to order |
| 4 | 30248504 | Ferrari LH Rear Qtr Window - 30248504 | $1,778.03 | Contact us to order |
| 5 | 30010102 | Ferrari Rear Qtr Light Gasket - 30010102 | Price on request | Contact us for price and availability |
| 6 | 0300863 | Ferrari Screw M4 X 0.7 - 0300863 | Price on request | Contact us for price and availability |
| 7 | 30012603 | Ferrari RH Rear Frame - 30012603 | $434.37 | Available, ships in 3-6 days |
| 7 | 30012702 | Ferrari LH Rear Frame - 30012702 | $434.37 | Available, ships in 3-6 days |
| 8 | 13550011 | Ferrari Washer - 13550011 | Price on request | Contact us for price and availability |
| 9 | 10734011 | Ferrari Nut M4 X 0.7 - 10734011 | Price on request | Contact us for price and availability |
| 10 | 12612242 | Ferrari Cup Washer (Chrome) - 12612242 | Price on request | Contact us for price and availability |
| 11 | 15619306 | Ferrari Screw - 15619306 | Price on request | Contact us for price and availability |
| 12 | 20047106 | Ferrari Hood/Trunk Bump Stop Rubber - 20047106 | $16.50 | In stock |
| 13 | 30079008 | Ferrari RH Moulding - 30079008 | $231.65 | Special order, ships in 7-14 days |
| 13 | 30079107 | Ferrari LH Moulding - 30079107 | $243.23 | Available, ships in 3-6 days |
| 14 | 15611111 | Ferrari Screw - 15611111 | Price on request | Contact us for price and availability |
| 15 | 30078802 | Ferrari RH Sill Panel - 30078802 | Price on request | Contact us for price and availability |
| 15 | 30078901 | Ferrari LH Sill Panel - 30078901 | Price on request | Contact us for price and availability |
| 16 | 0300549 | Ferrari Protection Plate - 0300549 | Price on request | Contact us for price and availability |
| 17 | 0300733 | Ferrari Screw - 0300733 | Price on request | Contact us for price and availability |
| 19 | 0300799 | Ferrari Passenger Grab Handle Rubber - 0300799 | Price on request | Contact us for price and availability |
| 20 | 0300780 | Ferrari Passenger Grab Handle - 0300780 | Price on request | Contact us for price and availability |
| 20 | 401342/A | Ferrari Wiper Arm - 401342/A | $111.38 | Available, ships in 3-6 days |
| 20 | MC3800/9 | Ferrari Wiper Blade 15" Speedblade - MC3800/9 | $117.34 | Available, ships in 3-6 days |
| 239-28-194-00 | Ferrari Pad - 239-28-194-00 | Superseded | Order 20047106 instead | |
| - | 401342 | Ferrari 365GTB4 LH Wiper Arm - 401342 | $111.38 | Available, ships in 3-6 days |
| - | 401343 | Ferrari 365GTB4 RH Wiper Arm - 401343 | Price on request | Contact us for price and availability |
| - | 251-84-250-01 | Ferrari Black Wiper Arm Adjustable 16" - 251-84-250-01 | Price on request | Contact us for price and availability |
| - | 30005508 | Ferrari Head Lamp Perspex Cover - 30005508 | $667.33 | Available, ships in 3-6 days |
| - | 30072003 | Ferrari Lower Perspex Cover Surround - 30072003 | $728.24 | Special order, ships in 7-14 days |
| - | 0300245 | Ferrari Passenger Grab Handle Complete - 0300245 | Price on request | Contact us for price and availability |
| - | MC3478/1 | Ferrari Titanfast 351 Black Beading *Per Metre* - MC3478/1 | $19.15 | Available, ships in 3-6 days |
| - | 30071906 | Ferrari Upper Perspex Cover Surround - 30071906 | $704.20 | Available, ships in 3-6 days |
| - | 251-84-280-00 | Ferrari Wiper Blade 14" - 251-84-280-00 | Price on request | Contact us for price and availability |
| - | 251-84-281-01 | Ferrari Wiper Blade 15" - 251-84-281-01 | $115.77 | Available, ships in 3-6 days |
| - | 251-84-281-02 | Ferrari Wiper Blade 16" - 251-84-281-02 | Price on request | Contact us for price and availability |
