Ferrari 365 GTB4 (Daytona) — Seats Components (diagram 219)

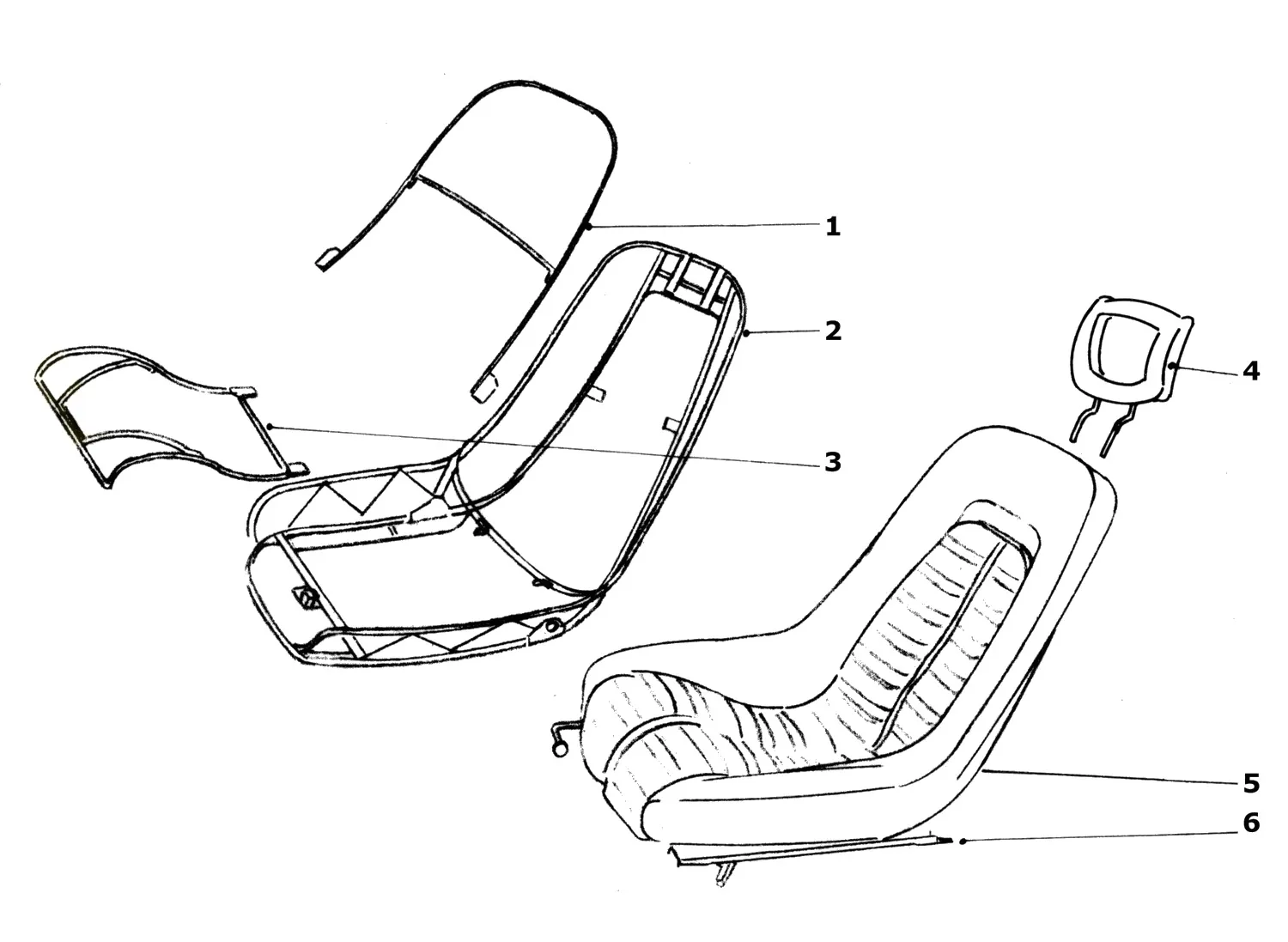

Exploded view of the seats components on the Ferrari 365 GTB4 (Daytona), with 6 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/219.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 0300503 | Ferrari ADJUSTABLE SEAT BACK - 0300503 | Price on request | Contact us to order |
| 2 | 0300506 | Ferrari SEAT COMPL. - 0300506 | Price on request | Contact us to order |
| 3 | 0300502 | Ferrari ADJUSTABLE SEAT BASE - 0300502 | Price on request | Contact us for price and availability |
| 4 | 0300576 | Ferrari Headrest Complete - 0300576 | Price on request | Contact us for price and availability |
| - | 144-67-368-03 | Ferrari Head Rest Locking Clip - 144-67-368-03 | Price on request | Contact us for price and availability |
| - | 20058905 | Ferrari Headrest Plastic Insert - 20058905 | $106.39 | Available, ships in 3-6 days |
