Ferrari 365 GTB4 (Daytona) — Door Lock & Inner Handle (diagram 223A)

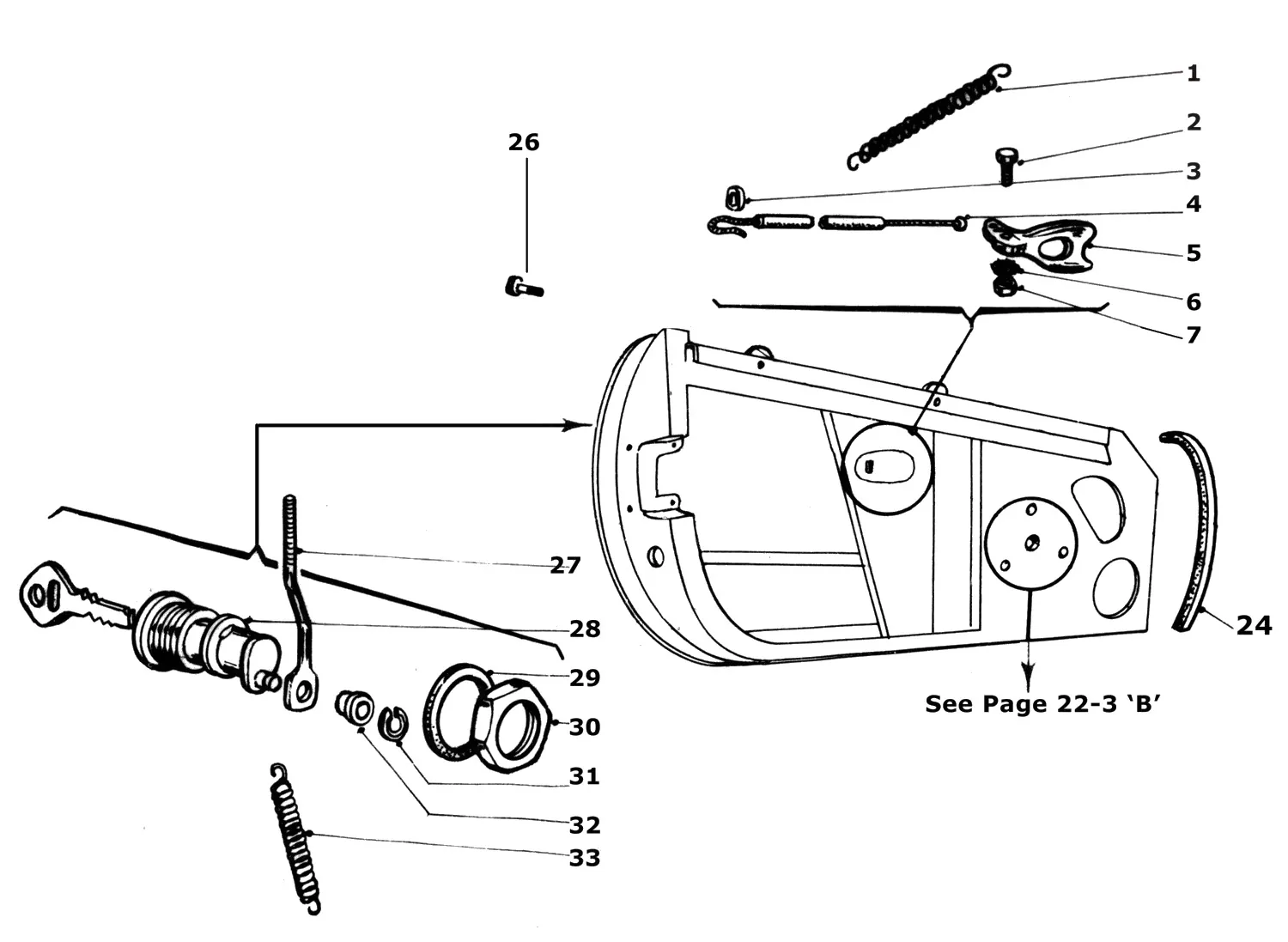

Exploded view of the door lock & inner handle on the Ferrari 365 GTB4 (Daytona), with 20 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/223A.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 30016505 | Ferrari Door Handle Spring - 30016505 | Price on request | Contact us for price and availability |
| 2 | 0200881 | Ferrari S rew M4 X 0.7 L 20 - 0200881 | Price on request | Contact us for price and availability |
| 3 | 0300166 | Ferrari BUSH - 0300166 | Price on request | Contact us for price and availability |
| 4 | 30016406 | Ferrari Door Handle Cable - 30016406 | $17.67 | Available, ships in 3-6 days |
| 5 | 30016307 | Ferrari Handle - 30016307 | Price on request | Contact us for price and availability |
| 24 | 30017206 | Ferrari Rubber Strip - 30017206 | Price on request | Contact us for price and availability |
| 26 | 0300666 | Ferrari SCREW M4 X 0.7 L 10 - 0300666 | Price on request | Contact us for price and availability |
| 27 | 20073300 | Ferrari 246GT/S Door Lock Rod - 20073300 | $167.77 | Available, ships in 3-6 days |
| 28 | 20035606 | Ferrari RH Exterior Door Lock - 20035606 | Price on request | Contact us for price and availability |
| 29 | 0200356 | Ferrari RING - 0200356 | Price on request | Contact us for price and availability |
| 30 | 20063202 | Ferrari Nut - 20063202 | $14.97 | Available, ships in 3-6 days |
| 31 | 11087676 | Ferrari Circlip - 11087676 | $0.27 | Available, ships in 3-6 days |
| 31 | 11087675 | Ferrari Circlip - 11087675 | Superseded | Order 11087676 instead |
| 32 | 20037305 | Ferrari Door Lock Plastic Bush - 20037305 | $18.46 | Available, ships in 3-6 days |
| 33 | 20036000 | Ferrari Spring - 20036000 | Price on request | Contact us for price and availability |
| 20261400 | Ferrari Door Handle (Interior) - 20261400 | Price on request | Contact us for price and availability | |
| 30165203 | Ferrari Door Handle Spring - 30165203 | Price on request | Contact us for price and availability | |
| 20035903 | Ferrari Door Lock Circlips - 20035903 | Superseded | Order 11087676 instead | |
| 20047601 | Ferrari Front Door Rubber - 20047601 | $16.27 | Available, ships in 3-6 days | |
| 50371608 | Ferrari Lock Set - 50371608 | $1,391.50 | Special order, ships in 7-14 days |
