Ferrari 365 GTB4 (Daytona) — Door Glass & Motor (diagram 223B)

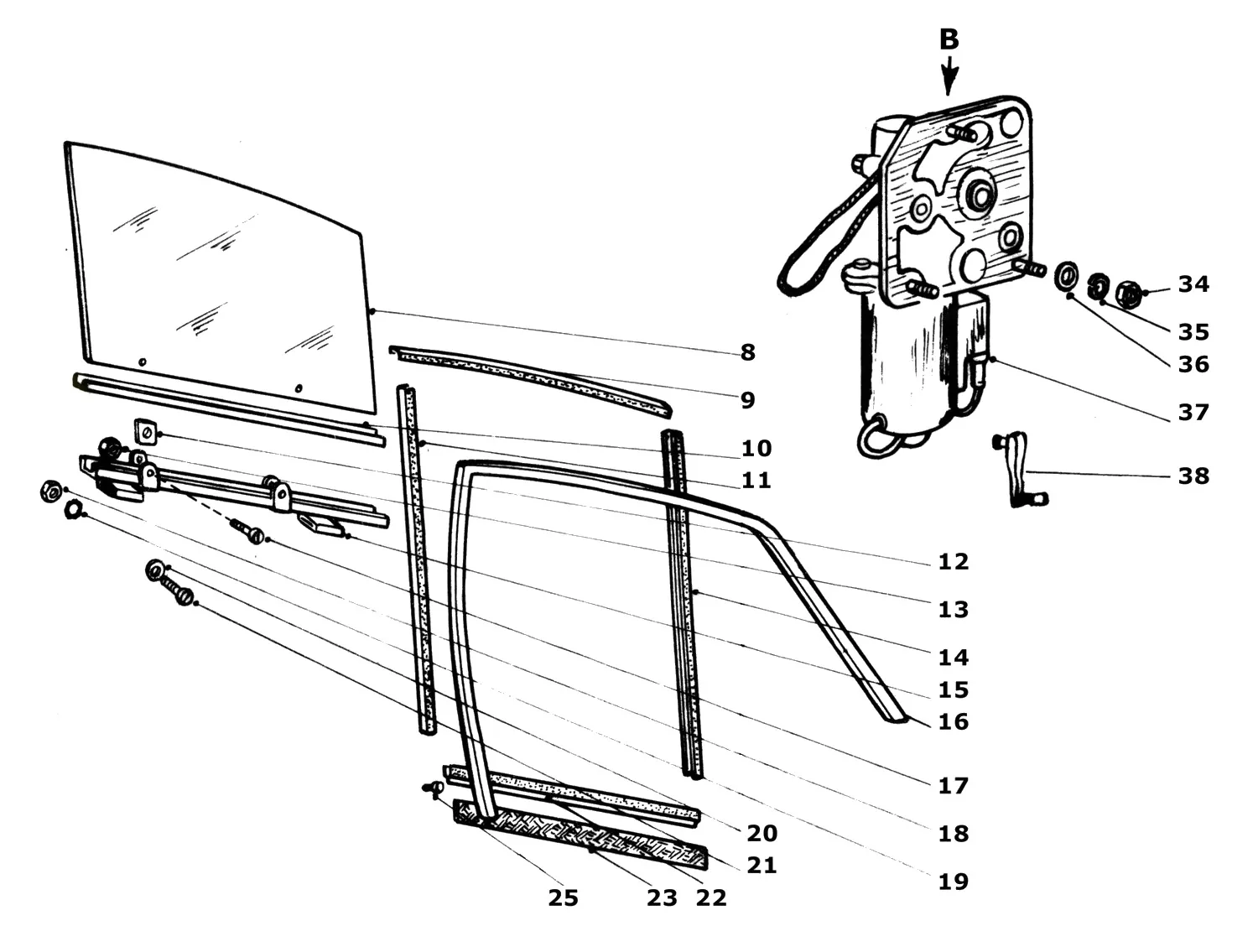

Exploded view of the door glass & motor on the Ferrari 365 GTB4 (Daytona), with 20 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/223B.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 8 | 30248801 | Ferrari RH Drop Glass (Clear) - 30248801 | $903.10 | Contact us to order |
| 8 | 30248900 | Ferrari LH Drop Glass (Clear) - 30248900 | $903.10 | Contact us to order |
| 8 | 30102800 | Ferrari RH Drop Glass Spyder (Clear) - 30102800 | Price on request | Contact us to order |
| 8 | 30102909 | Ferrari LH Drop Glass Spyder (Clear) - 30102909 | Price on request | Contact us to order |
| 10 | 20102802 | Ferrari Drop Glass Base Rubber - 20102802 | $65.49 | Available, ships in 3-6 days |
| 10 | 30017305 | Ferrari Window Gasket - 30017305 | $65.11 | Available, ships in 3-6 days |
| 12 | 20102700 | Ferrari Rubber Shims - 20102700 | Price on request | Contact us for price and availability |
| 15 | 30074603 | Ferrari RH Window Lift Support - 30074603 | $688.72 | Available, ships in 3-6 days |
| 15 | 30074702 | Ferrari LH Window Lift Support - 30074702 | Price on request | Contact us for price and availability |
| 15 | 30074603/A | Ferrari 365Gtb4 Window Lift Support RH - 30074603/A | $688.72 | Available, ships in 3-6 days |
| 16 | 30033807 | Ferrari RH Window Frame Complete - 30033807 | Price on request | Contact us for price and availability |
| 16 | 30033906 | Ferrari LH Window Frame Complete - 30033906 | Price on request | Contact us for price and availability |
| 17 | 0300345 | Ferrari Screw M5 X0.8 L 20 - 0300345 | Price on request | Contact us for price and availability |
| 21 | 0300660 | Ferrari Screw M6 X 1 L 30 - 0300660 | Price on request | Contact us for price and availability |
| 22 | 30017503 | Ferrari Gasket - 30017503 | $4.79 | Special order, ships in 7-14 days |
| 23 | 30017602 | Ferrari Gasket - 30017602 | Price on request | Contact us for price and availability |
| 37 | 30023600 | Ferrari RH Window Motor - 30023600 | Price on request | Contact us for price and availability |
| 37 | 30023709 | Ferrari LH Window Motor - 30023709 | Price on request | Contact us for price and availability |
| 38 | 30078505 | Ferrari Window Winder Handle - 30078505 | Price on request | Contact us for price and availability |
| 20120200 | Ferrari Weather Strip - 20120200 | $47.03 | Special order, ships in 7-14 days |
