Ferrari 365 GTB4 (Daytona) — Door Frame (diagram 224B)

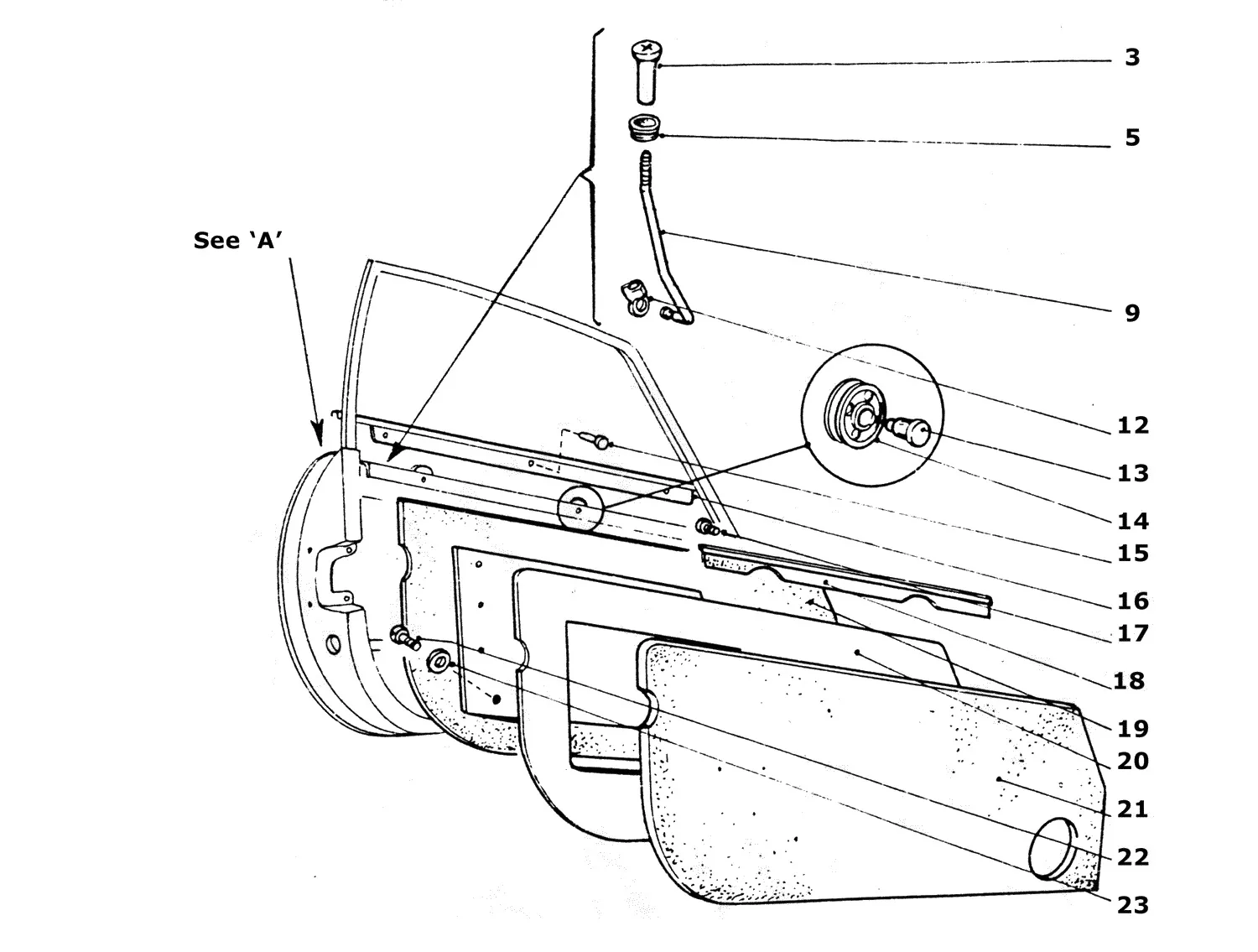

Exploded view of the door frame on the Ferrari 365 GTB4 (Daytona), with 23 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 365 GTB4 (Daytona) Door Frame exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
320170403Ferrari Door Lock Knob - 20170403$11.50Available, ships in 3-6 days
320170403/AFerrari Door Lock Knob - 20170403/A$42.76Available, ships in 3-6 days
530016208Ferrari Rubber Grommet Door Button - 30016208$56.85Available, ships in 3-6 days
930015804Ferrari RH Door Lock Rod - 30015804$6.63Special order, ships in 7-14 days
930015903Ferrari LH Door Lock Rod - 30015903Price on requestContact us for price and availability
1214578180Ferrari 360/430 Door Rod Clip - 14578180$20.00In stock
1230016109Ferrari Door Clip - 30016109$37.14Available, ships in 3-6 days
1320071007Ferrari Metal Pulley - 20071007$57.75Special order, ships in 7-14 days
1512839430Ferrari BLIND RIVET - 12839430Price on requestContact us for price and availability
1630023808Ferrari RH Door Outer Chrome Trim - 30023808Price on requestContact us for price and availability
1630023907Ferrari LH Outer Chrome Trim - 30023907Price on requestContact us for price and availability
180300656Ferrari RH Inner Door Trim Capping - 0300656Price on requestContact us for price and availability
180300657Ferrari LH Inner Door Trim Capping - 0300657Price on requestContact us for price and availability
190300178Ferrari NYLON - 0300178Price on requestContact us for price and availability
200300653Ferrari RH Inner Door Skin - 0300653Price on requestContact us to order
200300654Ferrari LH Inner Door Skin - 0300654Price on requestContact us to order
210300177Ferrari RUBBER PANEL - 0300177Price on requestContact us for price and availability
220300628Ferrari PLUG - 0300628Price on requestContact us for price and availability
2310794011Ferrari Nut M4 x 0.7mm - 10794011$0.06Available, ships in 3-6 days
30016107Ferrari Clip - 30016107Price on requestContact us for price and availability
60813500Ferrari Door Clip - 60813500Price on requestContact us for price and availability
-30015400Ferrari LH DOOR ASSY - 30015400Price on requestContact us to order
-0300133Ferrari RH DOOR ASSY - 0300133Price on requestContact us to order

All 365 GTB4 (Daytona) diagrams
