Ferrari 365 GTC4 — USA Fuel Circuit - Air Pollution System Oct 1972 (diagram 055)

Exploded view of the usa fuel circuit - air pollution system oct 1972 on the Ferrari 365 GTC4, with 41 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

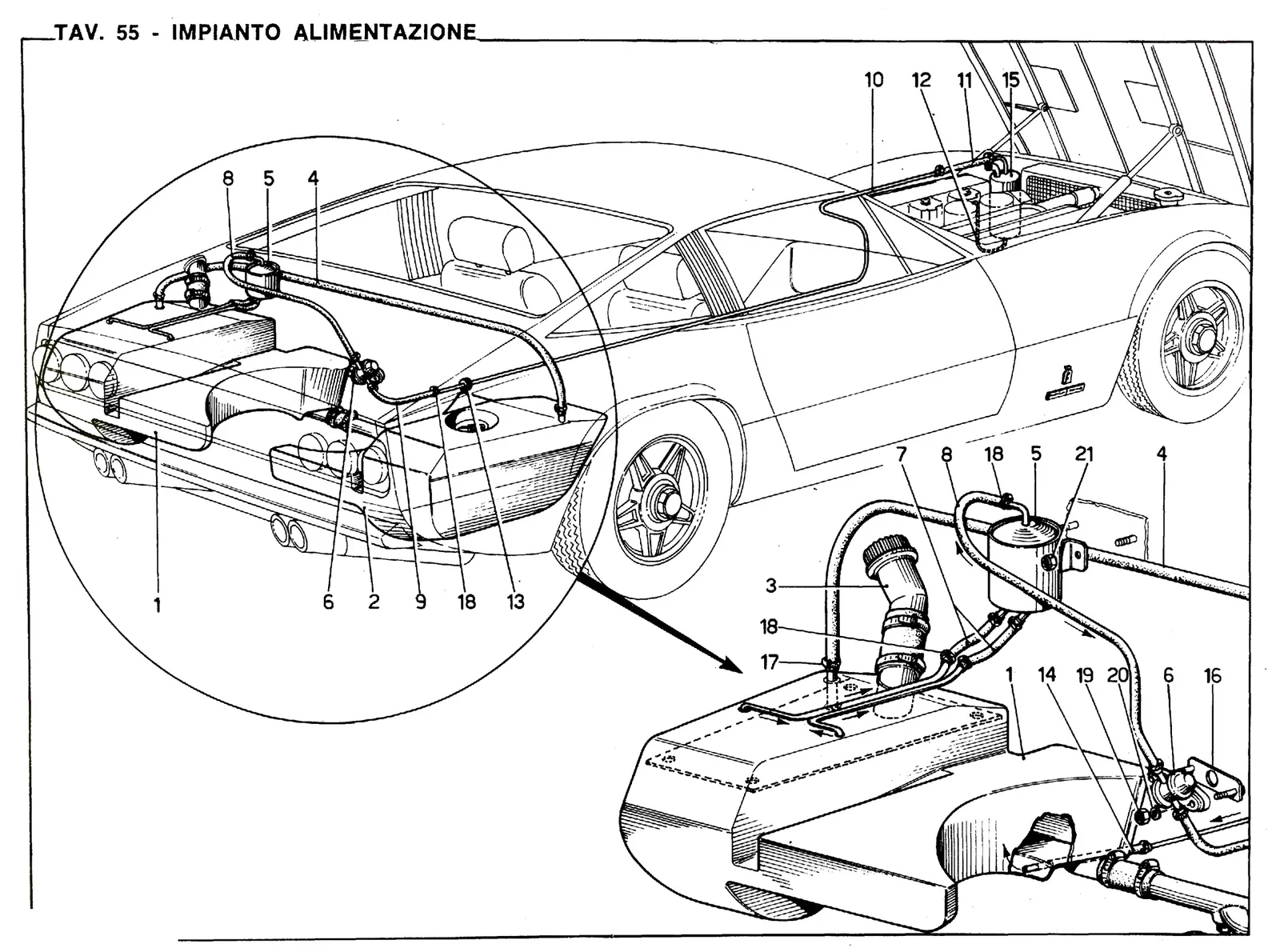

Ferrari 365 GTC4 USA Fuel Circuit - Air Pollution System Oct 1972 exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1821266Ferrari LH Fuel Tank - 821266Price on requestContact us to order
2821267Ferrari RH Fuel Tank - 821267SupersededOrder 103670 instead
2103670Ferrari RH Fuel Tank Usa Spec - 103670$1,722.60Contact us to order
3821268Ferrari Fuel Filler - 821268SupersededOrder 103672 instead
3103672Ferrari Fuel Filler Pipe - 103672$251.54Available, ships in 3-6 days
4821269Ferrari Fuel Breather Hose - 821269Price on requestContact us for price and availability
5821262Ferrari Disareator - 821262SupersededOrder 103676 instead
5103676Ferrari Fuel Deaerator - 103676$154.04Available, ships in 3-6 days
6820938Ferrari Valve Union - 820938Price on requestContact us for price and availability
7821270Ferrari Pipe - 821270Price on requestContact us for price and availability
8821271Ferrari Pipe - 821271Price on requestContact us for price and availability
9821272Ferrari Pipe - 821272SupersededOrder 103688 instead
9103688Ferrari Pipe - 103688$2.42Available, ships in 3-6 days
10821273Ferrari Pipe - 821273Price on requestContact us for price and availability
11821274Ferrari Pipe - 821274Price on requestContact us for price and availability
12821275Ferrari Part Search Results - 821275$1,827.64Special order, ships in 7-14 days
12103691Ferrari Pipe - 103691$16.41Available, ships in 3-6 days
13821359Ferrari Guiding Slit - 821359SupersededOrder 104383 instead
13104383Ferrari Guiding Slide - 104383$4.73Available, ships in 3-6 days
14821279Ferrari Pipe - 821279SupersededOrder 103674 instead
14103674Ferrari Pipe - 103674$8.05Available, ships in 3-6 days
15821312Ferrari Filter - 821312Price on requestContact us for price and availability
16821276Ferrari Part Search Results - 821276$1,827.64Special order, ships in 7-14 days
16103687Ferrari Plate - 103687$20.30Available, ships in 3-6 days
1795608Ferrari Hose Clip - 95608$9.20Available, ships in 3-6 days
19102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
1912574221Ferrari Nyloc Nut - 12574221SupersededOrder 102948 instead
2012639701Ferrari Washer - 12639701Price on requestContact us for price and availability
21169180Ferrari Nyloc Nut M5 x 6.3 - 169180$0.31Available, ships in 3-6 days
2112574121Ferrari Nyloc Nut White - 12574121SupersededOrder 169180 instead
14499370Ferrari Lock Washer - 14499370Price on requestContact us for price and availability
103373Ferrari Nut - 103373SupersededOrder 102948 instead
12574115Ferrari Nut - 12574115SupersededOrder 169180 instead
12577811Ferrari Nut - 12577811SupersededOrder 169180 instead
12774221Ferrari Nut - 12774221SupersededOrder 102948 instead
125519Ferrari Nyloc Nut - 125519SupersededOrder 102948 instead
12574111Ferrari Nyloc Nut - 12574111SupersededOrder 169180 instead
103299Ferrari Spacer - 103299Price on requestContact us for price and availability
740291Ferrari Spacer - 740291Price on requestContact us for price and availability
103673Ferrari Tube - 103673Price on requestContact us for price and availability
103686Ferrari Valve Union Version USA - 103686Price on requestContact us for price and availability
