Ferrari 365 GTC4 — Rear Screen (diagram 214)

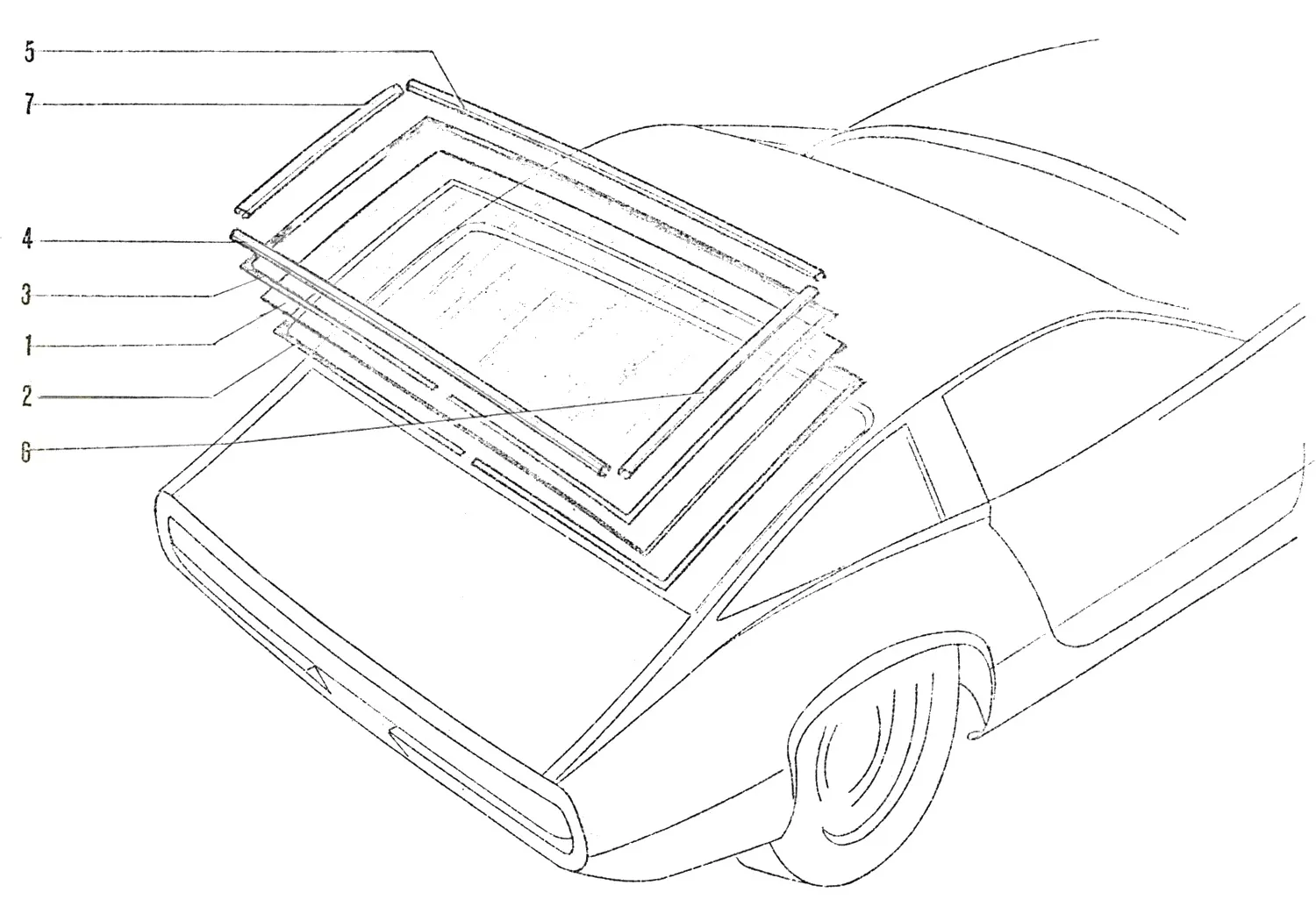

Exploded view of the rear screen on the Ferrari 365 GTC4, with 7 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 253-40-504-00 | Ferrari Rear Heated Window - 253-40-504-00 | Price on request | Contact us to order |
| 2 | 152-40-020-00 | Ferrari Adhesive Strip - 152-40-020-00 | Price on request | Contact us for price and availability |
| 3 | 152-40-022-00 | Ferrari Adhesive Strip - 152-40-022-00 | Price on request | Contact us for price and availability |
| 4 | 253-40-560-08 | Ferrari Rear Lower Screen Moulding - 253-40-560-08 | Price on request | Contact us for price and availability |
| 5 | 253-40-580-08 | Ferrari Upper Rear Screen Moulding - 253-40-580-08 | Price on request | Contact us for price and availability |
| 6 | 253-40-600-08 | Ferrari RH Rear Screen Moulding - 253-40-600-08 | Price on request | Contact us for price and availability |
| 7 | 253-40-601-08 | Ferrari LH Rear Screen Moulding - 253-40-601-08 | Price on request | Contact us for price and availability |
