Ferrari 412 — Power Steering Oil Tank - Oil Pneumatic Self Levelling Device (diagram 044)

Exploded view of the power steering oil tank - oil pneumatic self levelling device on the Ferrari 412, with 44 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

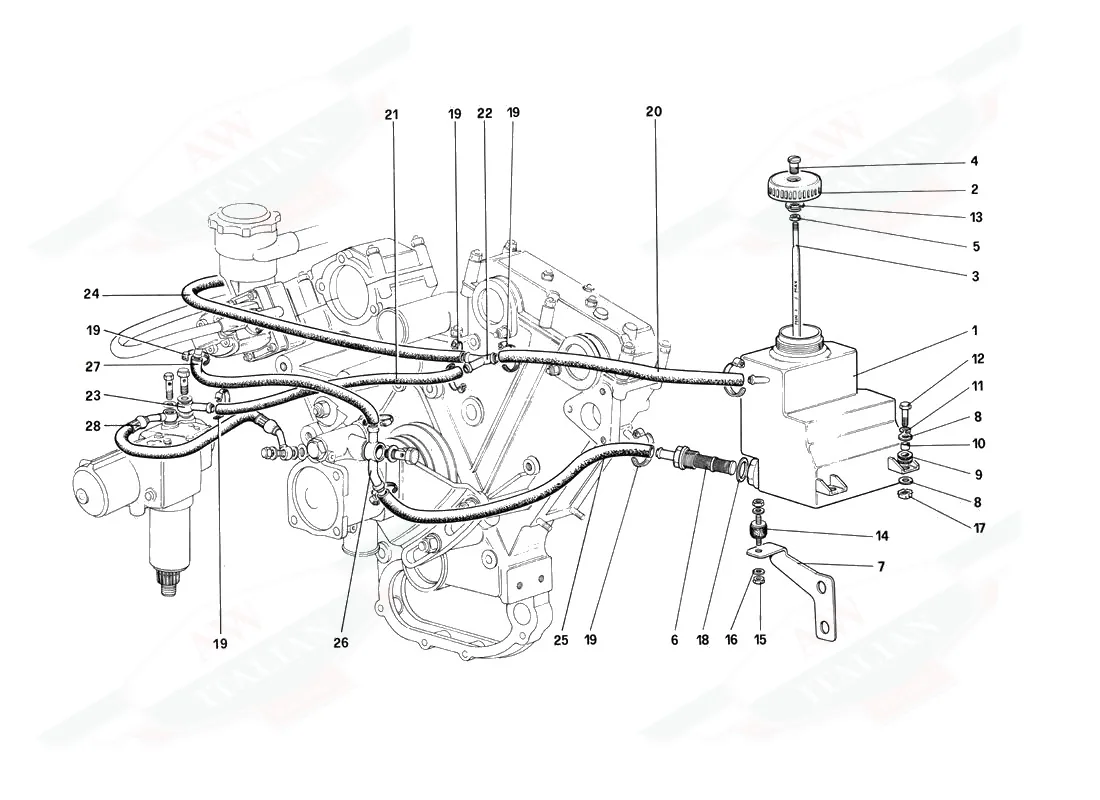

Ferrari 412 Power Steering Oil Tank - Oil Pneumatic Self Levelling Device exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1128764Ferrari Oil Tank - 128764$1,000.81Available, ships in 3-6 days
2126141Ferrari Oil Filler Cap - 126141$283.88Special order, ships in 7-14 days
3128765Ferrari Oil Dip Stick - 128765$72.20Available, ships in 3-6 days
4126142Ferrari Screw - 126142Price on requestContact us for price and availability
515896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
6120410Ferrari Filter - 120410$102.62Available, ships in 3-6 days
7128767Ferrari Bracket - 128767$15.56Available, ships in 3-6 days
8106744Ferrari Washer - 106744$18.13Available, ships in 3-6 days
9103549Ferrari Grommet - 103549$2.80In stock
10103550Ferrari Metal Bush Insert - 103550$8.34Available, ships in 3-6 days
11127494Ferrari Lock Washer - 127494$0.50In stock
1210902721Ferrari Bolt - 10902721Price on requestContact us for price and availability
13101242Ferrari Ring Nut Gt 12X1 - 101242$49.64Available, ships in 3-6 days
14102947Ferrari Vibration Dampening Support - 102947$8.31In stock
1612643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
1760758600Ferrari Caged Captive Nut 6mm - 60758600$1.09Available, ships in 3-6 days
18102645Ferrari Copper Washer - 102645$3.03In stock
1912179590Ferrari Hose Clip 16-25 - 12179590SupersededOrder 13000390 instead
1913000390Ferrari Screw Collar 16-25mm - 13000390SupersededOrder 178052 instead
20128773Ferrari Hose - 128773$25.68Available, ships in 3-6 days
21118851Ferrari Tube - 118851$22.16Available, ships in 3-6 days
22120401Ferrari Union - 120401Price on requestContact us for price and availability
23113314Ferrari Tube with revolving device LHD - 113314$53.63Available, ships in 3-6 days
25119137Ferrari P.A.S.Ret/Hose LHD - 119137Price on requestContact us for price and availability
26128836Ferrari Union - 128836$111.63Available, ships in 3-6 days
27128863Ferrari Tube - 128863Price on requestContact us for price and availability
28128737Ferrari Tube - 128737$466.44Available, ships in 3-6 days
10296260Ferrari Copper Washer 28x36x1.5 - 10296260SupersededOrder 102645 instead
520161Ferrari Copper Washer - 520161SupersededOrder 102645 instead
94701Ferrari Copper Washer - 94701SupersededOrder 102645 instead
100507Ferrari Jubilee Clip - 100507SupersededOrder 13000390 instead
102007Ferrari Mounting - 102007SupersededOrder 102947 instead
20456Ferrari Mounting - 20456SupersededOrder 102947 instead
830257Ferrari Oil Cap - 830257Price on requestContact us for price and availability
109719Ferrari Oil Tank Cap - 109719Price on requestContact us for price and availability
139648Ferrari Plastic Oil Cap - 139648Price on requestContact us for price and availability
10902724Ferrari Screw - 10902724Price on requestContact us for price and availability
106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
10516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
104283Ferrari Washer - 104283SupersededOrder 102645 instead
10516471Ferrari Washer - 10516471SupersededOrder 127494 instead
10516473Ferrari Washer - 10516473SupersededOrder 127494 instead
10516477Ferrari Washer - 10516477SupersededOrder 127494 instead
821139Ferrari Washer - 821139SupersededOrder 102645 instead
