Ferrari 412 — Rear Seats (diagram 223A)

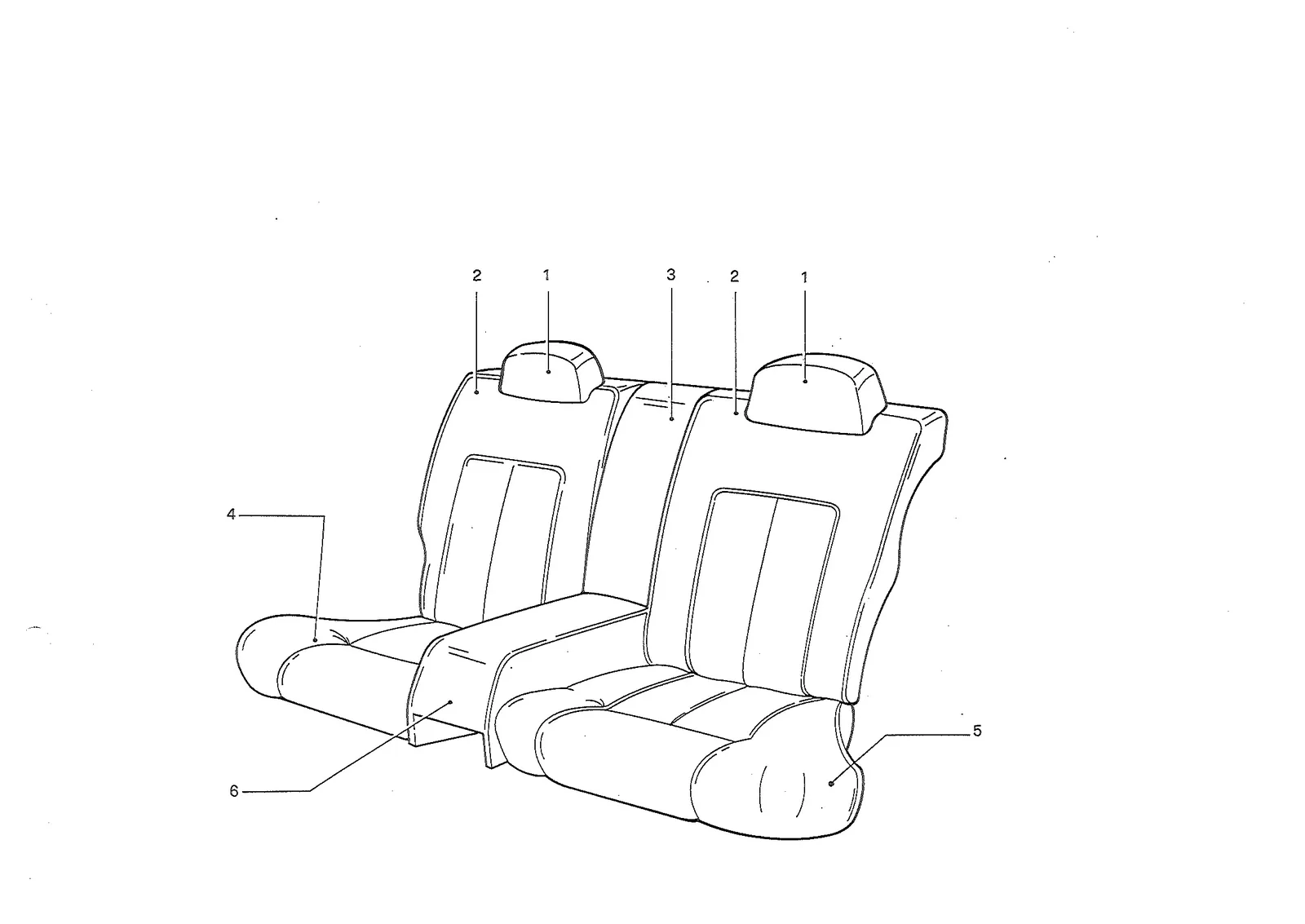

Exploded view of the rear seats on the Ferrari 412, with 6 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 257-66-058-00 | Ferrari Headrest - 257-66-058-00 | Price on request | Contact us for price and availability |
| 2 | 257-66-034-00 | Ferrari Back Of Seat - 257-66-034-00 | Price on request | Contact us to order |
| 3 | 257-66-074-00 | Ferrari Seat Squab - 257-66-074-00 | Price on request | Contact us for price and availability |
| 4 | 257-66-032-00 | Ferrari RH Cushion - 257-66-032-00 | Price on request | Contact us for price and availability |
| 5 | 257-66-033-00 | Ferrari RH Cushion - 257-66-033-00 | Price on request | Contact us for price and availability |
| 6 | 257-66-076-00 | Ferrari Armrest - 257-66-076-00 | Price on request | Contact us for price and availability |
