Ferrari 430 Scuderia — Radio Amplifier System -Optional- (diagram 151)

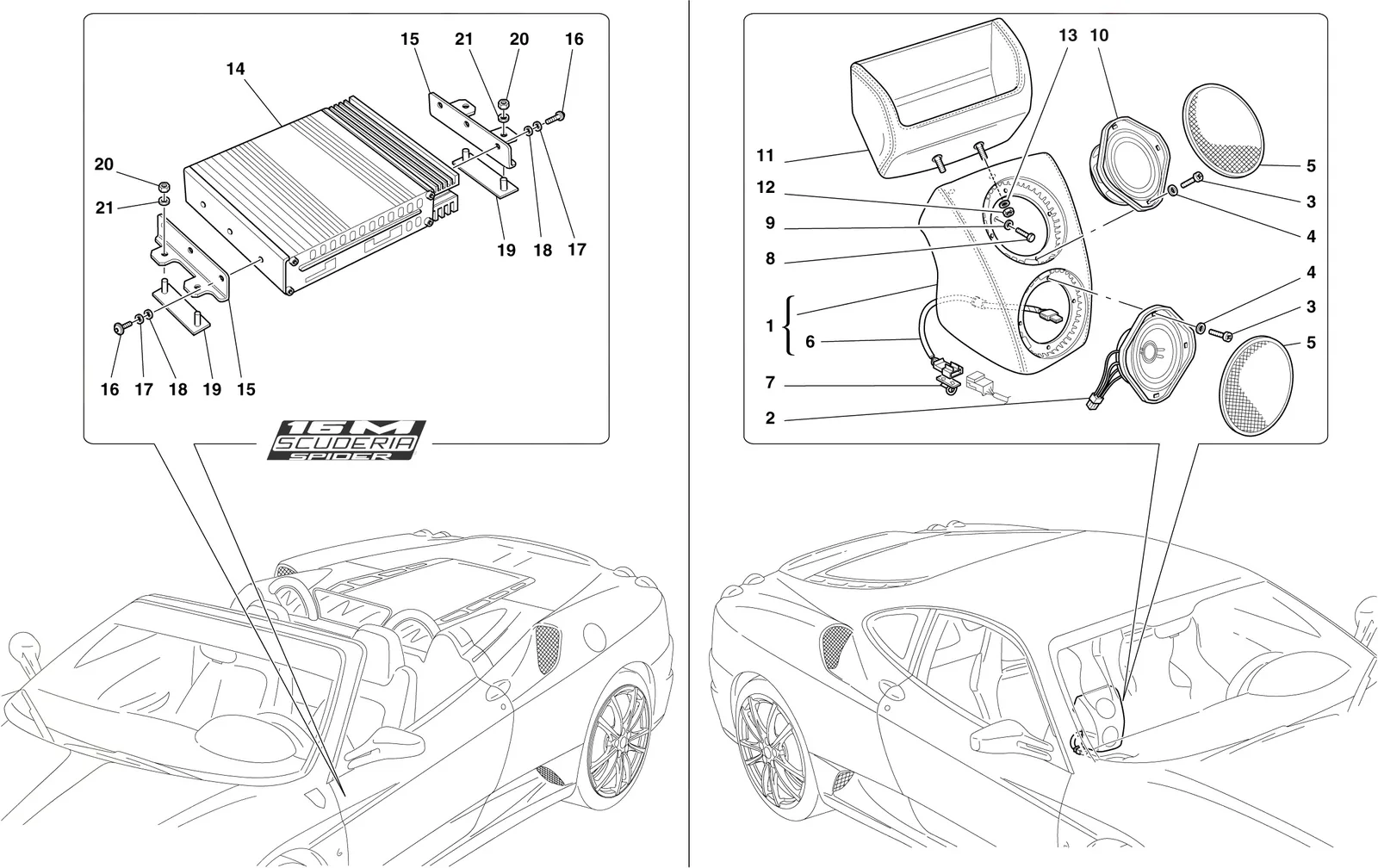

Exploded view of the radio amplifier system -optional- on the Ferrari 430 Scuderia, with 23 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 2 | 188610 | Ferrari Loud Speaker - 188610 | Price on request | Contact us for price and availability |
| 3 | 13272077 | Ferrari Screw - 13272077 | $3.03 | Available, ships in 3-6 days |
| 4 | 12637878 | Ferrari Washer - 12637878 | $0.19 | Available, ships in 3-6 days |
| 5 | 68931100 | Ferrari Speaker Grill - 68931100 | Price on request | Contact us for price and availability |
| 6 | 190455 | Ferrari Sub Woofer Connection Cables - 190455 | $132.15 | Special order, ships in 7-14 days |
| 7 | 155978 | Ferrari Clips For Door Micro Switches - 155978 | $0.82 | Available, ships in 3-6 days |
| 8 | 10903421 | Ferrari Screw - 10903421 | Price on request | Contact us for price and availability |
| 9 | 109483 | Ferrari Washer - 109483 | $3.47 | Available, ships in 3-6 days |
| 10 | 188609 | Ferrari Loud Speaker - 188609 | Price on request | Contact us for price and availability |
| 12 | 14084111 | Ferrari Nut - 14084111 | Superseded | Order 11673111 instead |
| 13 | 12637824 | Ferrari Washer - 12637824 | $0.13 | Available, ships in 3-6 days |
| 14 | 82072600 | Ferrari Audio Amplifier - 82072600 | $7,282.69 | Special order, ships in 7-14 days |
| 15 | 82013000 | Ferrari Bracket - 82013000 | $83.20 | Special order, ships in 7-14 days |
| 16 | 82168400 | Ferrari Screw 5X8 - 82168400 | $0.84 | Special order, ships in 7-14 days |
| 17 | 12604174 | Ferrari Washer - 12604174 | $0.06 | Available, ships in 3-6 days |
| 18 | 12637801 | Ferrari Washer - 12637801 | $0.19 | Available, ships in 3-6 days |
| 19 | 82013100 | Ferrari Plate - 82013100 | $51.37 | Special order, ships in 7-14 days |
| 20 | 169180 | Ferrari Nyloc Nut M5 x 6.3 - 169180 | $0.31 | Available, ships in 3-6 days |
| 12574115 | Ferrari Nut - 12574115 | Superseded | Order 169180 instead | |
| 12577811 | Ferrari Nut - 12577811 | Superseded | Order 169180 instead | |
| 12574111 | Ferrari Nyloc Nut - 12574111 | Superseded | Order 169180 instead | |
| 12574121 | Ferrari Nyloc Nut White - 12574121 | Superseded | Order 169180 instead | |
| 12601174 | Ferrari Wavy Washer 5mm - 12601174 | $0.12 | Available, ships in 3-6 days |
