Ferrari 456 GT/GTA — Driving Shaft - Connecting Rods And Pistons (diagram 003)

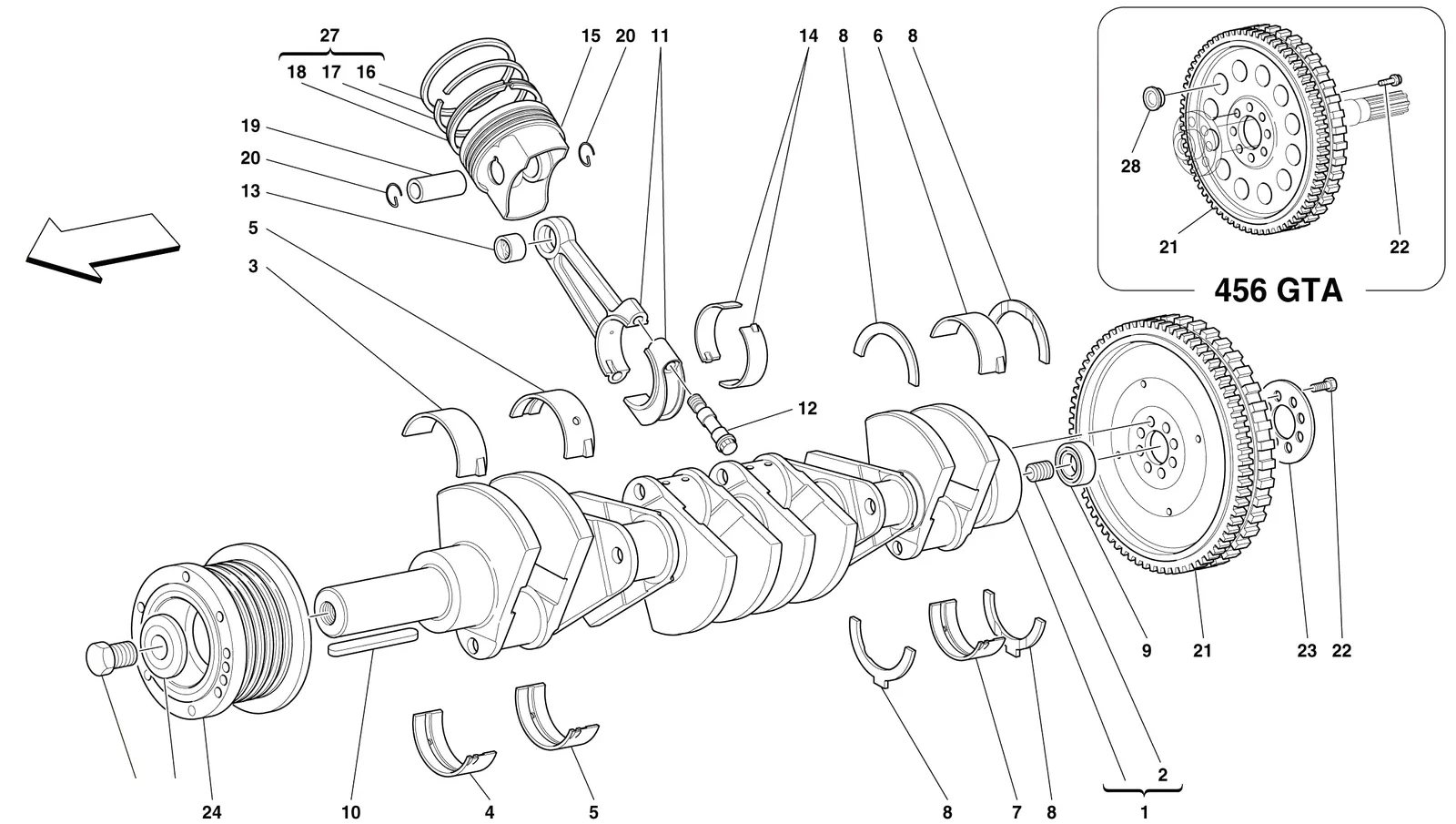

Exploded view of the driving shaft - connecting rods and pistons on the Ferrari 456 GT/GTA, with 55 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 140501 | Ferrari Crankshaft - 140501 | $4,408.37 | Available, ships in 3-6 days |
| 2 | 104024 | Ferrari Engine Bearing - 104024 | $100.25 | In stock |
| 2 | 153214/16 | Ferrari Main Engine Bearing Set - 153214/16 | $440.00 | In stock |
| 2 | 163528 | Ferrari Threaded Plug D. 20 x 11 - 163528 | $7.86 | Available, ships in 3-6 days |
| 2 | 173485 | Ferrari Main Bearing Set 1st Undersize 0.254mm - 173485 | $2,581.84 | Available, ships in 3-6 days |
| 2 | 153213 | Ferrari Main Bearing Set Standard 2.7 Motronic - 153213 | Price on request | Contact us for price and availability |
| 2 | 173484 | Ferrari Main Bearing Set Standard 5.2 Motronic - 173484 | Price on request | Contact us for price and availability |
| 2 | 153215 | Ferrari Main Bearing Set 2nd Undersize 0.508mm 2.7 Motronic - 153215 | $514.01 | Special order, ships in 7-14 days |
| 2 | 173486 | Ferrari Main Bearing Set 2nd Undersize 0.508mm - 173486 | $3,049.20 | Special order, ships in 7-14 days |
| 8 | 100146 | Ferrari Crankshaft Thrust Washers - 100146 | $43.84 | In stock |
| 8 | 100147 | Ferrari Thrust Washer Pair - 100147 | $14.19 | In stock |
| 8 | 164108 | Ferrari Thrust Washer Standard - 164108 | $176.50 | Available, ships in 3-6 days |
| 8 | 164111 | Ferrari Thrust Washer Standard - 164111 | $176.50 | Available, ships in 3-6 days |
| 8 | 113984 | Ferrari Thrust Washers Per Pair 1st Oversize 0.127mm - 113984 | $183.83 | Available, ships in 3-6 days |
| 8 | 164112 | Ferrari Thrust Washer 1st Oversize 0.127mm - 164112 | Price on request | Contact us for price and availability |
| 8 | 164113 | Ferrari Thrust Washer 2nd Oversize 0.254mm - 164113 | Price on request | Contact us for price and availability |
| 8 | 164109 | Ferrari Thrust Washer 1st Oversize 0.127mm - 164109 | Price on request | Contact us for price and availability |
| 8 | 164110 | Ferrari Thrust Washer 2nd Oversize 0.254mm - 164110 | Price on request | Contact us for price and availability |
| 9 | 103877 | Ferrari/Maserati Clutch Pilot Bearing - 103877 | $32.95 | In stock |
| 10 | 144876 | Ferrari Woodruff Key - 144876 | $9.03 | Special order, ships in 7-14 days |
| 11 | 155613 | Ferrari Con Rod Complete - 155613 | Price on request | Contact us for price and availability |
| 12 | 150966 | Ferrari Con Rod Bolt - 150966 | Price on request | Contact us for price and availability |
| 13 | 170047 | Ferrari Small End Bush - 170047 | Price on request | Contact us for price and availability |
| 14 | 106183/24 | Ferrari Connecting Rod Bearing Set of 24 - 106183/24 | $799.99 | In stock |
| 14 | 100151 | Ferrari Engine Connecting Rod Bearing undersize - 100151 | $75.68 | In stock |
| 14 | 106183/16 | Ferrari Connecting Rod Bearing Set of 16 - 106183/16 | $539.65 | In stock |
| 14 | 106183 | Ferrari Connecting Rod Bearing - 106183 | $34.45 | In stock |
| 14 | 100152 | Ferrari Con Rod Half Bearing 2nd Undersize 0.508mm - 100152 | $174.80 | Available, ships in 3-6 days |
| 14 | 100150 | Ferrari Con Rod Half Bearing Standard - 100150 | Superseded | Order 106183 instead |
| 15 | 168173 | Ferrari Piston With Rings - 168173 | $709.82 | Available, ships in 3-6 days |
| 15 | 156166 | Ferrari Piston With Rings - 156166 | $1,737.90 | Special order, ships in 7-14 days |
| 15 | 163812 | Ferrari Piston With Rings - 163812 | $1,737.90 | Special order, ships in 7-14 days |
| 19 | 154717 | Ferrari Gudgeon Pin - 154717 | Price on request | Contact us for price and availability |
| 20 | 152993 | Ferrari Clip - 152993 | $12.15 | Available, ships in 3-6 days |
| 21 | 151258 | Ferrari Engine Flywheel - 151258 | Superseded | Order 193051 instead |
| 21 | 193051 | Ferrari Engine Flywheel - 193051 | $2,144.70 | Available, ships in 3-6 days |
| 21 | 173760 | Ferrari Engine Flywheel - 173760 | Superseded | Order 193051 instead |
| 21 | 170774 | Ferrari Engine Flywheel - 170774 | $1,909.23 | Available, ships in 3-6 days |
| 22 | 201755 | Ferrari Clutch/Flywheel Bolt - 201755 | $3.14 | In stock |
| 22 | 155750 | Ferrari Bolt - 155750 | $30.95 | Available, ships in 3-6 days |
| 22 | 103875 | Ferrari Flywheel Bolt - 103875 | Superseded | Order 201755 instead |
| 23 | 103876 | Ferrari Flywheel Washer - 103876 | $19.22 | Available, ships in 3-6 days |
| 24 | 155410 | Ferrari Front Torsion Damper Pulley - 155410 | Superseded | Order 168565 instead |
| 24 | 168565 | Ferrari Front Torsion Damper Pulley - 168565 | $3,692.61 | Available, ships in 3-6 days |
| 24 | 167881 | Ferrari Front Pulley Damper - 167881 | Price on request | Contact us for price and availability |
| 25 | 140925 | Ferrari Bolt - 140925 | $261.07 | Special order, ships in 7-14 days |
| 26 | 140922 | Ferrari Washer - 140922 | Price on request | Contact us for price and availability |
| 27 | 159987 | Ferrari Piston Ring Set - 159987 | $394.83 | Available, ships in 3-6 days |
| 27 | 173535 | Ferrari Piston Ring Set - 173535 | Price on request | Contact us for price and availability |
| 28 | 111540 | Ferrari Anti Vibration Bush - 111540 | Price on request | Contact us for price and availability |
| 14447 | Ferrari Con Rod Half Bearing Standard - 14447 | Superseded | Order 106183 instead | |
| 104310 | Ferrari Cwp Bolt - 1mm pitch - 104310 | $55.56 | Available, ships in 3-6 days | |
| 175690 | Ferrari Front Torsion Damper Pulley - 175690 | Price on request | Contact us for price and availability | |
| 4150813 | Ferrari Thrust Washer Per Pair - 4150813 | Superseded | Order 100146 instead | |
| 10345 | Lamborghini Espada/Jarama Ignition Wire Set - 10345 | Superseded | Order 100146 instead |
