Ferrari 456 GT/GTA — Lubrication - Oil Sump And Filters (diagram 023)

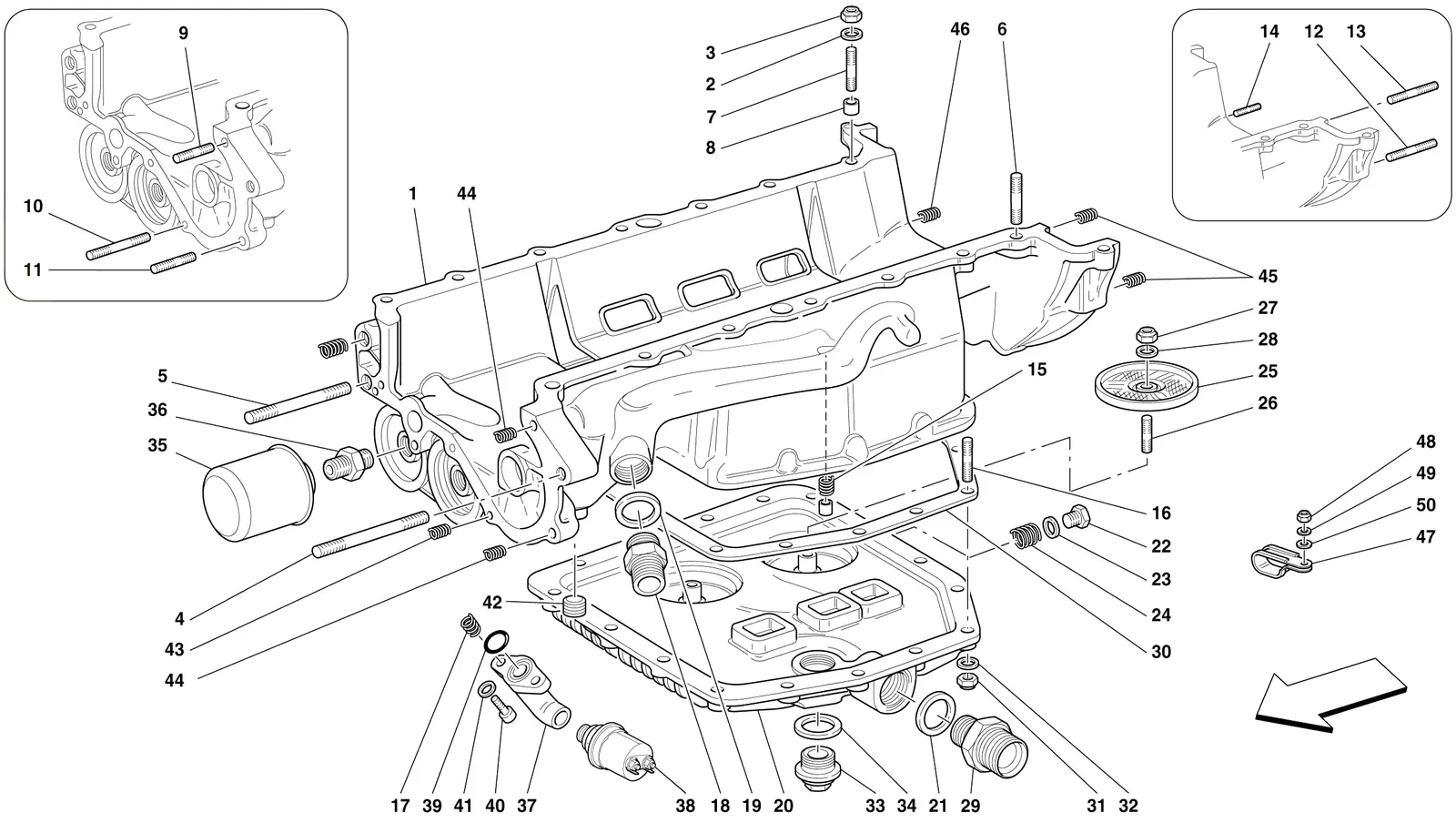

Exploded view of the lubrication - oil sump and filters on the Ferrari 456 GT/GTA, with 84 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 456 GT/GTA Lubrication - Oil Sump And Filters exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1154643Ferrari Oil Sump Complete - 154643$4,279.17Special order, ships in 7-14 days
1157959Ferrari Oil Sump Complete - 157959$2,721.54Special order, ships in 7-14 days
1154529Ferrari Oil Sump - 154529Price on requestContact us for price and availability
212601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
3104030Ferrari/Maserati Nut - 104030$0.88In stock
316104411Ferrari Nyloc Nut M8 x 8.5 - 16104411$0.46Available, ships in 3-6 days
413971134Ferrari Stud - 13971134$5.40Special order, ships in 7-14 days
5153423Ferrari Stud - 153423$18.04Special order, ships in 7-14 days
613543424Ferrari Stud - 13543424$3.91Available, ships in 3-6 days
713543624Ferrari Stud Bolt M8x16 -Shank length 30- - 13543624Price on requestContact us for price and availability
8100041Ferrari Dowel - 100041$14.22Available, ships in 3-6 days
913541224Ferrari Stud 6x12 -Shank length 22- - 13541224$71.17Available, ships in 3-6 days
1013541824Ferrari Stud 6x12 Stem 45 - 13541824$3.45Special order, ships in 7-14 days
1113543524Ferrari Stud Bolt M8x16 -Shank length 25- - 13543524$9.16Available, ships in 3-6 days
1213543824Ferrari Stud Bolt M8x16 -Shank length 40mm- - 13543824$6.31Available, ships in 3-6 days
1313543924Ferrari Stud M8 x 16 Gambo 45 - 13543924$3.26Available, ships in 3-6 days
1413541024Ferrari Stud - 13541024$0.69Available, ships in 3-6 days
1513525770Ferrari Heli-Coil - 13525770SupersededOrder 103830 instead
15103830Ferrari Heli Coil - 103830$5.00Available, ships in 3-6 days
1713525470Ferrari Heli Coil - 13525470$1.05Available, ships in 3-6 days
18145085Ferrari Union - 145085$39.14Special order, ships in 7-14 days
19898271Ferrari/Maserati Dowty Washer - 898271$28.23In stock
19144485Ferrari Dowty Washer - 144485SupersededOrder 898271 instead
20154602Ferrari Sump Pan - 154602$3,736.92Special order, ships in 7-14 days
22153903Ferrari Drain Plug M14 x 1.5 - 153903$27.84Available, ships in 3-6 days
2310280060Ferrari/Maserati Copper Washer - 10280060$1.93In stock
2413526570Ferrari Heli Coil - 13526570$1.57Available, ships in 3-6 days
25125308Ferrari Sump Filter - 125308$1,370.72Special order, ships in 7-14 days
2613540724Ferrari Stud - 13540724$0.96Special order, ships in 7-14 days
2715896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
29138149Ferrari Union - 138149$90.95Special order, ships in 7-14 days
30141960Ferrari Oil Sump Gasket - 141960$76.45In stock
31102741Ferrari/Maserati Nyloc Nut M6 - 102741$0.45In stock
3112575411Ferrari Nyloc Nut M6 x 6 - 12575411SupersededOrder 12575421 instead
3212601274Ferrari Wavy Washer 6mm - 12601274$1.04Available, ships in 3-6 days
33156144Ferrari Drain Plug - 156144$106.84Special order, ships in 7-14 days
3410303460Ferrari Copper Washer - 10303460$4.35In stock
35AW7550000Ferrari 456 & 550 Filter Kit - AW7550000$365.00In stock
35206166Ferrari Oil Filter - 206166$49.98In stock
35456OCSKFerrari 456/550/575/612 Oil Change Service Kit - 456OCSK$99.99In stock
35OFT-04Ferrari Oil Filter Tool - OFT-04$169.98In stock
35206166OEFerrari Oil Filter - 206166OE$139.99In stock
35141383Ferrari Oil Filter - 141383SupersededOrder 206166 instead
36141707Ferrari Union - 141707Price on requestContact us for price and availability
37143866Ferrari Support - 143866$318.19Special order, ships in 7-14 days
38135940Ferrari/Maserati Oil Pressure Sender - 135940$141.90In stock
39132248Ferrari O-Ring - 132248$1.69In stock
4014305324Ferrari Screw M6 x 20mm - 14305324$0.17Available, ships in 3-6 days
4210269850Ferrari Threaded Plug D. 22 x 11 - 10269850$3.70Available, ships in 3-6 days
4313525870Ferrari Heli-Coil - 13525870$5.44Available, ships in 3-6 days
4413525570Ferrari Heli-Coil - 13525570Price on requestContact us for price and availability
4710441490Ferrari/Maserati Retaining Clip - 10441490$1.35In stock
4912639724Ferrari Washer - 12639724$0.08Available, ships in 3-6 days
50127494Ferrari Lock Washer - 127494$0.50In stock
103403Ferrari Gasket - 103403SupersededOrder 10280060 instead
891997Ferrari Gasket - 891997SupersededOrder 898271 instead
109668Ferrari Heli Coil - 109668Price on requestContact us for price and availability
12575421Ferrari Nyloc Nut M6 x 6 - 12575421$0.40Available, ships in 3-6 days
151323Ferrari Oil Filter - 151323SupersededOrder 206166 instead
106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
13540721Ferrari Stud - 13540721SupersededOrder 13540724 instead
13541821Ferrari Stud - 13541821SupersededOrder 13541824 instead
13543421Ferrari Stud - 13543421SupersededOrder 13543424 instead
13543621Ferrari Stud - 13543621Price on requestContact us for price and availability
13543921Ferrari Stud - 13543921SupersededOrder 13543924 instead
13543821Ferrari Stud M8 x 16 Gambo 40 - 13543821$4.54Special order, ships in 7-14 days
10516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
100501Ferrari Washer - 100501SupersededOrder 10280060 instead
100511Ferrari Washer - 100511SupersededOrder 10280060 instead
10516471Ferrari Washer - 10516471SupersededOrder 127494 instead
10516473Ferrari Washer - 10516473SupersededOrder 127494 instead
10516477Ferrari Washer - 10516477SupersededOrder 127494 instead
10615670Ferrari Washer - 10615670SupersededOrder 12601374 instead
10615671Ferrari Washer - 10615671SupersededOrder 12601374 instead
10615674Ferrari Washer - 10615674SupersededOrder 12601374 instead
10615679Ferrari Washer - 10615679SupersededOrder 12601374 instead
12601224Ferrari Washer - 12601224SupersededOrder 12601274 instead
12601370Ferrari Washer - 12601370SupersededOrder 12601374 instead
12601379Ferrari Washer - 12601379SupersededOrder 12601374 instead
12605370Ferrari Washer - 12605370SupersededOrder 12601274 instead
12605371Ferrari Washer - 12605371SupersededOrder 12601274 instead
680232Ferrari Washer - 680232SupersededOrder 12601274 instead
95108Ferrari Washer - 95108SupersededOrder 10280060 instead
12605374Ferrari Wavy Washer - 12605374SupersededOrder 12601274 instead
