Ferrari 456 GT/GTA — Lay Shaft Gears -Not For 456 Gta- (diagram 033)

Exploded view of the lay shaft gears -not for 456 gta- on the Ferrari 456 GT/GTA, with 56 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

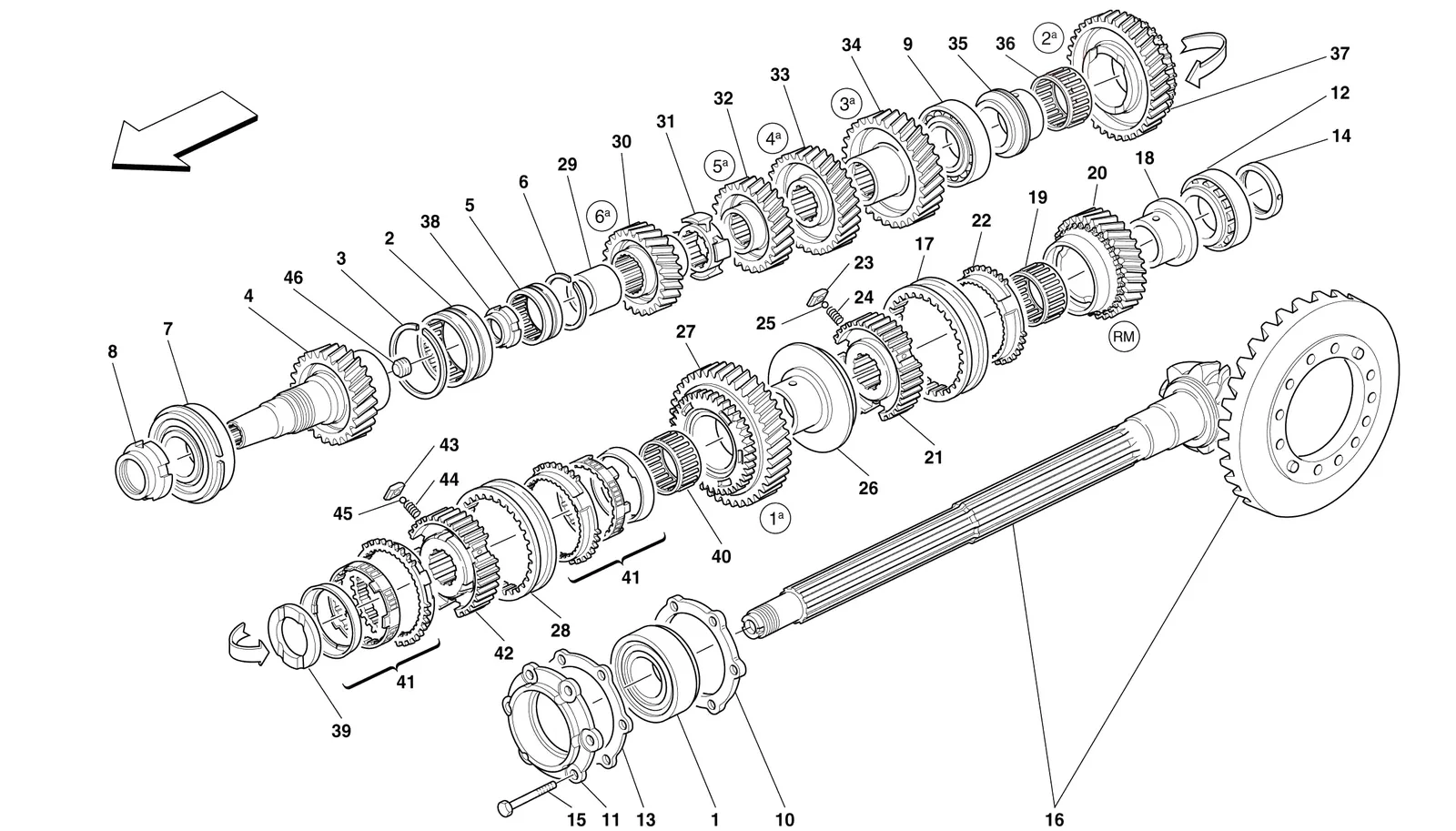

Ferrari 456 GT/GTA Lay Shaft Gears -Not For 456 Gta- exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1144498Ferrari Bearing - 144498$456.90Available, ships in 3-6 days
2144486Ferrari Roller Bearing - 144486Price on requestContact us for price and availability
3144511Ferrari Snap Ring - 144511Price on requestContact us for price and availability
4154749Ferrari Drive Gear - 154749SupersededOrder 70000815 instead
4161823Ferrari Drive Gear - 161823Price on requestContact us for price and availability
5144476Ferrari Needle Roller Bearing - 144476$76.13Special order, ships in 7-14 days
6144520Ferrari Snap Ring - 144520$0.92Special order, ships in 7-14 days
7148188Ferrari Bearing - 148188Price on requestContact us for price and availability
8148137Ferrari Gearbox Locknut - 148137Price on requestContact us for price and availability
9131056Ferrari Roller Bearing - 131056SupersededOrder 228055 instead
10143924Ferrari Flange - 143924$93.00Available, ships in 3-6 days
11143923Ferrari Bush - 143923$118.83Special order, ships in 7-14 days
12121822Ferrari Tapered Bearing - 121822$646.99Available, ships in 3-6 days
13155718Ferrari Spacer 2mm - 155718$70.95Special order, ships in 7-14 days
13155719Ferrari Spacer 1.6mm - 155719$108.48Special order, ships in 7-14 days
13155720Ferrari Spacer 1.8mm - 155720Price on requestContact us for price and availability
13155721Ferrari Spacer 2.2mm - 155721Price on requestContact us for price and availability
13155722Ferrari Spacer 2.4mm - 155722$33.56Special order, ships in 7-14 days
14122152Ferrari Spacer - 122152Price on requestContact us for price and availability
1516321434Ferrari Screw - 16321434$16.08Special order, ships in 7-14 days
16150876Ferrari Crown Wheel & Pinion Complete R11/40 - 150876Price on requestContact us for price and availability
17152198Ferrari Synchro Sleeve - 152198Price on requestContact us for price and availability
18152090Ferrari Bush - 152090$878.45Special order, ships in 7-14 days
19150004Ferrari Caged Needle Roller Bearing - 150004$34.79Special order, ships in 7-14 days
20155880Ferrari Reverse Gear - 155880SupersededOrder 70000810 instead
21152203Ferrari Synchroniser Body - 152203$542.57Special order, ships in 7-14 days
22152205Ferrari Synchro Ring - 152205Price on requestContact us for price and availability
23152195Ferrari Block - 152195$1.15Available, ships in 3-6 days
24152196Ferrari Spring - 152196$1.28Available, ships in 3-6 days
25152197Ferrari Ball - 152197$5.96Special order, ships in 7-14 days
26152091Ferrari Bush - 152091$594.24Special order, ships in 7-14 days
27157251Ferrari Pinion For 1st Gear - 157251SupersededOrder 70000810 instead
28156931Ferrari Synchro Hub - 156931$697.59Available, ships in 3-6 days
29143889Ferrari Bush - 143889$36.15Special order, ships in 7-14 days
30155775Ferrari Pinion For 6th Gear - 155775SupersededOrder 70000814 instead
31143885Ferrari Transmitting Discs - 143885$214.42Special order, ships in 7-14 days
32155773Ferrari Pinion For 5th Gear - 155773$1,240.18Special order, ships in 7-14 days
33155771Ferrari Pinion For 4th Gear - 155771SupersededOrder 70000812 instead
34155769Ferrari Pinion For 3rd Gear - 155769$516.73Special order, ships in 7-14 days
35143892Ferrari Bushing - 143892$136.91Special order, ships in 7-14 days
36104254Ferrari Caged Needle Bearing - 104254$64.57Available, ships in 3-6 days
37157253Ferrari Pinion For 2nd Gear - 157253SupersededOrder 70000810 instead
38144048Ferrari Lock Nut - 144048Price on requestContact us for price and availability
39157375Ferrari Spacer - 157375Price on requestContact us for price and availability
41159088Ferrari Synchro Ring Kit - 159088$1,099.06Available, ships in 3-6 days
42157255Ferrari Synchroniser Body - 157255$904.28Special order, ships in 7-14 days
43157051Ferrari Gearbox Pawl - 157051$16.81Available, ships in 3-6 days
44157049Ferrari Selector Spring - 157049$2.51Available, ships in 3-6 days
45157050Ferrari Selector Ball - 157050$0.21Available, ships in 3-6 days
46155577Ferrari Plug - 155577$10.85Special order, ships in 7-14 days
70000811Ferrari 3Rd Gear & Pinion Set - 70000811$878.45Special order, ships in 7-14 days
70000812Ferrari 4Th Gear & Pinion Set - 70000812$4,872.21Special order, ships in 7-14 days
70000814Ferrari 6Th Gear & Pinion Set - 70000814$5,406.19Special order, ships in 7-14 days
70000815Ferrari Drive Gear & Pinion Kit (R31/28) - 70000815$3,216.14Special order, ships in 7-14 days
70000810Ferrari Pinion Set 1St & 2Nd Gear (456) - 70000810$7,020.43Special order, ships in 7-14 days
228055Ferrari Roller Bearing D.45-75 - 228055$278.70Available, ships in 3-6 days
