Ferrari 456 GT/GTA — Central Structures And Components (diagram 102)

Exploded view of the central structures and components on the Ferrari 456 GT/GTA, with 51 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

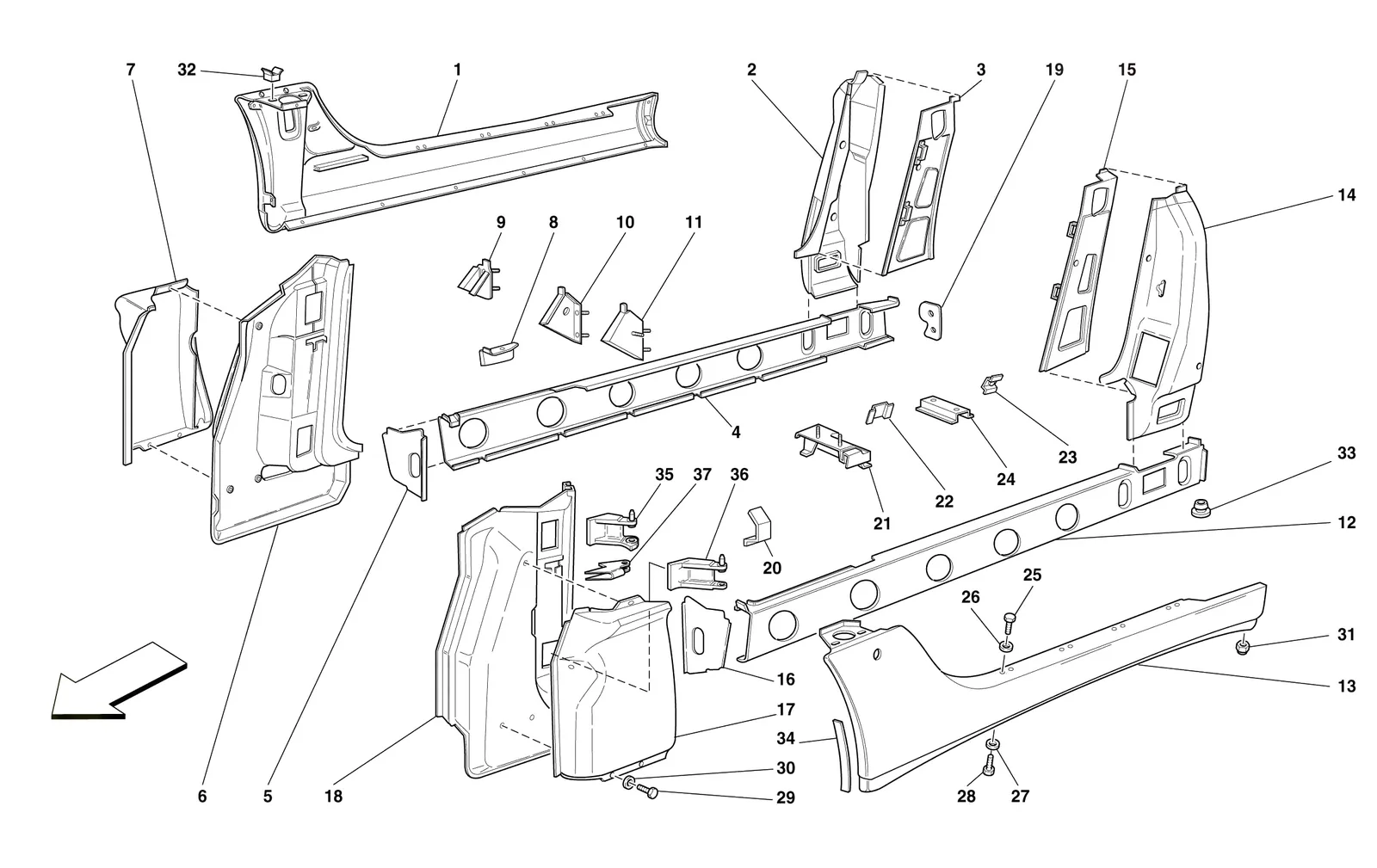

Ferrari 456 GT/GTA Central Structures And Components exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
163145400Ferrari RH Sill Cover Panel - 63145400Price on requestContact us for price and availability
164463100Ferrari RH Sill Panel - 64463100Price on requestContact us for price and availability
264973100Ferrari RH Pillar Panel - 64973100$660.87Special order, ships in 7-14 days
362791000Ferrari RH Inner Panel - 62791000Price on requestContact us for price and availability
463211600Ferrari RH Outer Pillar - 63211600SupersededOrder 63211611 instead
563212000Ferrari RH Plate - 63212000$23.96Special order, ships in 7-14 days
663199800Ferrari RH Pillar Panel - 63199800$367.14Special order, ships in 7-14 days
763201500Ferrari RH Cover Panel - 63201500Price on requestContact us for price and availability
863785300Ferrari RH Front Bracket LHD - 63785300$23.71Special order, ships in 7-14 days
963794900Ferrari Bracket Lhd - 63794900$26.89Special order, ships in 7-14 days
964041200Ferrari Bracket RHD - 64041200Price on requestContact us for price and availability
1063761400Ferrari Bracket LHD - 63761400$15.39Special order, ships in 7-14 days
1064041100Ferrari Bracket RHD - 64041100$51.37Special order, ships in 7-14 days
1163761600Ferrari Bracket LHD - 63761600$19.80Special order, ships in 7-14 days
1164041000Ferrari Bracket RHD - 64041000$46.48Special order, ships in 7-14 days
1263211700Ferrari LH Outer Pillar - 63211700Price on requestContact us for price and availability
1363145500Ferrari Lh Sill Cover Panel - 63145500Price on requestContact us for price and availability
1364463200Ferrari LH Sill Cover Panel - 64463200Price on requestContact us for price and availability
1463858000Ferrari LH Pillar Panel - 63858000$685.34Special order, ships in 7-14 days
1562791100Ferrari LH Inner Panel - 62791100$144.38Special order, ships in 7-14 days
1663212100Ferrari LH Plate - 63212100$23.96Special order, ships in 7-14 days
1763201600Ferrari LH Cover Panel - 63201600Price on requestContact us for price and availability
1863199900Ferrari LH Pillar Panel - 63199900$367.14Special order, ships in 7-14 days
1963213600Ferrari RH Rear Lower Shield - 63213600$82.65Special order, ships in 7-14 days
1963213700Ferrari LH Rear Lower Shield - 63213700$82.65Special order, ships in 7-14 days
2063785600Ferrari LH Front Bracket LHD - 63785600$23.71Special order, ships in 7-14 days
2064307000Ferrari LH Bracket RHD - 64307000$46.48Special order, ships in 7-14 days
2063785500Ferrari RH Front Bracket LHD - 63785500$48.93Special order, ships in 7-14 days
2163785700Ferrari Bracket - 63785700$93.00Special order, ships in 7-14 days
2263786300Ferrari Bracket - 63786300$29.34Special order, ships in 7-14 days
2363785900Ferrari Bracket - 63785900$18.32Special order, ships in 7-14 days
2463786200Ferrari Rear Bracket - 63786200$23.96Special order, ships in 7-14 days
2513833224Ferrari Screw - 13833224$0.33Available, ships in 3-6 days
2612638124Ferrari Washer - 12638124$0.08Available, ships in 3-6 days
2612638101Ferrari Washer White - 12638101SupersededOrder 12638124 instead
2710902380Ferrari Screw - 10902380$4.33Special order, ships in 7-14 days
2812648978Ferrari Washer - 12648978$1.04Available, ships in 3-6 days
2812643770Ferrari Washer - 12643770SupersededOrder 12648978 instead
3113832101Ferrari Flanged Nut M6 - 13832101$0.27Available, ships in 3-6 days
3260659100Ferrari Caged Captive Nut 6mm - 60659100$1.72Available, ships in 3-6 days
3362446300Ferrari Plug D30 - 62446300Price on requestContact us for price and availability
3464498400Ferrari LH Front Wheel Arch Tape - 64498400SupersededOrder 65833400 instead
3464498500Ferrari RH Front Wheel Arch Tape - 64498500SupersededOrder 65833500 instead
3465833500Ferrari RH Wheel Arch Protection Tape - 65833500$58.73Special order, ships in 7-14 days
3563189200Ferrari LH Upper Fixed Hinge - 63189200$318.19Special order, ships in 7-14 days
3563189100Ferrari RH Upper Fixed Hinge - 63189100$318.19Special order, ships in 7-14 days
3663188600Ferrari LH Lower Fixed Hinge - 63188600$318.19Special order, ships in 7-14 days
3663188500Ferrari RH Lower Fixed Hinge - 63188500$318.19Special order, ships in 7-14 days
3763762600Ferrari Tie Rod Support - 63762600Price on requestContact us for price and availability
65833400Ferrari LH Wheel Arch Protection Tape - 65833400$58.73Special order, ships in 7-14 days
63211611Ferrari RH Outer Pillar - 63211611$1,199.38Special order, ships in 7-14 days
