Ferrari 456 GT/GTA — Trunk Hood Insulations -Not For 456 Gta- (diagram 109)

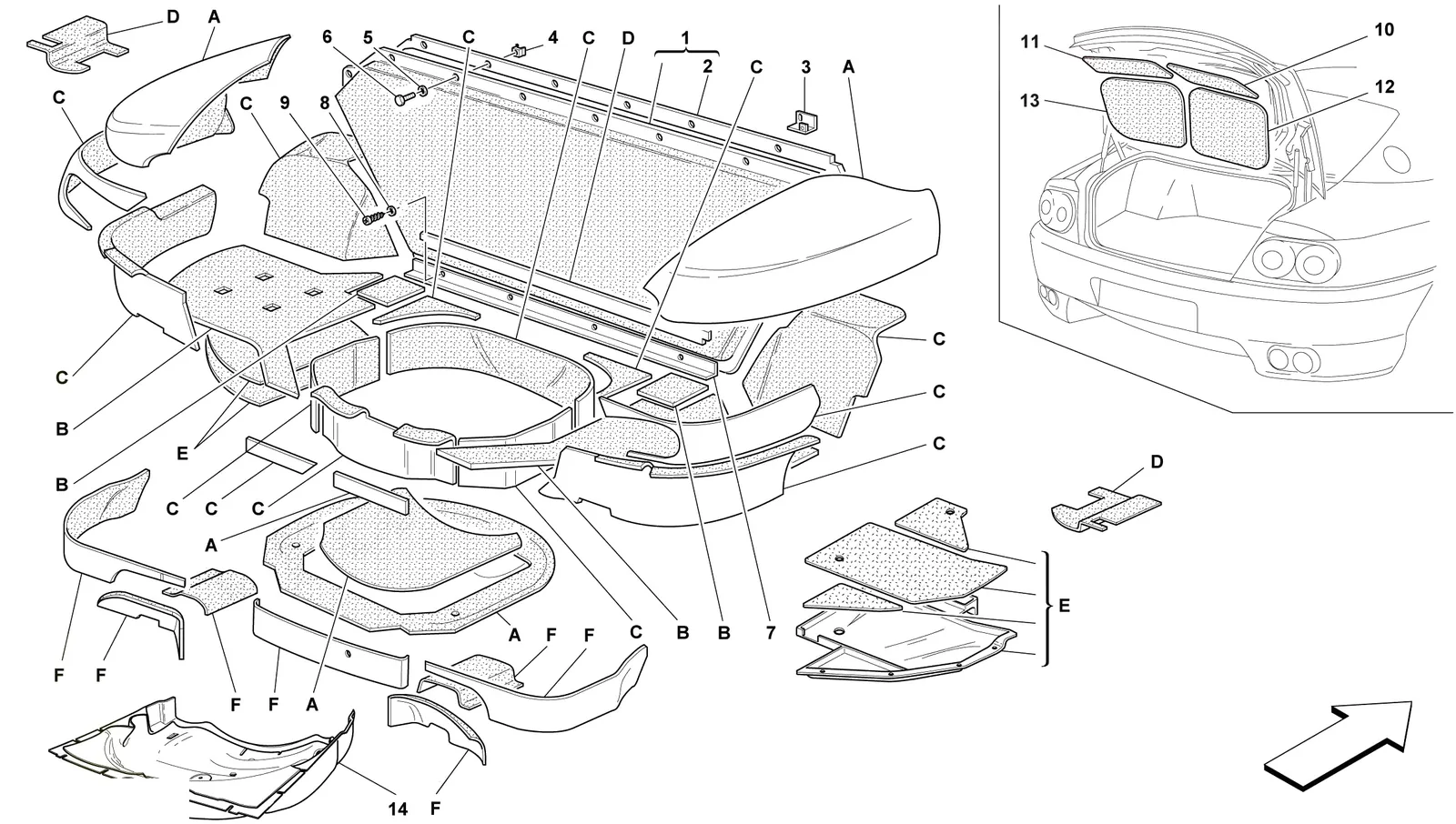

Exploded view of the trunk hood insulations -not for 456 gta- on the Ferrari 456 GT/GTA, with 27 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| A | 63495400 | Ferrari Heat Shield Set - 63495400 | Price on request | Contact us for price and availability |
| B | 63496200 | Ferrari Heat Shield Set - 63496200 | Superseded | Order 63495900 instead |
| C | 63493500 | Ferrari Heat Shield Set - 63493500 | Price on request | Contact us for price and availability |
| C | 64467100 | Ferrari Heat Shield Set - 64467100 | Price on request | Contact us for price and availability |
| D | 64055000 | Ferrari Boot Insulation Set - 64055000 | Price on request | Contact us for price and availability |
| E | 63899600 | Ferrari Lh Boot Shield Series - 63899600 | Price on request | Contact us for price and availability |
| E | 63899700 | Ferrari RH Boot Shield Series - 63899700 | Price on request | Contact us for price and availability |
| F | 63496300 | Ferrari Rear Heat Shield Set - 63496300 | $367.14 | Special order, ships in 7-14 days |
| 1 | 63854900 | Ferrari Boot Insulation - 63854900 | $783.26 | Special order, ships in 7-14 days |
| 2 | 63761800 | Ferrari Gasket - 63761800 | Price on request | Contact us for price and availability |
| 3 | 63859600 | Ferrari Boot Shield Bracket - 63859600 | $5.00 | Special order, ships in 7-14 days |
| 4 | 60659100 | Ferrari Caged Captive Nut 6mm - 60659100 | $1.72 | Available, ships in 3-6 days |
| 5 | 12647701 | Ferrari Washer - 12647701 | $0.12 | Available, ships in 3-6 days |
| 6 | 10902824 | Ferrari Screw M6 x 30 - 10902824 | $0.17 | Available, ships in 3-6 days |
| 6 | 10902821 | Ferrari Bolt - 10902821 | $0.17 | Available, ships in 3-6 days |
| 7 | 63853500 | Ferrari Boot Shield Bracket - 63853500 | $48.93 | Special order, ships in 7-14 days |
| 8 | 12642878 | Ferrari Washer - 12642878 | $0.19 | Available, ships in 3-6 days |
| 9 | 15687275 | Ferrari Screw 3.5x13 - 15687275 | $0.31 | Available, ships in 3-6 days |
| 10 | 63494800 | Ferrari Heat Shield - 63494800 | Price on request | Contact us for price and availability |
| 11 | 63494900 | Ferrari Heat Shield - 63494900 | Price on request | Contact us for price and availability |
| 12 | 63495000 | Ferrari Heat Shield - 63495000 | Price on request | Contact us for price and availability |
| 13 | 63495100 | Ferrari Heat Shield - 63495100 | Price on request | Contact us for price and availability |
| 14 | 63938600 | Ferrari Spare Wheel Heat Shield - 63938600 | $1,346.25 | Special order, ships in 7-14 days |
| 95880322 | Ferrari Bolt - 95880322 | Price on request | Contact us for price and availability | |
| 63495900 | Ferrari Boot Insulation - 63495900 | $1,150.43 | Special order, ships in 7-14 days | |
| 65809600 | Ferrari LH Boot Heat Shield - 65809600 | Price on request | Contact us for price and availability | |
| 65809400 | Ferrari RH Boot Heat Shield - 65809400 | Price on request | Contact us for price and availability |
