Ferrari 456 GT/GTA — Trunk Hood Insulations -Valid For 456 Gta- (diagram 110)

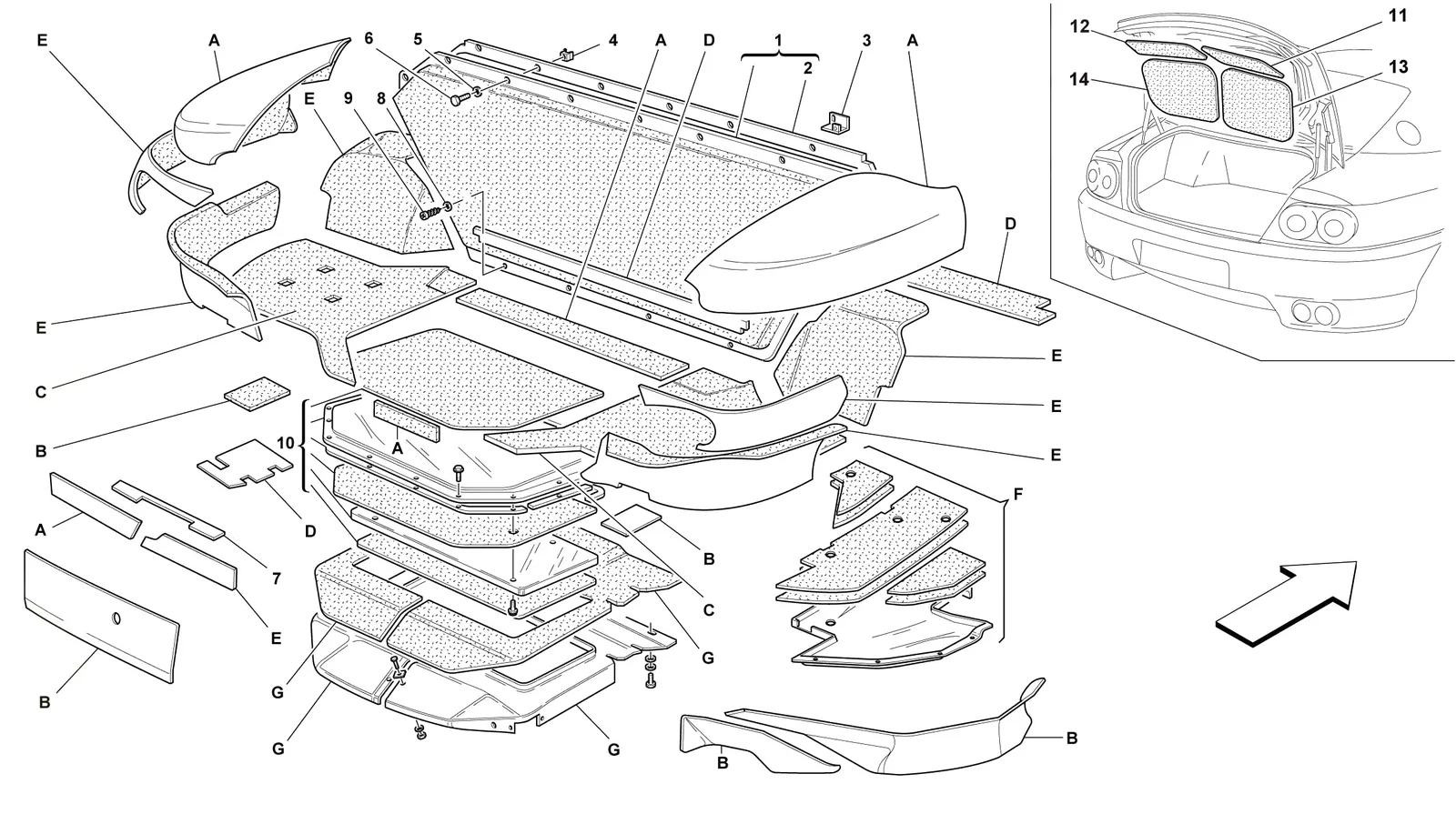

Exploded view of the trunk hood insulations -valid for 456 gta- on the Ferrari 456 GT/GTA, with 30 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| A | 64721600 | Ferrari Heat Shield Set - 64721600 | Price on request | Contact us for price and availability |
| B | 64090300 | Ferrari Heat Shield Set - 64090300 | $489.54 | Special order, ships in 7-14 days |
| B | 64915500 | Ferrari Heat Shield Set - 64915500 | Price on request | Contact us for price and availability |
| C | 63496200 | Ferrari Heat Shield Set - 63496200 | Superseded | Order 63495900 instead |
| D | 64055000 | Ferrari Boot Insulation Set - 64055000 | Price on request | Contact us for price and availability |
| E | 64721500 | Ferrari Heat Shield Set - 64721500 | Price on request | Contact us for price and availability |
| F | 63899600 | Ferrari Lh Boot Shield Series - 63899600 | Price on request | Contact us for price and availability |
| F | 63899700 | Ferrari RH Boot Shield Series - 63899700 | Price on request | Contact us for price and availability |
| G | 64721700 | Ferrari Heat Shield Set - 64721700 | Price on request | Contact us for price and availability |
| 1 | 63854900 | Ferrari Boot Insulation - 63854900 | $783.26 | Special order, ships in 7-14 days |
| 2 | 63761800 | Ferrari Gasket - 63761800 | Price on request | Contact us for price and availability |
| 3 | 63859600 | Ferrari Boot Shield Bracket - 63859600 | $5.00 | Special order, ships in 7-14 days |
| 4 | 60659100 | Ferrari Caged Captive Nut 6mm - 60659100 | $1.72 | Available, ships in 3-6 days |
| 5 | 12647701 | Ferrari Washer - 12647701 | $0.12 | Available, ships in 3-6 days |
| 6 | 10902824 | Ferrari Screw M6 x 30 - 10902824 | $0.17 | Available, ships in 3-6 days |
| 6 | 10902821 | Ferrari Bolt - 10902821 | $0.17 | Available, ships in 3-6 days |
| 7 | 64887200 | Ferrari Heat Shield - 64887200 | Price on request | Contact us for price and availability |
| 8 | 12642878 | Ferrari Washer - 12642878 | $0.19 | Available, ships in 3-6 days |
| 9 | 15687275 | Ferrari Screw 3.5x13 - 15687275 | $0.31 | Available, ships in 3-6 days |
| 10 | 64915300 | Ferrari Luggage Compartment Cover - 64915300 | Price on request | Contact us for price and availability |
| 10 | 65376600 | Ferrari Luggage Compartment Cover - 65376600 | Price on request | Contact us for price and availability |
| 11 | 63494800 | Ferrari Heat Shield - 63494800 | Price on request | Contact us for price and availability |
| 12 | 63494900 | Ferrari Heat Shield - 63494900 | Price on request | Contact us for price and availability |
| 13 | 63495000 | Ferrari Heat Shield - 63495000 | Price on request | Contact us for price and availability |
| 14 | 63495100 | Ferrari Heat Shield - 63495100 | Price on request | Contact us for price and availability |
| 95880322 | Ferrari Bolt - 95880322 | Price on request | Contact us for price and availability | |
| 63495900 | Ferrari Boot Insulation - 63495900 | $1,150.43 | Special order, ships in 7-14 days | |
| 65809600 | Ferrari LH Boot Heat Shield - 65809600 | Price on request | Contact us for price and availability | |
| 65773000 | Ferrari Luggage Cover - 65773000 | Price on request | Contact us for price and availability | |
| 65809400 | Ferrari RH Boot Heat Shield - 65809400 | Price on request | Contact us for price and availability |
